Draper Access XL V – 250", NTSC – 147011

Product Overview

The Draper Access XL V is a large-format, ceiling-recessed, tab-tensioned projection screen built for major venues where a big image and a concealed installation are both required. This 250" NTSC (4:3) model retracts fully into its ceiling case, making it a practical large-format ceiling-recessed projection screen for ballrooms, conference centers, auditoriums, and large university classrooms. As a motorized, tab-tensioned projection screen, it holds a flat viewing surface across a wide image for accurate, distortion-free projection in high-attendance rooms. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access XL V large-venue projection screen extends the Access platform to expansive image sizes while keeping the same discreet, ceiling-recessed integration. The case measures 10-1/8" high x 9-7/16" deep (26 cm x 24 cm) including the trim flange, and supports image widths up to 18' (549 cm), with this unit configured at a 250" NTSC diagonal. The case can be installed during the building phase and the screen added later to reduce the risk of job-site damage, and the screen is fully concealed when retracted for a clean ceiling line. The tab-tensioned design uses RF-welded tabs that eliminate stickiness and tab separation and are warranted against separation for five years, holding the large surface flat and wrinkle-free for a commercial-grade image. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top, and a detachable bottom access panel allows service and maintenance from below the ceiling. This configuration ships with a standard 110V motor and 3-position switch, with low-voltage LVC-IV and 220V options available for integration with third-party control systems such as Crestron and Control4. Pair it with a unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Large-format image sizes — Supports image widths up to 18' (549 cm) for ballrooms, auditoriums, and large conference centers.
• Ceiling-recessed concealment — The screen retracts fully into the ceiling case for a clean, finished appearance when the system is not in use.
• RF-welded tab-tensioning — RF-welded tabs eliminate stickiness and tab separation and are warranted against separation for five years, keeping the large surface flat.
• Early case installation — The case installs during the building phase with the screen added later to reduce the risk of job-site damage.
• Bottom access panel — A detachable bottom panel allows service and maintenance from below the ceiling without removing the case.
• Standard 110V motor — Ships with a 110V motor and 3-position switch; low-voltage LVC-IV and 220V motor options are available.
• Control-system ready — Low-voltage and video-interface control options integrate with Crestron, Control4, and other third-party automation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

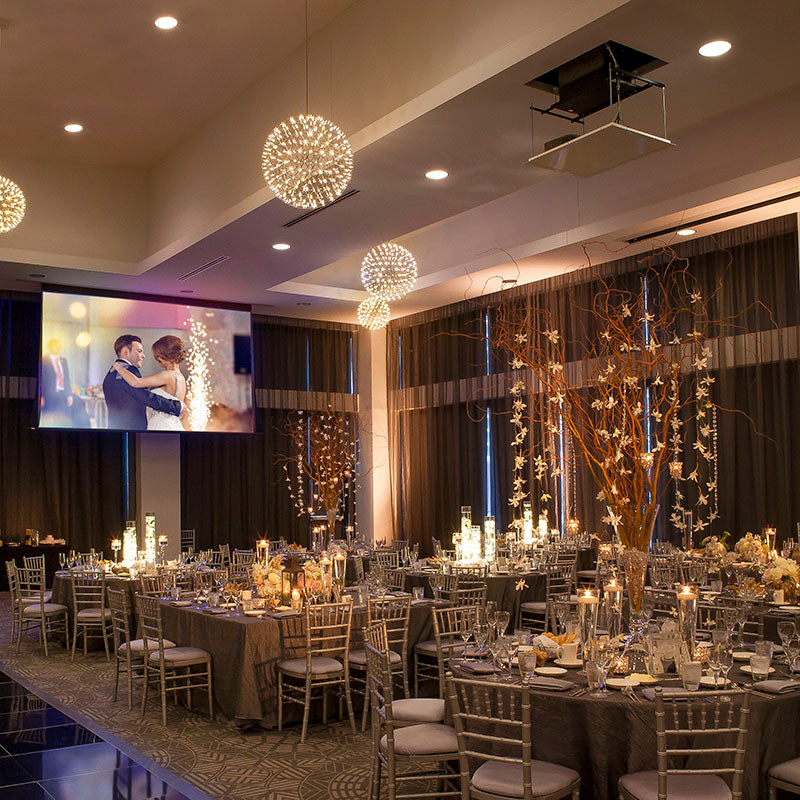

• Ballrooms and hotel conference centers requiring a large concealed screen

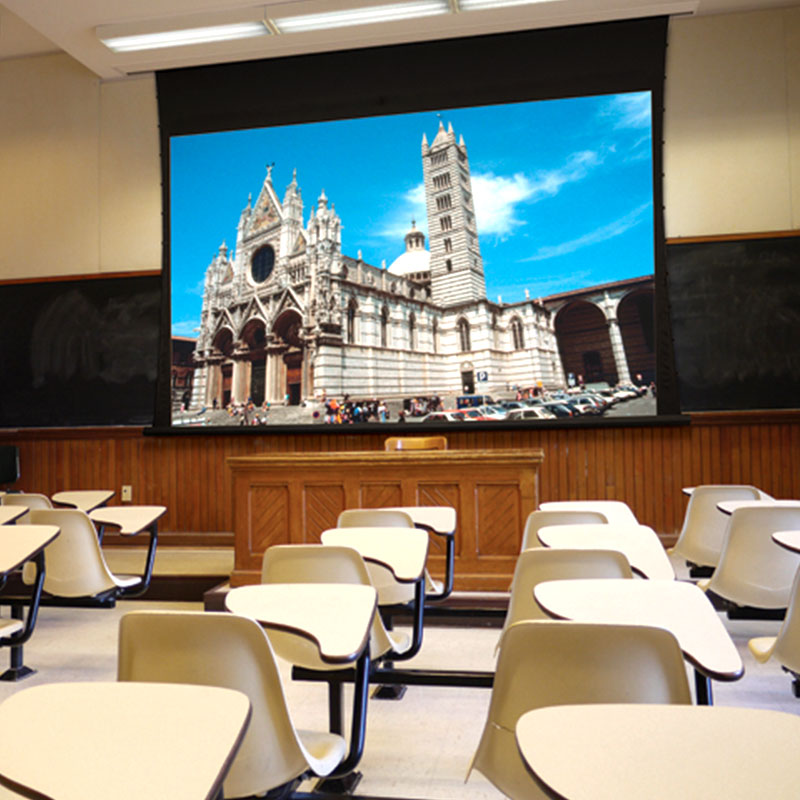

• Auditoriums and large lecture halls
• Higher-education classrooms and multi-purpose rooms in large venues
• Corporate all-hands and general-session rooms
• Government and commercial assembly spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How large an image does the Access XL V support?

The Access XL V supports image widths up to 18' (549 cm), which is why it is used in ballrooms, auditoriums, and large conference centers. This unit is configured at a 250" NTSC (4:3) diagonal; custom sizes within the model maximum are available.

What keeps such a large surface flat?

The screen is tab-tensioned with RF-welded tabs that eliminate stickiness and tab separation. Draper warrants the tabs against separation for five years, keeping the large image flat and wrinkle-free.

Can the case be installed during construction?

Yes. The case can be installed during the building phase and the screen added later, reducing the risk of job-site damage to the viewing surface.

What motor and control options are available?

This unit ships with a standard 110V motor and 3-position switch. Low-voltage LVC-IV and 220V motors are available, and controls can be integrated with Crestron, Control4, and other third-party systems.

What projectors and mounts are compatible?

It works with commercial front projectors and large-venue lifts matched to a 250" NTSC image and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Access XL V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
