Draper Access XL V – 248", HDTV – 147013U

Product Overview

The Draper Access XL V is a large-format, ceiling-recessed tab-tensioned projection screen built for large venues that demand a perfectly flat image and complete concealment when retracted. This 248" diagonal HDTV (16:9) model is engineered for ballrooms, conference centers, and large university classrooms where image quality across a wide surface is critical. As a Series V screen, it uses tab-tensioning with RF-welded tabs to hold the viewing surface flat and wrinkle-free, driven by a quiet tubular motor. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access XL V tab-tensioned projection screen is specified by integrators and AV system designers who need large-format front projection with a flat, distortion-free surface. Unlike a free-hanging screen, the Access XL V is tab-tensioned: RF-welded tabs along both edges pull the surface flat and eliminate the ripple and edge curl that can appear on large surfaces, which keeps geometry accurate for detailed content and widescreen video. The RF-welded tabs eliminate stickiness and tab separation and are warranted against separation for five years. The steel case installs during the initial construction phase so the screen can be added later, reducing the risk of job-site damage on long commercial builds. The case measures 10-1/8" high by 9-7/16" deep including the trim flange, and the model supports a maximum image width up to 18' (549 cm), with custom sizes and a 21:9 ultrawide format available. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area for correct image placement. Sliding brackets on top of and inside the case allow the installer to adjust mounting points and accommodate different screen sizes, and a detachable bottom access panel keeps the motor serviceable from below the finished ceiling. The screen ships standard with a 110V tubular motor and 3-position switch, with quiet, low-voltage (LVC-IV), and 220V options for room-control integration, and is offered in Draper's TecVision and standard viewing surfaces including ambient-light-rejecting options. Pair the Access XL V with a compatible unit from our commercial projectors collection and a mount from our projector mounts and lifts collection to complete the large-venue system. Browse the full Draper projection screen lineup for other sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for surface selection, throw-distance planning, and freight coordination on large-format orders.

Key Features

• Tab-tensioned Series V surface — RF-welded tabs hold the large viewing surface flat and wrinkle-free for accurate geometry across the full image.
• RF-welded tabs warranted five years — The welded tabs eliminate stickiness and tab separation and are warranted against separation for five years.
• Large-format image — Supports a maximum image width up to 18' (549 cm), with custom sizes and a 21:9 ultrawide format available.
• Ceiling-recessed concealment — The screen retracts fully into its above-ceiling housing so the room stays clean and finished when projection is not in use.
• Framed image with black drop — The image area is fully framed in black with a standard 12" (30 cm) black drop at the top for correct placement.
• Early case installation — The case can be mounted during construction and the screen added later to prevent job-site damage on large projects.
• Flexible motor and control options — Ships with a 110V motor and 3-position switch, with quiet, low-voltage (LVC-IV), and 220V options for AV system integration.
• UL Listed with a 5-year warranty — Supplied by Creation Networks as an authorized Draper dealer with full manufacturer warranty coverage.

Typical Applications

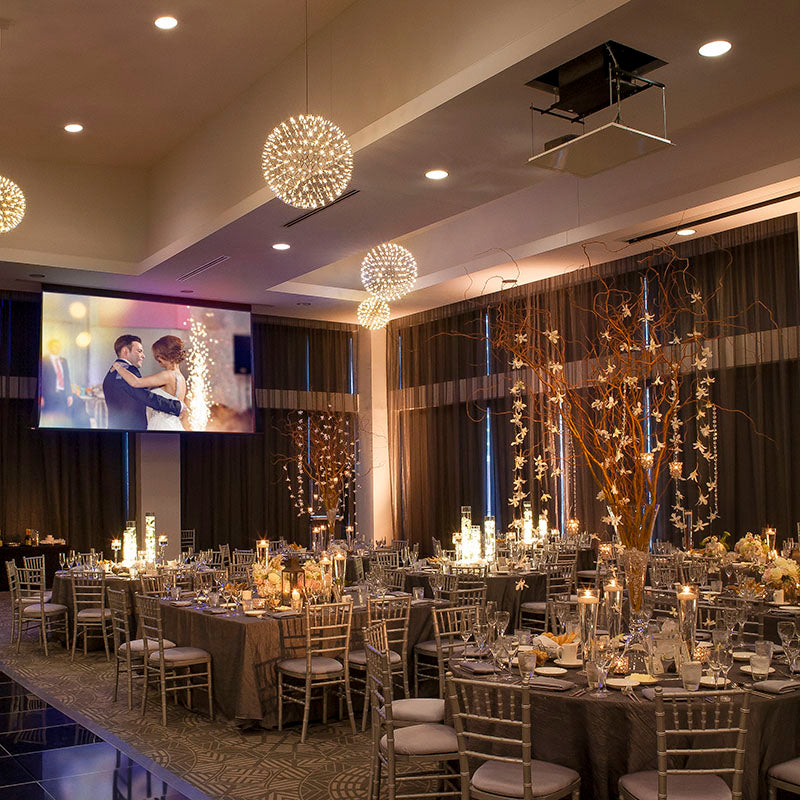

• Hotel ballrooms and conference centers requiring a large, flat concealed image

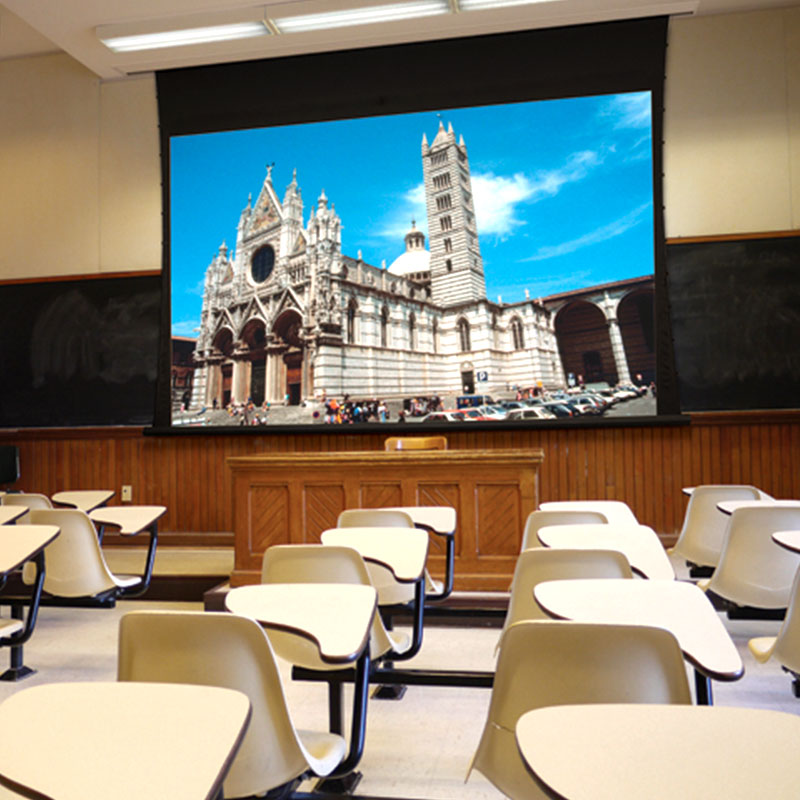

• Large university lecture halls and auditoriums
• Broadcast and presentation stages where image geometry is critical
• Multi-purpose rooms and all-hands spaces with high ceilings
• Government and civic assembly spaces specifying recessed AV infrastructure

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and motor/voltage options with Creation Networks before ordering.

Frequently Asked Questions

What makes the Access XL V tab-tensioned, and why does it matter?

The Access XL V is a Series V screen that uses tab-tensioning: RF-welded tabs along both edges pull the surface flat and eliminate the ripple and edge curl that can appear on large free-hanging surfaces. This keeps image geometry accurate, which matters for detailed content and widescreen video on a large image.

What venues is the Access XL V designed for?

It is a large-format screen intended for ballrooms, conference centers, large university classrooms, and presentation or broadcast stages where a big, flat, concealed image is required.

What projectors and mounts are compatible?

The Access XL V works with high-output commercial front projectors matched to its 248" HDTV (16:9) format and the room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What viewing surfaces are available?

The Access XL V is offered in Draper's TecVision engineered surfaces, including ambient-light-rejecting (ALR) options, as well as standard white and grey surfaces. Contact Creation Networks to match a surface to your projector output and room lighting.

Can the case be installed before the screen?

Yes. The case is designed to install during the initial construction phase, with the tab-tensioned screen added later to reduce the risk of job-site damage on large commercial builds.

What warranty and support are included?

The Access XL V carries Draper's standard 5-year warranty, with the RF-welded tabs warranted against separation for five years, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
