Draper Access V, 94", 16:10, Matt White XT1000VB, 110 V, with Quiet Motor - 140111Q
Draper Access V, 94", 16:10, Matt White XT1000VB, 110 V, with Quiet Motor - 140111Q is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access V, 94", 16:10, Matt White XT1000VB, 110 V, with ...
Product Overview

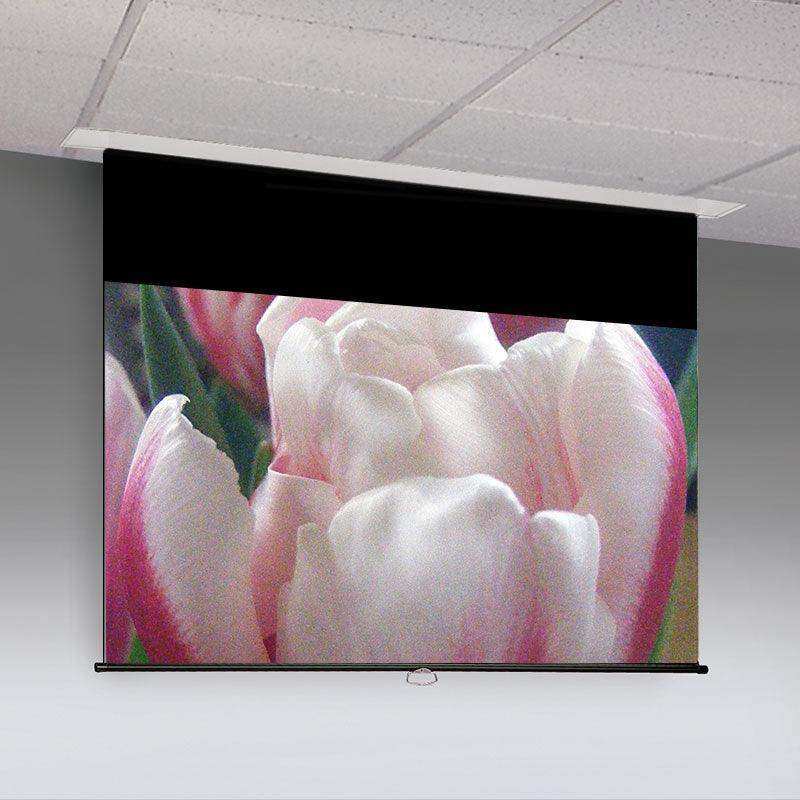

The Draper Access V (140111Q) is a motorized, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 94" 16:10 image area with the Matt White XT1000VB viewing surface and includes the Quiet Motor for low-noise operation. The tab-tensioning system maintains a flat, uniform image plane. LVC-IV is available as a factory-built option. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
The Access V uses Draper’s tab-tensioning system to keep the screen surface taut. At 94" diagonal in the 16:10 format, this screen suits smaller conference rooms and executive meeting spaces where quiet screen operation is required. The Quiet Motor reduces operating noise for acoustically sensitive environments.
Key Features
- Matt White XT1000VB viewing surface — 1.0 gain, tab-tensioned for flat image geometry.
- 94" 16:10 format — Compact widescreen for smaller conference rooms and executive meeting spaces.
- Tab-tensioning system — Maintains flat, uniform image plane.
- Quiet Motor — Reduced operating noise for acoustically sensitive environments.
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
- LVC-IV optional — Factory-built AV control system integration available.
Typical Applications
- Smaller conference room requiring quiet screen operation
- Executive huddle room
- Corporate meeting space
- University seminar room
- Government meeting room
- Hospitality AV installation
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access V (140111Q) |
| Image Format | 16:10 |
| Diagonal Image Size | 94" |
| Viewing Surface | Matt White XT1000VB |
| Tensioning | Tab-tensioned |
| Motor Voltage | 110V |
| Included Control | 110–120V 3-position switch + Quiet Motor |
| Optional Controls | LVC-IV Low Voltage Controller — factory-built |
| Case Rating | Plenum-rated |
Frequently Asked Questions
Can I add LVC-IV?
Yes. Order 140111QU for Quiet Motor + LVC-IV.
What is the difference between Access V and Access E?
The Access V uses a tab-tensioning system that keeps the screen surface taut, ensuring flat image geometry from edge to edge.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
