Draper Access V, 92", HDTV, Matt White XT1000VB, 110 V, with LVC-IV Low Voltage Controller - 140106U

Product Overview

The Draper Access V with Matt White XT1000VB surface is a motorized, ceiling-recessed tab-tensioned projection screen for commercial AV installations requiring full ceiling concealment and a versatile, high-performance viewing surface. The Matt White XT1000VB is Draper's standard reference white surface with a 1.0 gain—delivering accurate, neutral brightness across a wide viewing angle—making it the most broadly applicable surface in the Access V lineup. It performs reliably across conference rooms, training facilities, boardrooms, and multipurpose spaces with a controlled projection environment. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.

Product Description

The Matt White XT1000VB surface delivers a 1.0 gain with wide-angle, spectrally neutral reflectivity, making it the default choice for commercial AV installers specifying an Access V without a specialized ambient light, contrast, or acoustic transparency requirement. The surface works well with a broad range of commercial projectors across throw distances and lumen ratings typical in corporate environments.

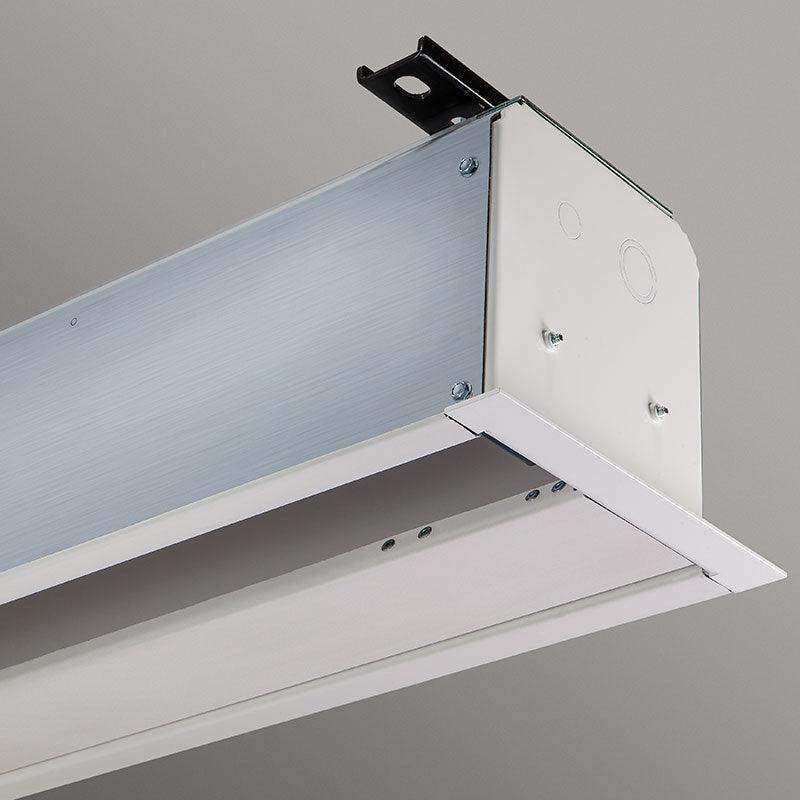

The Access V housing provides full ceiling recessing for complete screen concealment when retracted. The bottom flange trims the ceiling opening cleanly without additional millwork, and the motor-in-roller design keeps all mechanical components fully contained inside the housing. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction before ceilings are closed. The Matt White XT1000VB screen assembly is stored safely off-site and snapped into preset latching roller brackets and pin connectors when the space is ready for AV commissioning.

The single-piece RF-welded tab-tensioning system maintains a consistently flat image plane across the full screen width. Tabs are warranted against separation for five years. The optional Quiet Motor reduces operational noise in meeting-sensitive environments. The optional LVC-IV Low Voltage Controller enables dry-contact integration with Crestron, Extron, AMX, Control4, and other AV control platforms. Both options must be specified at time of order. Custom sizes and 220V motor are available.

Key Features

• Matt White XT1000VB Viewing Surface (1.0 Gain) — Standard reference white surface; spectrally neutral with wide-angle reflectivity for a broad range of commercial AV applications.
• Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening for clean architectural finish.
• Tab-Tensioned, RF-Welded System — Flat, uniform image plane across full screen width; tabs warranted 5 years against separation.
• Case-Now, Screen-Later Installation — Housing installs during rough-in construction; screen assembly clicks in later to prevent job site damage.
• Compact Case Profile — 7-3/8" H × 8-1/16" D; fits standard above-ceiling construction without custom framing.
• Quiet Motor Option — Reduces operational noise in meeting-sensitive environments.
• LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
• Plenum-Rated, UL-Listed Housing — Approved for environmental air-handling ceiling spaces.
• Multiple Format Options — HDTV 16:9, 16:10 WUXGA, NTSC 4:3, and 21:9 Ultrawide formats.

Typical Applications

• Boardroom
• Conference room
• Training room
• Multipurpose room
• House of worship
• Auditorium

Technical Specifications

Frequently Asked Questions

Is the Matt White XT1000VB surface a good general-purpose choice?
Yes. The 1.0 gain spectrally neutral surface is the standard reference choice for commercial AV and works with the widest range of projectors and environments.

Can the LVC-IV controller integrate with Crestron or Extron?
Yes. The LVC-IV accepts dry-contact low-voltage inputs compatible with Crestron, Extron, AMX, Control4, and other building automation systems. Specify at time of order.

Is the Access V housing plenum-rated?
Yes. UL Listed as Suitable for Use in Environmental Air Space, meeting plenum-rating requirements for commercial air-handling ceiling spaces.

Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.

What warranty covers the Access V?
One-year warranty on materials and workmanship; five-year warranty on the RF-welded tab-tensioning system against separation.
