Draper Access V, 240", NTSC, Matt White XT1000VB, 110 V - 140024
Product Overview
The Draper Access V with Matt White XT1000VB surface is a motorized, ceiling-recessed tab-tensioned projection screen for commercial AV installations requiring full ceiling concealment and a versatile, high-performance viewing surface. The Matt White XT1000VB is Draper's standard reference white surface with a 1.0 gain—delivering accurate, neutral brightness across a wide viewing angle—making it the most broadly applicable surface in the Access V lineup. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.
Product Description
The Matt White XT1000VB surface delivers a 1.0 gain with wide-angle, spectrally neutral reflectivity, making it the default choice for commercial AV installers specifying an Access V without a specialized ambient light, contrast, or acoustic transparency requirement. The Access V housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction; the Matt White XT1000VB screen assembly snaps into preset latching roller brackets when the space is ready for AV commissioning. The single-piece RF-welded tab-tensioning system maintains a consistently flat image plane, with tabs warranted for five years against separation. Optional Quiet Motor and LVC-IV Low Voltage Controller must be specified at time of order.
Key Features
- Matt White XT1000VB Viewing Surface (1.0 Gain) — Standard reference white; wide-angle, spectrally neutral reflectivity.

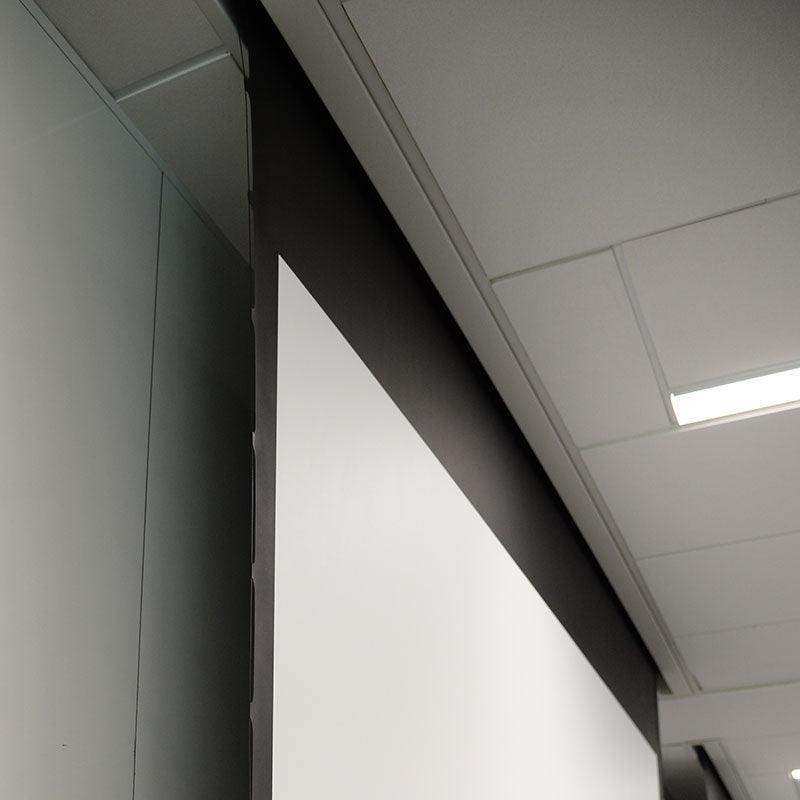

- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening cleanly.
- Tab-Tensioned, RF-Welded System — Flat image plane; tabs warranted 5 years against separation.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Conference room
- Training room
- Boardroom
- Multipurpose room
- House of worship
- Auditorium
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | Matt White XT1000VB |
| Surface Gain | 1.0 |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
Is the Matt White XT1000VB the right general-purpose surface?
Yes. The 1.0 gain spectrally neutral surface works with the widest range of projectors and environments.
Can the LVC-IV integrate with Crestron or Extron?
Yes. Specify at time of order to have it built into the housing.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
