Draper Access V, 226", 16:10, Matt White XT1000VB, 110 V, with LVC-IV Low Voltage Controller - 140043U
Draper Access V, 226", 16:10, Matt White XT1000VB, 110 V, with LVC-IV Low Voltage Controller - 140043U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access V, 226", 16:10, Matt White XT1000VB, 110 V, with...
Product Overview

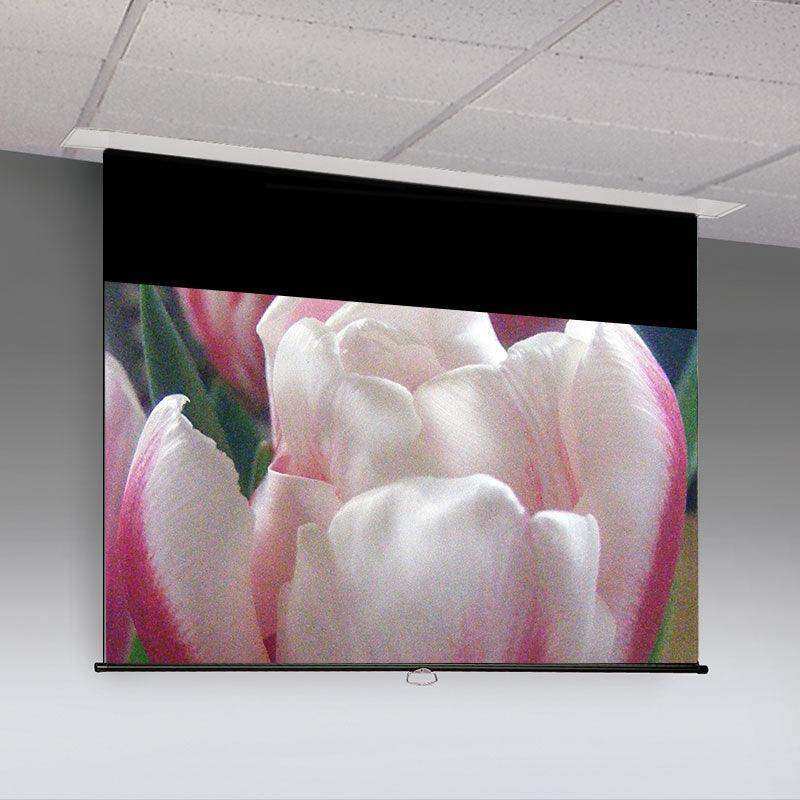

The Draper Access V (140043U) is a motorized, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 226" 16:10 image area with the Matt White XT1000VB viewing surface and includes the LVC-IV Low Voltage Controller for AV control system integration. The tab-tensioning system maintains a flat, uniform image plane. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
The Access V uses Draper’s tab-tensioning system to keep the screen surface taut. At 226" diagonal in the 16:10 format, this is one of Draper’s largest ceiling-recessed motorized screens, suited for auditoriums and large venues with AV control system requirements. The LVC-IV enables integration with Crestron, Extron, AMX, Control4, and other commercial AV platforms.
Key Features
- Matt White XT1000VB viewing surface — 1.0 gain, tab-tensioned for flat image geometry.
- 226" 16:10 format — Largest Access V widescreen for auditoriums and large venues.
- Tab-tensioning system — Maintains flat, uniform image plane at maximum scale.
- LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4.
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Case now, screen later installation — Housing installs during rough-in; screen drops in later.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
Typical Applications
- Large auditorium with AV control system
- Conference center with Crestron or Extron infrastructure
- University large lecture hall
- Government assembly room
- Houses of worship
- Commercial event space
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access V (140043U) |
| Image Format | 16:10 |
| Diagonal Image Size | 226" |
| Viewing Surface | Matt White XT1000VB |
| Tensioning | Tab-tensioned |
| Motor Voltage | 110V |
| Included Control | 110–120V 3-position switch + LVC-IV |
| Compatible Control Systems | Crestron, Extron, AMX, Control4, and others via low-voltage |
| Case Rating | Plenum-rated |
Frequently Asked Questions
What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms with low-voltage relay or RS-232 outputs.
What is the difference between Access V and Access E?
The Access V uses a tab-tensioning system that keeps the screen surface taut, ensuring flat image geometry from edge to edge.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
