Draper Access V, 226", 16:10, CineFlex CH1200V, 110 V, with LVC-IV Low Voltage Controller - 140043CBU

Product Overview

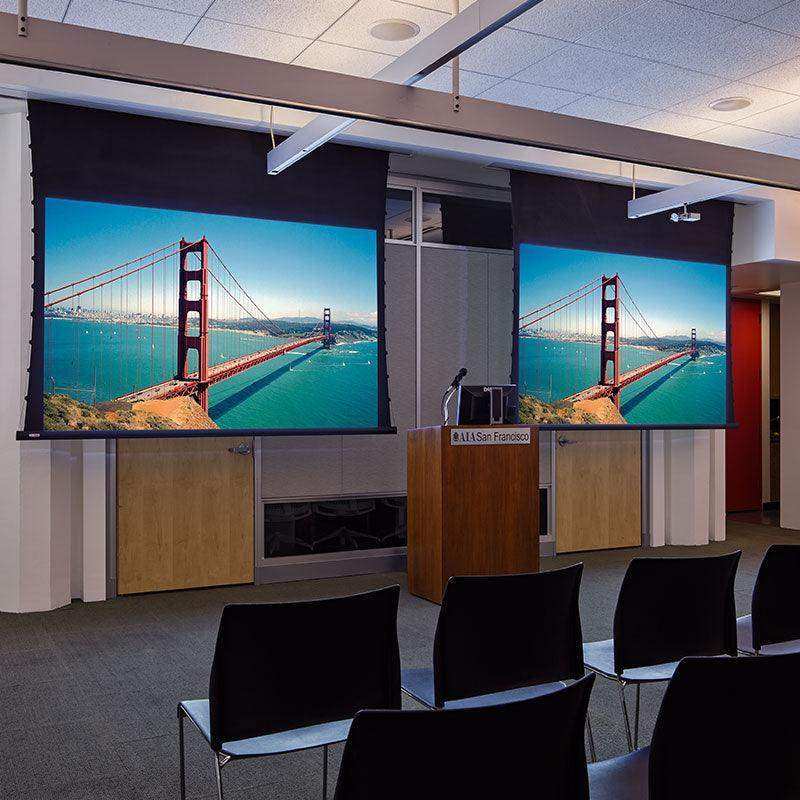

The Draper Access V is a motorized, tab-tensioned projection screen designed for ceiling-recessed installation in commercial AV environments. This configuration features a 226" 16:10-format image area with the CineFlex CH1200V viewing surface — a 1.2-gain ambient-light-resistant material suited for boardrooms, training rooms, and corporate spaces where some ambient light is present. The 110V motor includes the LVC-IV Low Voltage Controller for integration with Crestron, Control4, Extron, AMX, and other commercial AV control systems. The 16:10 aspect ratio matches common laptop and desktop display resolutions, and the plenum-rated case is UL-listed for use in air-handling ceiling spaces.

Product Description

The Access V has been Draper's benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The "case now, screen later" installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching roller brackets and electrical pin connectors once the case is in place.

The CineFlex CH1200V surface provides a 1.2 gain with ambient-light-resistant characteristics, making it appropriate for 16:10 widescreen installations in spaces where full blackout conditions are not achievable — corporate rooms with exterior windows or variable lighting. Draper's tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness across the 226" image area and is warranted against separation for five years. The bottom access panel redesign allows service access without removing the case from the ceiling.

The plenum-rated case meets UL requirements for air-handling ceiling spaces. Built-in control options can be factory-installed. The case accommodates screens up to 20" wider than the standard case length. Custom sizes within the 16' maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen hidden above the ceiling tile when retracted.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex CH1200V viewing surface — 1.2 gain, ambient-light-resistant; suited for rooms with windows or variable ambient lighting where full blackout is not achievable.
• 226" 16:10 format — Widescreen aspect ratio matching laptop and desktop display resolutions; ideal for computer-based presentations in corporate environments.
• LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4, and other commercial AV control platforms.
• Motor-in-roller design — Quiet, smooth operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as "Suitable for Use in Environmental Air Space."
• 5-year tab tensioning warranty — Single-piece RF-welded tabs warranted against separation for five years.
• Bottom access panel — Redesigned hinge for easy service access without case removal.
• Quick-connect wiring — Pin-based connections allow case rough-in before screen installation.
• White case standard, black available — Accommodates light and dark ceiling environments.
• Custom sizes available — Within the 16' (488 cm) maximum image width.

Typical Applications

• Boardroom and large conference room
• Corporate training room
• University lecture hall
• Government and military briefing room
• Multi-purpose room with variable ambient lighting
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

When is the CineFlex CH1200V a better choice than the XT700V for a 16:10 screen?
The CH1200V (1.2 gain, ambient-light-resistant) is preferred when the room has windows, skylights, or lighting that cannot be fully dimmed during presentations. The XT700V (0.7 gain, 180° viewing angle) is better in controlled-ambient rooms where a wide viewing cone is the priority.

What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms that output low-voltage relay or RS-232 signals. No proprietary gateway required.

Can the case be installed before the screen arrives?
Yes. The case installs during construction rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as "Suitable for Use in Environmental Air Space."

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16' (488 cm) maximum image width. Contact Creation Networks for pricing.
