Draper Access V, 220", NTSC, Grey XH600V, 110 V - 140023FB

Product Overview

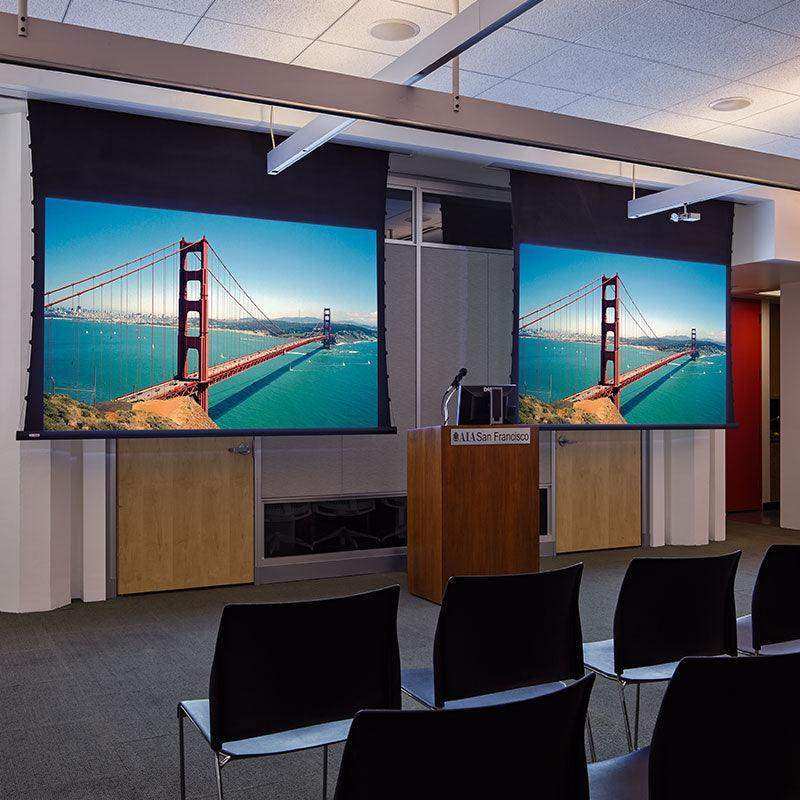

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 220" NTSC (4:3) image area with the Grey XH600V viewing surface — a grey diffuse material engineered for enhanced image contrast in rooms with significant ambient light. The 110V motor uses a standard 3-position wall switch; the LVC-IV Low Voltage Controller and quiet motor are available as factory-built options. The 4:3 NTSC format accommodates legacy video sources, document cameras, and rooms with mixed-format content. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The Grey XH600V surface is specified when contrast is the priority over raw brightness in a 4:3 room with uncontrolled ambient light. The grey diffuse coating absorbs ambient light while reflecting projector output, improving perceived contrast ratio in training rooms and government facilities with legacy content and variable lighting. At 220" diagonal in the NTSC 4:3 format, this is one of the largest 4:3 configurations in the Access V lineup — suited for spaces where document cameras, legacy video, and ambient light coexist. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The standard 3-position wall switch provides reliable up/down/stop motor control. For rooms requiring AV control system integration, the LVC-IV and quiet motor options can be factory-built into the case. The plenum-rated case meets UL requirements for air-handling spaces, and custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• Grey XH600V viewing surface — Grey diffuse material that improves image contrast in rooms with significant ambient light.
• 220" NTSC (4:3) format — Traditional square aspect ratio for legacy video sources, document cameras, and rooms with mixed-format AV equipment.
• Standard 3-position motor switch — 110–120V wall switch for up/down/stop; LVC-IV and quiet motor available factory-built.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Government facility with significant ambient light and 4:3 AV sources
• Large training room with limited lighting control and legacy equipment
• University classroom with document camera and variable ambient
• Multi-purpose room with fixed overhead lighting and mixed content
• Renovation project with ambient light constraints
• Corporate meeting room with legacy AV equipment

Technical Specifications

Frequently Asked Questions

When should I specify Grey XH600V for a 220" NTSC screen?
The Grey XH600V is the right choice when the room has significant ambient light that cannot be eliminated — fixed overhead lighting, large windows, or skylights. The grey diffuse material absorbs ambient light while reflecting projector output, producing better perceived contrast than a white surface under the same conditions.

Can I add LVC-IV low voltage control to this configuration?
Yes. The LVC-IV Low Voltage Controller and quiet motor are factory-installable at time of order. Contact Creation Networks to specify the control option needed.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
