Draper Access V, 220", HDTV, CineFlex White XT700V, 110 V, with LVC-IV Low Voltage Controller - 140034CDU

Product Overview

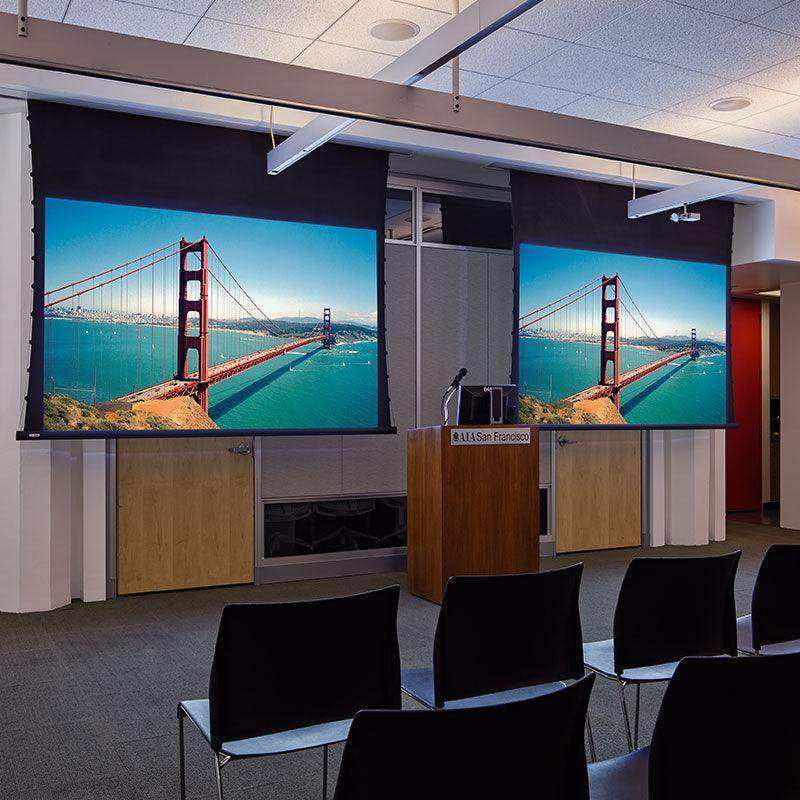

The Draper Access V is a motorized, tab-tensioned projection screen designed for ceiling-recessed installation in commercial AV environments. This configuration features a 220" HDTV (16:9) format image area with a CineFlex White XT700V viewing surface, 110V motor, and the LVC-IV Low Voltage Controller for integration with Crestron, Control4, Extron, AMX, and other third-party AV control systems. The HDTV 16:9 format is the native widescreen standard for video conferencing systems, modern projectors, and digital content, making this configuration a natural fit for boardrooms, training rooms, and commercial conference spaces. The plenum-rated case is UL-listed for use in air-handling ceiling spaces.

Product Description

The Access V has been Draper's benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The "case now, screen later" installation method allows the housing to be set during construction rough-in, protecting the screen surface from jobsite damage until finish AV work. The motor-in-roller assembly drops in via preset latching roller brackets and electrical pin connectors once the case is in place.

The CineFlex White XT700V surface delivers a 0.7 gain with a 180° viewing angle — well suited for large HDTV-format installations in controlled-ambient rooms where the audience spans a wide seating range. At 220" diagonal in HDTV format, this screen is appropriate for high-capacity conference spaces, training rooms, and mid-size auditoriums where widescreen video content is the primary use case. Draper's tab-tensioning system maintains surface flatness across the full image area and is warranted against separation for five years.

The LVC-IV Low Voltage Controller enables integration with commercial AV control systems via low-voltage signal, without requiring 110V switching at the control device. The plenum-rated case meets UL requirements for air-handling ceiling spaces. Built-in control options can be factory-installed in the case. The case accommodates screens up to 20" wider than the standard case length, and custom sizes within the 16' maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen hidden above the ceiling tile when retracted; visible only when deployed.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex White XT700V viewing surface — 0.7 gain, 180° viewing angle; wide viewing cone for controlled-ambient rooms with broad audience seating.
• 220" HDTV (16:9) format — Native widescreen HD format; optimal for video conferencing, streaming content, and modern widescreen presentations in boardrooms and training rooms.
• LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4, and other commercial AV control platforms via low-voltage signal.
• Motor-in-roller design — Quiet, smooth operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as "Suitable for Use in Environmental Air Space."
• 5-year tab tensioning warranty — Single-piece RF-welded tabs warranted against separation for five years.
• Bottom access panel — Redesigned hinge for easy service access; hangs open or detaches fully.
• Quick-connect wiring — Pin-based connections allow case rough-in before screen installation.
• White case standard, black available — Accommodates light and dark ceiling environments.
• Custom sizes available — Within the 16' (488 cm) maximum image width.

Typical Applications

• Boardroom and large conference room
• Corporate training room
• University lecture hall
• Government and military briefing room
• Commercial multi-purpose room
• Mid-size auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

Why choose HDTV 16:9 for a boardroom or training room?
The HDTV 16:9 format is native to most modern projectors, video conferencing cameras, and digital content sources. Using a native-format screen eliminates image scaling artifacts and makes the best use of the projector's resolution, particularly important at large image sizes like 220".

What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms that output low-voltage relay or RS-232 signals. No proprietary gateway required.

Can the case be installed before the screen arrives?
Yes. The case installs during construction rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as "Suitable for Use in Environmental Air Space."

What is the CineFlex White XT700V surface best suited for?
The XT700V (0.7 gain, 180° viewing angle) is designed for controlled-ambient rooms where the audience spans a wide seating range. It works well with projectors of moderate to high lumen output at large image sizes.

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16' (488 cm) maximum image width. Contact Creation Networks for pricing.
