Draper Access V, 220", HDTV, CineFlex CH1200V, 110 V - 140034CB

Product Overview

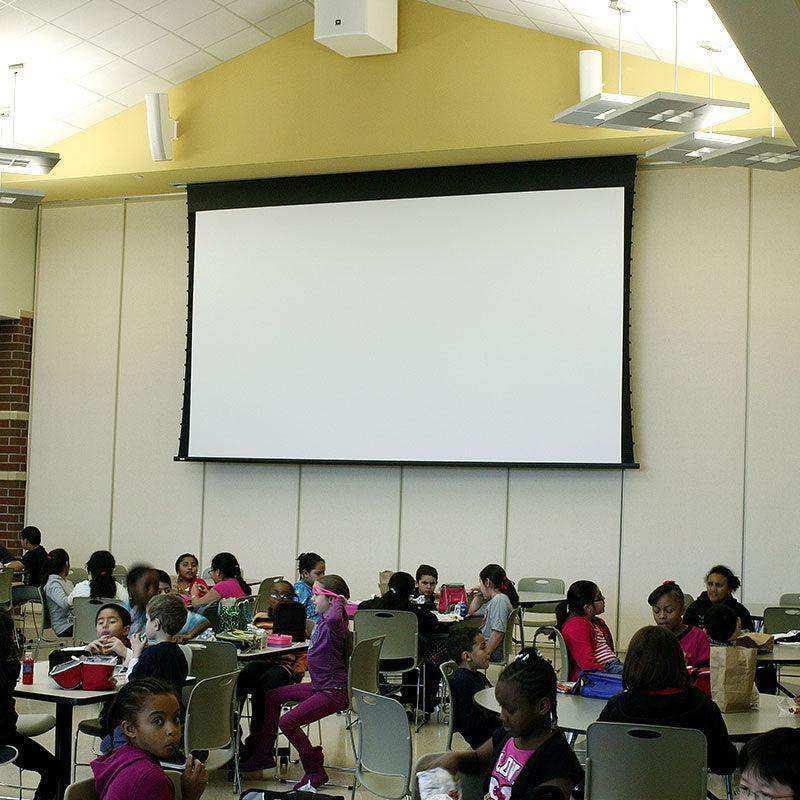

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 220" HDTV (16:9) image area with the CineFlex CH1200V surface — a 1.2-gain ambient-light-resistant material suited for conference rooms and training spaces where ambient light cannot be fully controlled. The 110V motor uses a standard 3-position wall switch; the LVC-IV Low Voltage Controller and quiet motor are available as factory-built options. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The CineFlex CH1200V delivers 1.2 gain with ambient-light-resistant characteristics — the right choice for HDTV installations in rooms with exterior windows or variable overhead lighting. At 220" diagonal in the native 16:9 format, this screen is appropriate for large boardrooms, conference centers, and training rooms where widescreen video is the primary content format and room lighting cannot be fully dimmed. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The standard 3-position wall switch provides reliable up/down/stop motor control. For rooms requiring AV control system integration, the LVC-IV and quiet motor options can be factory-built into the case. The plenum-rated case meets UL requirements for air-handling spaces, and custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex CH1200V viewing surface — 1.2 gain, ambient-light-resistant; suited for rooms with windows or variable ambient lighting where full blackout is not achievable.
• 220" HDTV (16:9) format — Native widescreen format for video conferencing, streaming content, and modern digital presentations.
• Standard 3-position motor switch — 110–120V wall switch for up/down/stop; LVC-IV and quiet motor available factory-built.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Boardroom with exterior windows and widescreen content
• Corporate training room with variable ambient lighting
• University lecture hall with natural light
• Government briefing room
• Commercial multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

When should I choose CH1200V over XT700V for a 220" HDTV screen?
Choose the CH1200V (1.2 gain, ambient-light-resistant) when the room has windows or overhead lighting that cannot be fully controlled. Choose the XT700V (0.7 gain, 180° viewing angle) for controlled-ambient rooms where a wider viewing cone is the priority.

Can I add LVC-IV low voltage control to this configuration?
Yes. The LVC-IV Low Voltage Controller and quiet motor are factory-installable at time of order. Contact Creation Networks to specify the control option needed.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
