Draper Access V, 210", NTSC, CineFlex CH1200V, 110 V, with LVC-IV Low Voltage Controller - 140022CBU

Product Overview

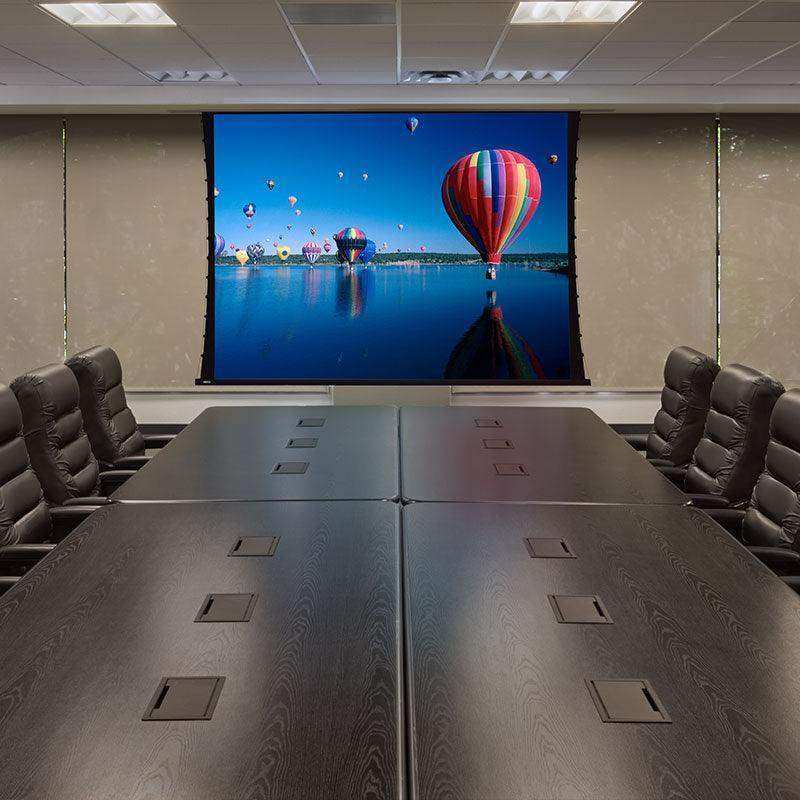

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 210" NTSC (4:3) image area with the CineFlex CH1200V surface — a 1.2-gain ambient-light-resistant material suited for 4:3-format rooms where ambient light cannot be fully controlled. The LVC-IV Low Voltage Controller enables direct integration with Crestron, Control4, Extron, AMX, and other commercial AV platforms. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The CineFlex CH1200V delivers 1.2 gain with ambient-light-resistant characteristics — suited for NTSC 4:3 installations in rooms with windows or overhead lighting that cannot be dimmed. At 210" diagonal in the 4:3 format, this screen suits training rooms, government facilities, and multi-purpose spaces where legacy video sources and document camera content are displayed and ambient light is present. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The LVC-IV controller enables low-voltage integration with commercial AV control systems without requiring 110V switching at the control device. The plenum-rated case meets UL requirements for air-handling spaces, and built-in control options can be factory-installed. Custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex CH1200V viewing surface — 1.2 gain, ambient-light-resistant; suited for rooms with windows or variable ambient lighting where full blackout is not achievable.
• 210" NTSC (4:3) format — Traditional square aspect ratio for legacy video sources, document cameras, and rooms with mixed-format AV equipment.
• LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4, and other commercial AV control platforms.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Training room with ambient light and legacy AV sources
• Government facility with exterior windows and 4:3 content
• University classroom with variable ambient conditions
• Multi-purpose room with mixed-format content and ambient light
• Renovation project with ambient light constraints
• Corporate meeting room with varied source types

Technical Specifications

Frequently Asked Questions

When is CH1200V the right surface for a 210" NTSC screen?
The CH1200V (1.2 gain, ambient-light-resistant) is suited for rooms where windows or overhead lighting cannot be controlled. For controlled-ambient rooms where off-axis viewing coverage is the priority, the XT700V (0.7 gain, 180° viewing angle) is the better choice.

What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms with low-voltage relay or RS-232 outputs. No proprietary gateway required.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
