Draper Access V, 198", 16:10, CineFlex White XT700V, 110 V - 140042CD

Product Overview

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 198" 16:10 image area with the CineFlex White XT700V surface — a 0.7-gain matte white material with a 180° viewing angle, suited for controlled-ambient rooms with wide audience seating. The 110V motor uses a standard 3-position wall switch; the LVC-IV Low Voltage Controller and quiet motor are available as factory-built options. The 16:10 aspect ratio matches common laptop and desktop display resolutions. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The CineFlex White XT700V delivers 0.7 gain with a 180° viewing angle — suited for large-format 16:10 installations in controlled-ambient boardrooms and training rooms where audience seating spans a wide area. At 198" diagonal, this screen accommodates laptop-sourced widescreen content without letterboxing. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The standard 3-position wall switch provides reliable up/down/stop motor control. For rooms requiring AV control system integration, the LVC-IV and quiet motor options can be factory-built into the case. The plenum-rated case meets UL requirements for air-handling spaces, and custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex White XT700V viewing surface — 0.7 gain, 180° viewing angle; wide viewing cone for controlled-ambient rooms with broad audience seating.
• 198" 16:10 format — Widescreen aspect ratio matching laptop and desktop display resolutions; suited for computer-based presentations in corporate environments.
• Standard 3-position motor switch — 110–120V wall switch for up/down/stop; LVC-IV and quiet motor available factory-built.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Corporate boardroom with laptop-based presentations
• Training room with widescreen computer sources
• Government briefing room with modern AV equipment

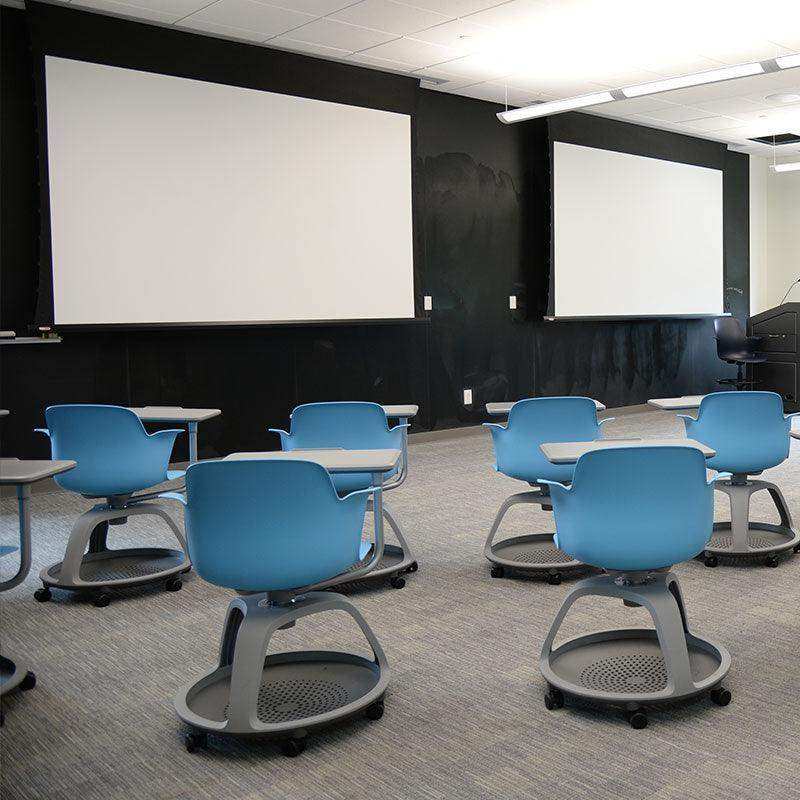

• University classroom with laptop-connected displays
• Commercial meeting space with widescreen format needs
• AV system integration project requiring 16:10 format

Technical Specifications

Frequently Asked Questions

Why specify 16:10 format instead of 16:9?
The 16:10 aspect ratio matches the native resolution of many laptops and widescreen desktop monitors (WUXGA, WXGA+). Specifying 16:10 eliminates letterboxing when displaying laptop-sourced content, making it the preferred format for corporate boardrooms and training rooms driven primarily by laptop presentations.

Can I add LVC-IV low voltage control to this configuration?
Yes. The LVC-IV Low Voltage Controller and quiet motor are factory-installable at time of order. Contact Creation Networks to specify the control option needed.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
