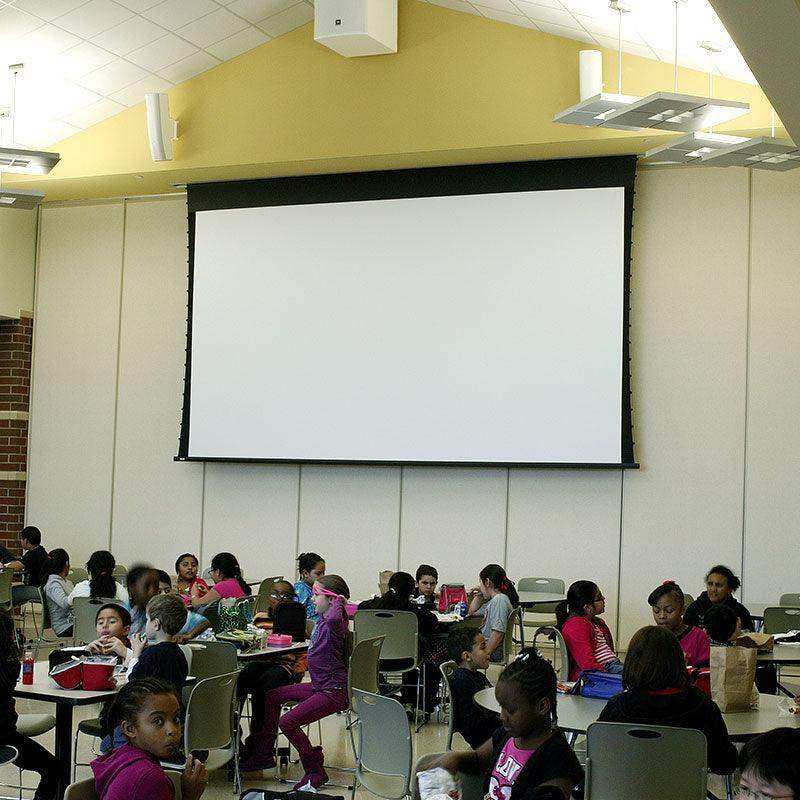

Draper Access V, 193", HDTV, CineFlex CH1200V, 110 V, with LVC-IV Low Voltage Controller - 140033CBU

Product Overview

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 193" HDTV (16:9) image area with the CineFlex CH1200V surface — a 1.2-gain ambient-light-resistant material suited for conference rooms and training spaces where ambient light cannot be fully controlled. The LVC-IV Low Voltage Controller enables direct integration with Crestron, Control4, Extron, AMX, and other commercial AV platforms. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The CineFlex CH1200V delivers 1.2 gain with ambient-light-resistant characteristics — the right choice for HDTV installations in rooms with exterior windows or variable overhead lighting. At 193" diagonal in the native 16:9 format, this screen is appropriate for boardrooms, executive conference rooms, and corporate training spaces where widescreen video content is the primary use case and room lighting cannot be fully dimmed. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The LVC-IV controller enables low-voltage integration with commercial AV control systems without requiring 110V switching at the control device. The plenum-rated case meets UL requirements for air-handling spaces, and built-in control options can be factory-installed. Custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex CH1200V viewing surface — 1.2 gain, ambient-light-resistant; suited for rooms with windows or variable ambient lighting where full blackout is not achievable.
• 193" HDTV (16:9) format — Native widescreen format for video conferencing, streaming content, and modern digital presentations.
• LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4, and other commercial AV control platforms.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Boardroom with exterior windows and widescreen content
• Executive conference room with variable ambient lighting
• Corporate training room
• University lecture hall with natural light
• Government briefing room
• Commercial multi-purpose room

Technical Specifications

Frequently Asked Questions

When should I choose CH1200V over XT700V for a 193" HDTV screen?
Choose the CH1200V (1.2 gain, ambient-light-resistant) when the room has windows or lighting that cannot be fully controlled. Choose the XT700V (0.7 gain, 180° viewing angle) for controlled-ambient rooms where a wider viewing cone is the priority.

What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms with low-voltage relay or RS-232 outputs. No proprietary gateway required.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
