Draper Access V, 182 3/8", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 110 V - 140096SC

Product Overview

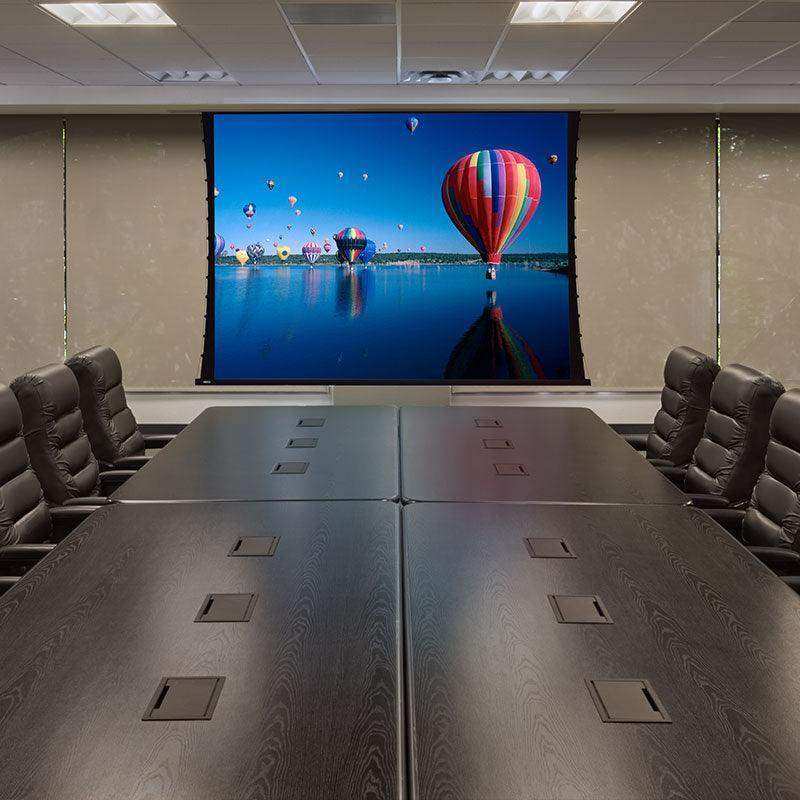

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 182-3/8" 21:9 Ultrawide image area with the ClearSound NanoPerf XT1000V surface — a 1.0-gain acoustically transparent material that allows speaker audio to pass through the screen fabric, enabling behind-screen speaker configurations. The 110V motor uses a standard 3-position wall switch; the LVC-IV Low Voltage Controller and quiet motor are available as factory-built options. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The ClearSound NanoPerf XT1000V surface is designed specifically for AV systems where speakers are positioned behind the screen. The perforation pattern allows sound to pass through with minimal acoustic impact while maintaining a clean 1.0-gain image surface. This makes the surface valuable in auditoriums, command centers, and worship spaces where speaker placement behind the screen is an architectural or acoustic requirement. At 182-3/8" diagonal in the 21:9 Ultrawide format, this screen provides an immersive wide field of view for side-by-side content, multi-source display, and cinematic presentations. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The standard 3-position wall switch provides reliable up/down/stop motor control. For rooms requiring AV control system integration, the LVC-IV and quiet motor options can be factory-built into the case. The plenum-rated case meets UL requirements for air-handling spaces, and custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• ClearSound NanoPerf XT1000V viewing surface — 1.0 gain, acoustically transparent; speaker audio passes through the screen for behind-screen speaker integration.
• 182-3/8" 21:9 Ultrawide format — Extra-wide aspect ratio for immersive presentations, multi-source display, and side-by-side content.
• Standard 3-position motor switch — 110–120V wall switch for up/down/stop; LVC-IV and quiet motor available factory-built.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Auditorium with behind-screen speaker integration
• Command center and operations room
• Large conference room with in-wall audio
• House of worship with stage speaker placement
• University lecture hall requiring acoustic transparency
• All-hands room with immersive widescreen content

Technical Specifications

Frequently Asked Questions

What does acoustically transparent mean, and when is NanoPerf required?
An acoustically transparent surface allows speaker audio to pass through the screen fabric. It is required when speakers are positioned directly behind the screen — a common configuration in auditoriums, command centers, and worship spaces where front-of-stage speaker placement is architecturally preferred.

Can I add LVC-IV low voltage control to this configuration?
Yes. The LVC-IV Low Voltage Controller and quiet motor are factory-installable at time of order. Contact Creation Networks to specify the control option needed.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
