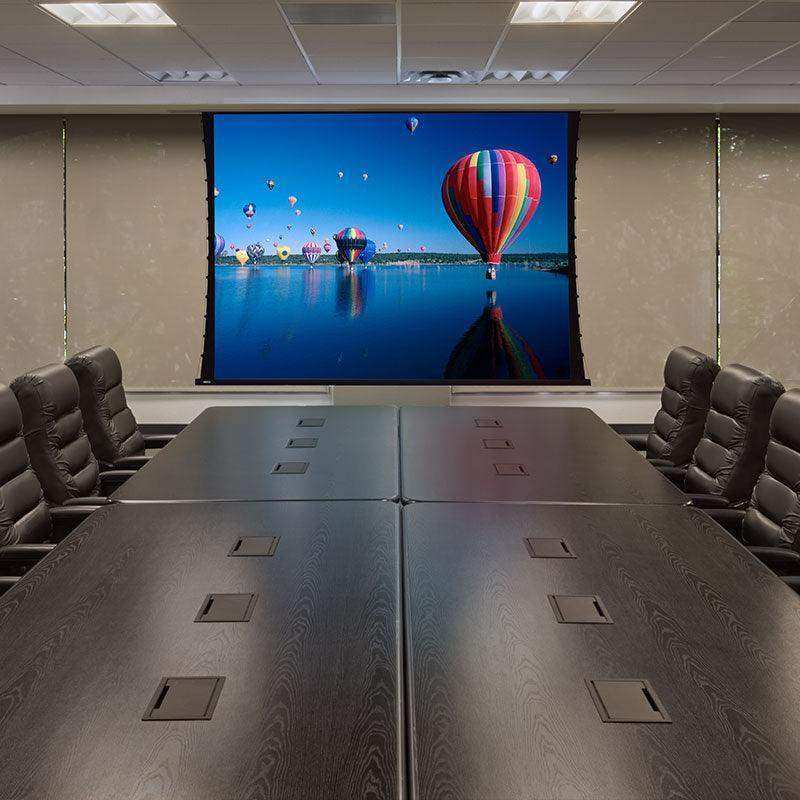

Draper Access V, 182 3/8", 21:9 Ultrawide, CineFlex CH1200V, 110 V - 140096CB

Product Overview

The Draper Access V is a motorized, tab-tensioned projection screen for ceiling-recessed installation in commercial AV environments. This configuration covers a 182-3/8" 21:9 Ultrawide image area with the CineFlex CH1200V surface — a 1.2-gain ambient-light-resistant material suited for Ultrawide installations where ambient light cannot be fully controlled. The 110V motor uses a standard 3-position wall switch; the LVC-IV Low Voltage Controller and quiet motor are available as factory-built options. The 21:9 Ultrawide format is specified for simulation environments, immersive command centers, and visualization applications requiring an extended horizontal field of view. The plenum-rated case is UL-listed for air-handling ceiling spaces.

Product Description

The Access V has been Draper’s benchmark ceiling-recessed motorized screen for commercial AV integrators for over two decades. The “case now, screen later” installation method allows the housing to be set during rough-in and the screen added at finish stage, protecting the surface from jobsite damage. The motor-in-roller assembly drops in via preset latching brackets and pin connectors once the case is in place.

The CineFlex CH1200V delivers 1.2 gain with ambient-light-resistant characteristics — suited for 21:9 Ultrawide installations in rooms with windows or overhead lighting that cannot be eliminated. At 182-3/8" diagonal in the 21:9 format, this screen accommodates simulation rooms, emergency operations centers, and visualization environments where ambient light is present and a single wide-format screen replaces a multi-screen array. Draper’s tab-tensioning system — cut from a single piece and RF-welded — maintains surface flatness and is warranted against separation for five years.

The standard 3-position wall switch provides reliable up/down/stop motor control. For rooms requiring AV control system integration, the LVC-IV and quiet motor options can be factory-built into the case. The plenum-rated case meets UL requirements for air-handling spaces, and custom sizes within the 16’ maximum image width are available from Creation Networks.

Key Features

• Ceiling-recessed concealed design — Screen retracts above the ceiling tile when not in use.
• Case now, screen later installation — Housing installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
• CineFlex CH1200V viewing surface — 1.2 gain, ambient-light-resistant; suited for rooms with windows or variable ambient lighting where full blackout is not achievable.
• 182-3/8" 21:9 Ultrawide format — Extended horizontal field of view for simulation, command-and-control, and immersive visualization environments.
• Standard 3-position motor switch — 110–120V wall switch for up/down/stop; LVC-IV and quiet motor available factory-built.
• Motor-in-roller design — Quiet operation with motor contained within the roller assembly.
• Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
• 5-year tab tensioning warranty — RF-welded single-piece tabs warranted against separation.
• Bottom access panel — Redesigned hinge for service access without removing the case.
• Quick-connect wiring — Pin-based connections support case rough-in before screen installation.
• White case standard, black available — Suits light and dark ceiling environments.
• Custom sizes available — Within the 16’ (488 cm) maximum image width.

Typical Applications

• Simulation room with ambient light and wide-format display requirement
• Emergency operations center with panoramic visualization
• Government command-and-control room with uncontrolled ambient light
• Multi-display replacement in a room with fixed overhead lighting
• Immersive training environment with ambient light constraints
• Corporate executive boardroom with cinematic display

Technical Specifications

Frequently Asked Questions

When is CH1200V the right surface for a 21:9 Ultrawide screen?
The CH1200V (1.2 gain, ambient-light-resistant) is suited for rooms where windows or overhead lighting cannot be controlled. For controlled-ambient environments where off-axis viewing coverage across a wide horizontal arc is the priority, the XT700V (0.7 gain, 180° viewing angle) is the better choice.

Can I add LVC-IV low voltage control to this configuration?
Yes. The LVC-IV Low Voltage Controller and quiet motor are factory-installable at time of order. Contact Creation Networks to specify the control option needed.

Can the case be installed before the screen arrives?
Yes. The case installs during rough-in; the screen drops in later via preset latching brackets and pin connectors.

Is the Access V case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”

What is the warranty?
One year on the product; five years on tab tensioning. Contact Creation Networks for service support.

Are custom sizes available?
Yes. Within the 16’ (488 cm) maximum image width. Contact Creation Networks for pricing.
