Draper Access V, 152", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 110 V - 140095SC
Draper Access V, 152", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 110 V - 140095SC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access V, 152", 21:9 Ultrawide, ClearSound NanoPerf XT1...
Product Overview

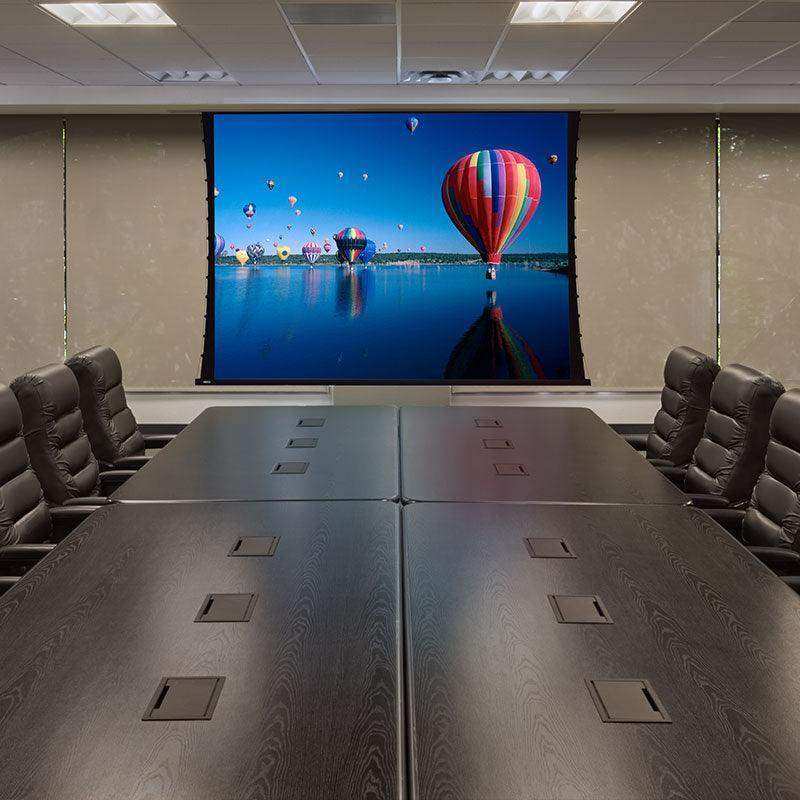

The Draper Access V with ClearSound NanoPerf XT1000V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations that integrate in-screen speaker systems. The ClearSound NanoPerf XT1000V surface uses a micro-perforated fabric construction to pass sound through the screen, allowing loudspeakers to be positioned directly behind the image plane for optimal audio-visual alignment. The 1.0 gain surface maintains standard brightness levels while delivering full acoustic transparency. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.
Product Description
The ClearSound NanoPerf XT1000V surface enables speaker-behind-screen (SBS) setups in commercial AV environments. By placing loudspeakers directly behind the screen, sound appears to originate from the screen itself—eliminating the perceptual disconnect between image and audio source that occurs with side-mounted or ceiling-mounted speakers. The NanoPerf micro-perforation pattern is engineered to maintain a 1.0 gain while minimizing acoustic coloration, with perforations small enough to remain visually imperceptible at normal viewing distances.
The Access V housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be set during rough-in construction; the screen assembly snaps into preset latching brackets and pin connectors when the space is ready for AV commissioning. The single-piece RF-welded tab-tensioning system maintains a consistently flat image plane, and tabs are warranted for five years against separation.
Key Features
- ClearSound NanoPerf XT1000V Surface (1.0 Gain) — Acoustically transparent; enables speaker-behind-screen configurations without visible perforation artifacts.
- Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted.
- Tab-Tensioned, RF-Welded System — Flat image plane; tabs warranted 5 years.
- Case-Now, Screen-Later Installation — Housing installs during rough-in; screen snaps in later.
- Quiet Motor Option — Reduces operational noise.
- LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
- Plenum-Rated, UL-Listed Housing — Approved for air-handling ceiling spaces.
Typical Applications
- Executive boardroom with speaker-behind-screen system
- Auditorium or large presentation space
- Simulation and training room
- House of worship
Technical Specifications
| Specification | Value |
|---|---|
| Screen Type | Motorized Ceiling-Recessed, Tab-Tensioned |
| Viewing Surface | ClearSound NanoPerf XT1000V |
| Surface Type | Micro-perforated acoustically transparent |
| Surface Gain | 1.0 |
| Voltage | 110V standard; 220V optional |
| Motor Options | Standard | Quiet Motor (Q) | LVC-IV (U) | QM + LVC-IV (QU) |
| Certifications | UL Listed; Plenum-Rated |
| Warranty | 1 year materials and workmanship; 5 years tab separation |
Frequently Asked Questions
Can I place speakers behind the ClearSound NanoPerf surface?
Yes. The micro-perforations allow sound to pass through for speaker-behind-screen configurations.
Will the perforations be visible during projection?
No. The NanoPerf micro-perforation pattern is designed to be imperceptible at normal viewing distances.
Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
