Draper Access V – 150", HDTV – 140144FBU

Product Overview

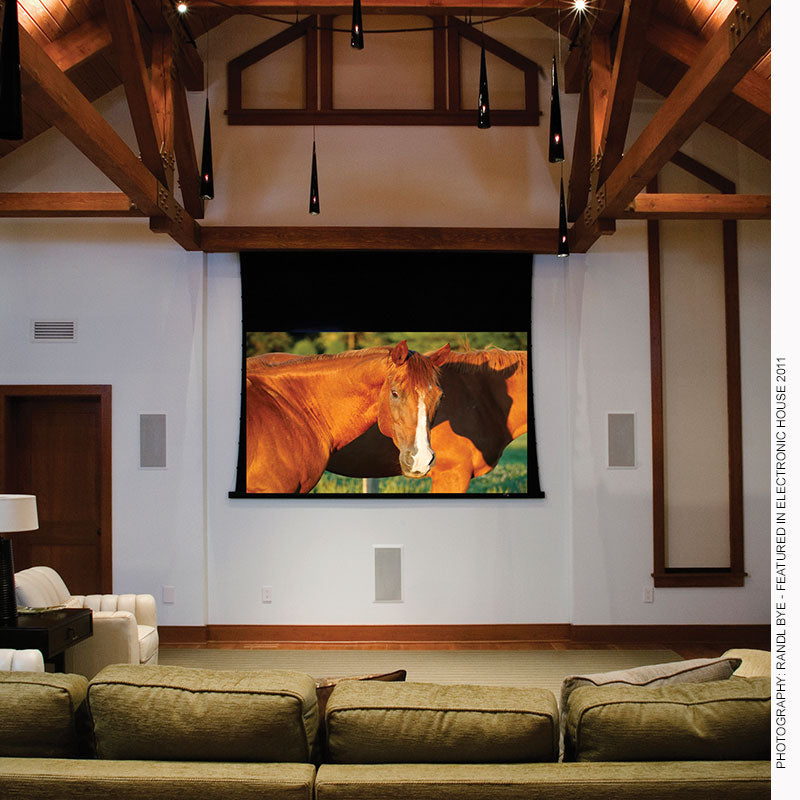

The Draper Access V is a tab-tensioned, ceiling-recessed electric projection screen for permanent commercial AV installations that need a concealed screen and a clean ceiling line. This 150" diagonal HDTV (16:9) model recesses into a plenum-rated case, making it suitable for installation in air-handling spaces above the ceiling. As a plenum-rated ceiling-recessed projection screen with tab-tensioning, it holds a flat viewing surface for accurate front projection in boardrooms, conference rooms, and training rooms. This unit is configured with Draper's LVC-IV low-voltage control motor and is supplied by Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access V tab-tensioned electric screen is specified by integrators who need a fully concealed screen with the flexibility of a plenum-rated case for air-handling ceilings. The screen recesses into a compact case with a bottom access panel that detaches for service and maintenance without visible fasteners. The tab-tensioned surface stays flat edge to edge for correct image geometry, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area for accurate placement below the ceiling. This model supports a maximum image width up to 16' (488 cm), and the 150" 16:9 HDTV format suits video and widescreen presentation content. This configuration uses the LVC-IV low-voltage control motor, which is intended for direct integration with low-voltage AV control systems and presentation automation. Quick-connect wiring lets the case be installed during early construction and the screen added later to prevent job-site damage. The Access V is well suited to corporate boardrooms, conference rooms, university classrooms, and training rooms. Pair it with a compatible unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — Holds the surface flat and wrinkle-free across the full 150" diagonal for correct image geometry.
• Plenum-rated case — Suitable for installation in air-handling spaces above the finished ceiling, subject to local code.
• LVC-IV low-voltage motor — This unit ships with the LVC-IV control motor for direct integration with low-voltage AV control systems.
• Ceiling-recessed concealment — The screen and case mount above the ceiling for a clean architectural appearance when retracted.
• 16:9 HDTV format — Matches widescreen video and presentation content without letterboxing.
• Bottom access panel — A detachable bottom panel allows service and maintenance without visible fasteners.
• Quick-connect wiring — The case can be installed during early construction and the screen added later to prevent job-site damage.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and conference rooms integrated with low-voltage control

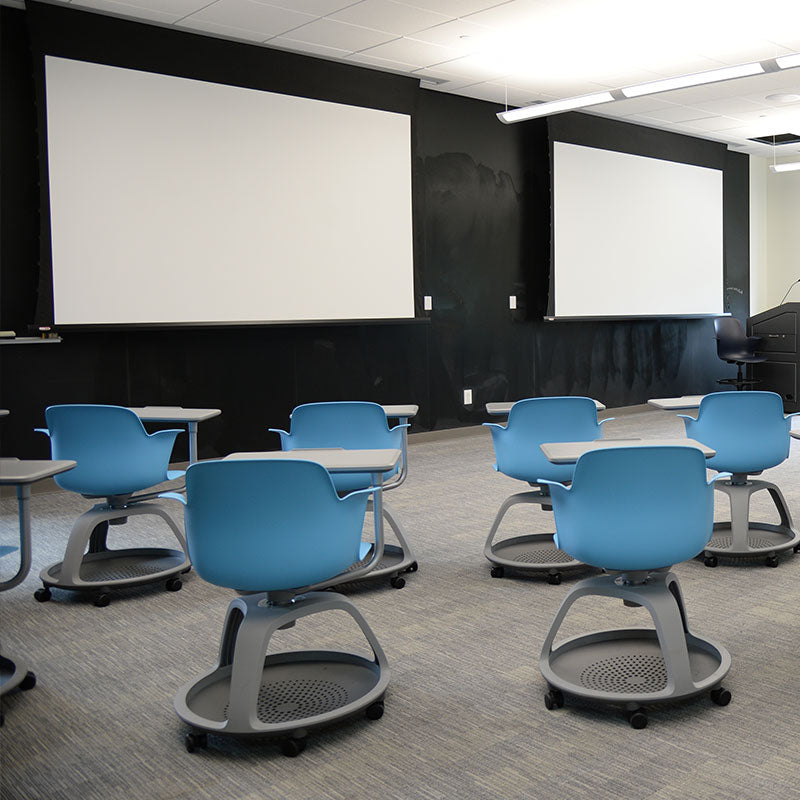

• University classrooms and training rooms with fixed front projection
• Commercial meeting spaces with air-handling ceilings
• Multi-purpose rooms where the screen must disappear when not in use
• Government and higher-education presentation spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What does the LVC-IV motor option provide?

LVC-IV is Draper's low-voltage control motor. It is designed for direct integration with low-voltage AV control systems, allowing the screen to be raised and lowered from a control processor, keypad, or presentation automation rather than only a line-voltage switch.

Is the Access V a tensioned screen?

Yes. The Access V is a tab-tensioned electric screen. The tensioning system holds the viewing surface flat and wrinkle-free, which is important for image geometry on a large 150" diagonal in a permanent installation.

What does plenum-rated mean for this screen?

A plenum rating means the case is suitable for installation in air-handling spaces above the ceiling, where local building code requires plenum-rated equipment. Confirm requirements with your mechanical and electrical trades before installation.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 150" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the Access V serviced after installation?

A detachable bottom access panel allows service and maintenance from below without removing the case or exposing fasteners. Draper also publishes fabric and motor replacement procedures for the Access Series.

What warranty and support are included?

The Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
