Draper Access V – 150", HDTV – 140144CB

Product Overview

The Draper Access V is an electric, ceiling-recessed, tab-tensioned projection screen built for permanent commercial AV installations that demand a perfectly flat image with the screen concealed above the ceiling. This 150" diagonal HDTV (16:9) model delivers a large, wide 16:9 image for boardrooms, lecture halls, and training rooms. As a Series V screen, the viewing surface is tab-tensioned along both edges to stay flat and wrinkle-free at large sizes. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Access V tab-tensioned projection screen is engineered for integrators who need a concealed, ceiling-recessed image surface that stays flat across a large 16:9 format. The steel case measures 7-3/8" high by 8-1/16" deep (19 cm x 20 cm) including the trim flange and installs above the ceiling line, leaving only a narrow closure visible when the screen is retracted. The tab-tensioning system holds the surface taut on both sides, eliminating the waviness that can appear on free-hanging screens at this size, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top for flexible mounting height. A detachable bottom access panel provides service access with no visible fasteners, and quick-connect wiring lets the case be installed early in construction with the screen added later. The case is plenum-rated for installation in commercial return-air plenums, and the assembly is UL Listed. The Access V is offered with a wide range of Draper viewing surfaces, including OptiFlex and TecVision options, so the surface can be matched to the room's projector output and ambient-light conditions; confirm the exact surface for this configuration with Creation Networks before ordering. Low-voltage, video-interface, and third-party control options integrate with systems such as Crestron and Control4. This makes the Access V a strong fit for large boardrooms, higher-education lecture halls, and training rooms that need a big, flat, commercial-grade motorized image. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats, or contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned Series V surface — The viewing surface is tensioned on both edges to stay flat and wrinkle-free at large sizes, unlike free-hanging screens.
• Ceiling-recessed concealment — The screen and case hide above the ceiling line, leaving only a low-profile closure visible when retracted.
• Large 150" 16:9 image — Delivers a big widescreen picture suited to large boardrooms and lecture halls.
• Black frame with 12" drop — The image area is fully framed in black with a standard 12" (30 cm) top drop for flexible mounting height.
• Wide surface selection — Compatible with Draper OptiFlex and TecVision viewing surfaces so the surface can be matched to projector output and room lighting.
• Plenum-rated steel case — Rated for installation in commercial return-air plenums; the full assembly is UL Listed.
• Serviceable bottom access panel — Detaches with no visible fasteners for clean service access.
• Quick-connect wiring and control integration — Supports early case installation and integration with Crestron, Control4, and other third-party control systems.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

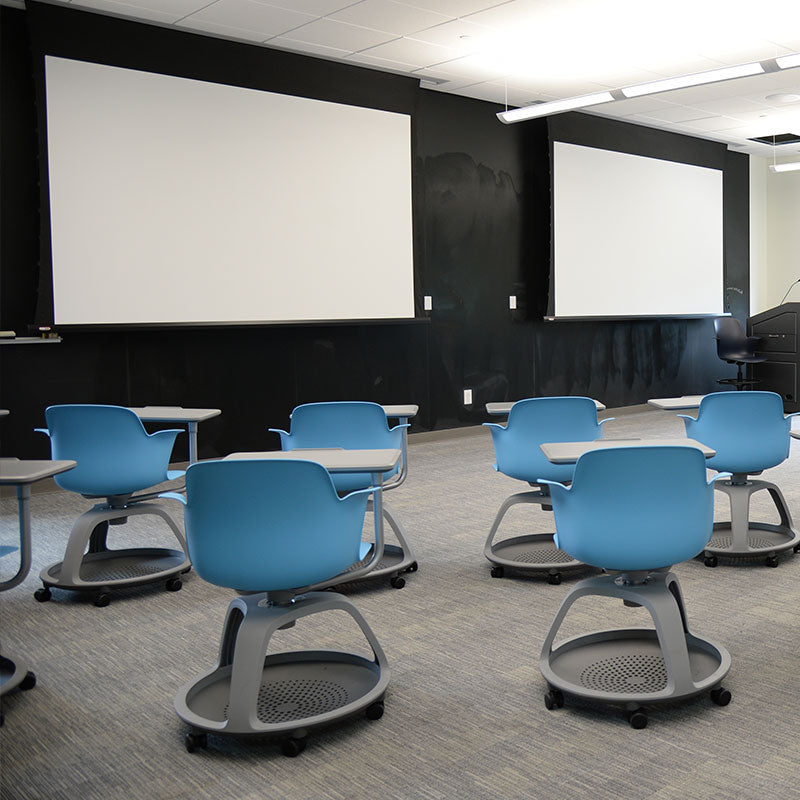

• Large corporate boardrooms and all-hands meeting rooms
• Higher-education lecture halls and auditoriums
• Training rooms and commercial meeting spaces
• Multi-purpose rooms where a hidden ceiling-recessed screen preserves the architecture
• Government and municipal meeting spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface, gain, and exact viewable dimensions for this configuration are not published for this part number; confirm the surface and dimensions with Creation Networks before ordering.

Frequently Asked Questions

What does tab-tensioning provide on the Access V?

The Access V is a Draper Series V tab-tensioned screen. The viewing surface is held taut along both vertical edges so it stays flat and wrinkle-free, which is important for maintaining geometry and focus uniformity at larger sizes like this 150" model.

Which viewing surface does this configuration use?

The Access V is available with a broad range of Draper surfaces, including OptiFlex matt white and grey options and the TecVision performance line with ambient-light-rejecting choices. The exact surface for this part number is not published, so please confirm the surface and its gain with Creation Networks so we can match it to your projector and room.

Can the case be installed in a return-air plenum?

Yes. The steel case is plenum-rated for use in air-handling spaces, so it can be installed in the return-air plenums common above commercial ceilings. The full assembly is UL Listed.

Does the Access V integrate with control systems?

Yes. Low-voltage, video-interface, and other control options are available, and the screen works with third-party control systems including Crestron and Control4. Contact us to confirm the right control method for your installation.

What projectors and mounts are compatible with the Access V?

It works with any commercial front projector matched to its 150" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Access V carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
