Draper Access V – 137", 16:10 – 140082FBQ

Product Overview

The Draper Access V is a ceiling-recessed, tab-tensioned projection screen that retracts fully into its case for a clean ceiling line when not in use. This 137" diagonal 16:10 model is plenum-rated, with a steel case UL-recognized for installation in air-handling ceiling spaces. It suits larger conference rooms, training rooms, and lecture halls that need a widescreen 16:10 image on demand. This unit ships with Draper's Quiet motor for low-noise operation. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access V ceiling-recessed projection screen is built for integrators who need a concealed motorized screen installed during construction. Its steel case measures 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) including the trim flange and mounts with 3/8" threaded rod, lag screws, or wire in a grid ceiling. Because the case is plenum-rated (UL-recognized "Suitable for Use in Environmental Air Space"), it can sit directly in return-air plenums common to commercial buildings. This 137" size has a 16:10 viewable area of 72.5" x 116", providing a large data image for commercial meeting spaces and training environments. Quick-connect wiring lets the case be mounted early, with the screen and viewing surface added later to prevent job-site damage. The tab-tensioned surface stays flat across its full width for a wrinkle-free image, and the image area is framed in black with a standard 12" (30 cm) black drop at the top for correct projector alignment. This unit ships with the Quiet motor (SKU suffix Q), reducing operating noise in sound-sensitive rooms. A detachable bottom access panel simplifies service without disturbing the ceiling. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Plenum-rated steel case — UL-recognized for use in environmental air space, so it can be recessed into return-air ceiling plenums without a separate enclosure.
• Ceiling-recessed concealment — The screen retracts fully into the case for a clean ceiling line when the room is not in projection mode.
• Tab-tensioned viewing surface — Side tabs hold the surface flat across its full width for a wrinkle-free image in permanent installations.
• Quiet motor — This unit ships with Draper's Quiet motor for reduced operating noise in boardrooms and training rooms.
• Native 16:10 widescreen format — The 72.5" x 116" viewable area matches common laptop and data-projection resolutions without letterboxing.
• Quick-connect wiring — Allows the case to be mounted during early construction, with the screen added later to avoid job-site damage.
• 12" black drop and black masking borders — Position the image correctly below the ceiling and frame it for improved perceived contrast.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Larger corporate conference rooms and boardrooms using 16:10 data projection
• Training rooms and commercial meeting spaces with drop-ceiling construction

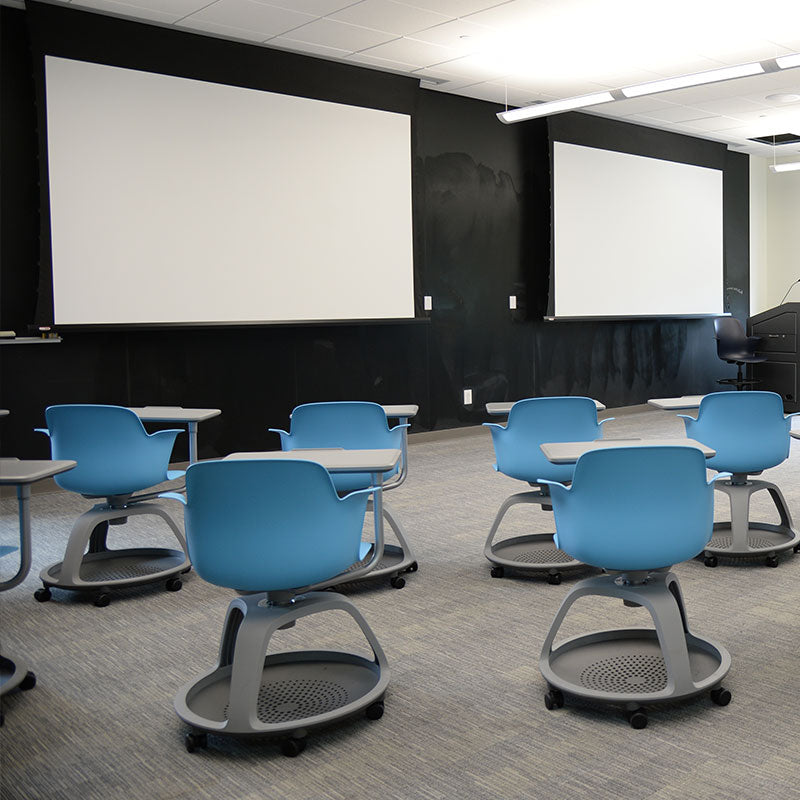

• Higher-education lecture halls and classrooms
• Government and multi-purpose rooms requiring a concealed screen
• Executive briefing centers where low motor noise is a priority

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What does the "Q" in SKU 140082FBQ indicate?

The Q suffix indicates Draper's Quiet motor, which lowers operating noise during screen deployment and retraction — useful in boardrooms, training rooms, and other sound-sensitive spaces.

Is the Access V case safe to install in a return-air plenum?

Yes. The case is plenum-rated under the UL recognition "Suitable for Use in Environmental Air Space," so it can be recessed directly into air-handling ceiling spaces. Confirm local code requirements with your AHJ.

Why choose the 16:10 format?

16:10 matches the native aspect ratio of many laptops and presentation sources, so data and slides fill the 72.5" x 116" image area without letterboxing or rescaling.

What projectors and mounts are compatible with this screen?

The Access V works with any commercial front projector matched to its 137" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the case be installed before the screen during construction?

Yes. Quick-connect wiring allows the case to be mounted during early construction and the screen and surface installed later, reducing the risk of job-site damage.

What warranty and support are included?

The Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
