Draper Access V – 137", 16:10 – 140082FB

Product Overview

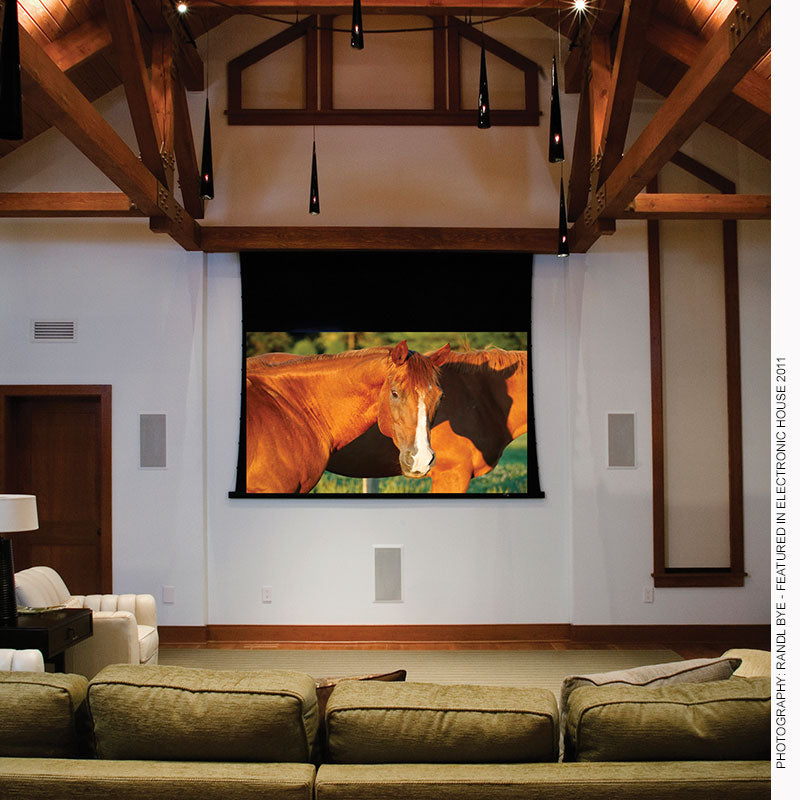

The Draper Access V is an electric, ceiling-recessed, tab-tensioned projection screen built for permanent commercial AV installations that demand a perfectly flat image with the screen concealed above the ceiling. This 137" diagonal 16:10 model uses the OptiFlex Grey XH600V surface, a 0.6-gain grey material that enhances contrast and black levels in rooms with some ambient light. As a Series V screen, the surface is tab-tensioned along both edges to stay flat and wrinkle-free at large sizes. Supplied with a 220 V motor, all units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Access V tab-tensioned projection screen is engineered for integrators who need a concealed, ceiling-recessed image surface that stays flat across a wide 16:10 format. The steel case measures 7-3/8" high by 8-1/16" deep (19 cm x 20 cm) including the trim flange and installs above the ceiling line, leaving only a narrow closure visible when the screen is retracted. The tab-tensioning system holds the viewing surface taut on both sides, eliminating the waviness that can appear on free-hanging screens at this size, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top for flexible mounting height. This configuration pairs the Grey XH600V surface, a smooth grey OptiFlex material with 0.6 gain and a wide viewing cone that improves perceived contrast where ambient light cannot be fully controlled. A detachable bottom access panel provides service access with no visible fasteners, and quick-connect wiring lets the case be installed early in construction with the screen added later. The case is plenum-rated for installation in commercial return-air plenums, and the assembly is UL Listed. Low-voltage, video-interface, and third-party control options integrate with systems such as Crestron and Control4. This makes the Access V a strong fit for boardrooms, higher-education classrooms, and training rooms that need a large, flat, commercial-grade motorized image. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats, or contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned Series V surface — The viewing surface is tensioned on both edges to stay flat and wrinkle-free at large sizes, unlike free-hanging screens.
• Ceiling-recessed concealment — The screen and case hide above the ceiling line, leaving only a low-profile closure visible when retracted.
• Grey XH600V surface — A 0.6-gain grey OptiFlex material with a wide viewing cone enhances contrast and black levels where ambient light is present.
• 16:10 wide format — Matches widescreen data and presentation content common to boardrooms and classrooms.
• Black frame with 12" drop — The image area is fully framed in black with a standard 12" (30 cm) top drop for flexible mounting height.
• Plenum-rated steel case — Rated for installation in commercial return-air plenums; the full assembly is UL Listed.
• Serviceable bottom access panel — Detaches with no visible fasteners for clean service access.
• Quick-connect wiring and control integration — Supports early case installation and integration with Crestron, Control4, and other third-party control systems.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and conference rooms requiring a large, flat concealed image

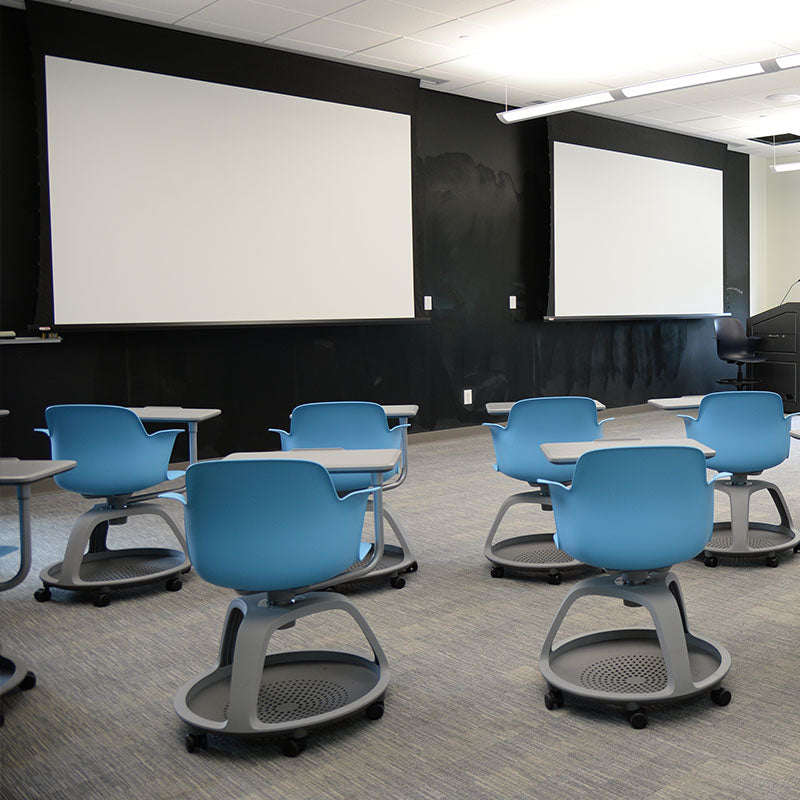

• Higher-education classrooms and lecture halls
• Training rooms and commercial meeting spaces with some ambient light
• Multi-purpose rooms where a hidden ceiling-recessed screen preserves the architecture
• Government and municipal meeting spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What does tab-tensioning provide on the Access V?

The Access V is a Draper Series V tab-tensioned screen. The viewing surface is held taut along both vertical edges so it stays flat and wrinkle-free, which is important for maintaining geometry and focus uniformity at larger sizes like this 137" model.

Why choose the Grey XH600V surface?

The grey XH600V surface has 0.6 gain and improves perceived contrast and black levels compared with matt white, so it performs better in rooms with some ambient light. It is not an ambient-light-rejecting surface, so reasonable light control is still recommended.

Can the case be installed in a return-air plenum?

Yes. The steel case is plenum-rated for use in air-handling spaces, so it can be installed in the return-air plenums common above commercial ceilings. The full assembly is UL Listed.

Does the Access V integrate with control systems?

Yes. Low-voltage, video-interface, and other control options are available, and the screen works with third-party control systems including Crestron and Control4. Contact us to confirm the right control method for your installation.

What projectors and mounts are compatible with the Access V?

It works with any commercial front projector matched to its 137" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Access V carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
