Draper Access V, 123", 16:10, Grey XH600V, 110 V, with Quiet Motor - 140114FBQ
Draper Access V, 123", 16:10, Grey XH600V, 110 V, with Quiet Motor - 140114FBQ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access V, 123", 16:10, Grey XH600V, 110 V, with Quiet M...
Product Overview

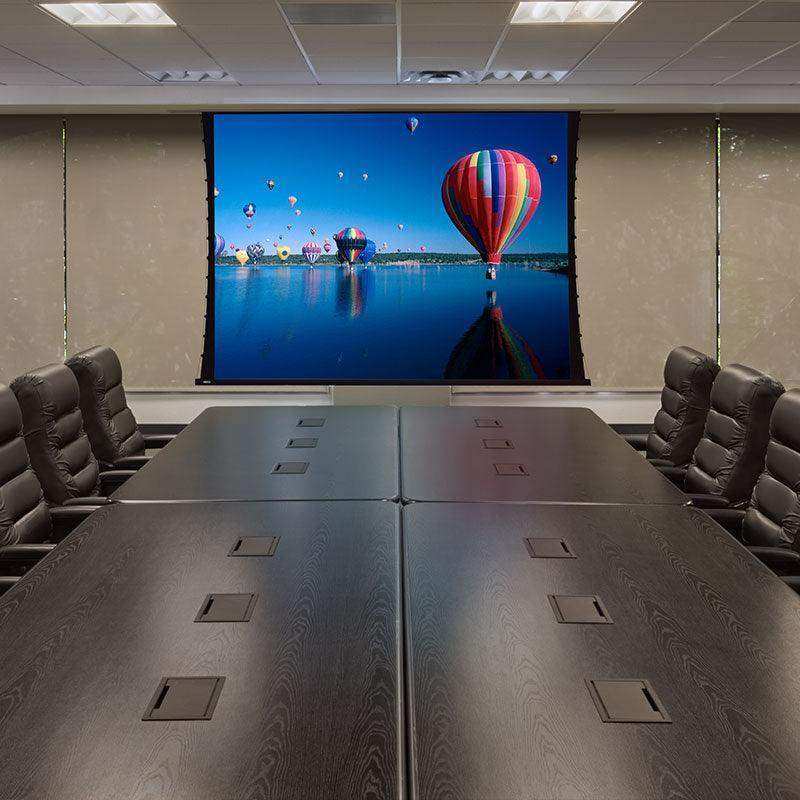

The Draper Access V (140114FBQ) is a motorized, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 123" 16:10 image area with the Grey XH600V viewing surface and includes the Quiet Motor for low-noise operation. The tab-tensioning system maintains a flat, uniform image plane. LVC-IV is available as a factory-built option. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
The Access V uses Draper’s tab-tensioning system to keep the screen surface taut. The Grey XH600V is a grey diffuse surface with 0.6 gain designed for conference rooms with ambient light. At 123" diagonal in the 16:10 format with the Quiet Motor, this screen suits mid-size conference rooms requiring ambient-light performance and quiet operation.
Key Features
- Grey XH600V viewing surface — 0.6 gain grey diffuse; enhanced contrast in ambient light environments.
- 123" 16:10 format — Widescreen for mid-size conference rooms with ambient light.
- Tab-tensioning system — Maintains flat, uniform image plane.
- Quiet Motor — Reduced operating noise for acoustically sensitive environments.
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
Typical Applications
- Mid-size conference room with ambient light requiring quiet operation
- Corporate boardroom with limited light control
- Executive presentation suite
- University lecture hall
- Government meeting room
- Digital signage in commercial spaces
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access V (140114FBQ) |
| Image Format | 16:10 |
| Diagonal Image Size | 123" |
| Viewing Surface | Grey XH600V |
| Gain | 0.6 |
| Tensioning | Tab-tensioned |
| Motor Voltage | 110V |
| Included Control | 110–120V 3-position switch + Quiet Motor |
| Optional Controls | LVC-IV Low Voltage Controller — factory-built |
| Case Rating | Plenum-rated |
Frequently Asked Questions
When should I choose Grey XH600V over Matt White XT1000VB?
Choose Grey XH600V when the room has ambient light that cannot be fully controlled.
Can I add LVC-IV?
Yes. Order 140114FBQU for Quiet Motor + LVC-IV.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
