Draper Access V – 123", 16:10 – 140128FB

Product Overview

The Draper Access V is a ceiling-recessed, tab-tensioned projection screen engineered for permanent commercial AV installations where a concealed screen and a clean ceiling line are required. This 123" 16:10 widescreen model retracts fully into a plenum-rated case above the ceiling, making it a practical ceiling-recessed projection screen for conference rooms, boardrooms, and training rooms in air-handling spaces. As a motorized, tab-tensioned projection screen, it holds a flat viewing surface for accurate, distortion-free images across the seating area. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access V ceiling-recessed projection screen is specified by integrators who need the screen out of sight when a room is not in use. The extruded aluminum case measures 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) including the trim flange, and is plenum-rated for installation in return-air ceiling spaces. A quick-connect wiring system lets the case be installed during early construction and the screen added later, protecting the surface from job-site damage. The tab-tensioned surface keeps the image flat and wrinkle-free for a commercial-grade picture, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top for correct image placement. A detachable bottom access panel allows service and fabric replacement without removing the case, while internal sliding brackets accommodate a range of screen sizes. This 123" 16:10 configuration ships with a standard 110V motor and 3-position switch, with Quiet, low-voltage LVC-IV, and 220V motor options available for integration with third-party control systems such as Crestron and Control4. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Ceiling-recessed concealment — The screen and case retract above the ceiling line for a clean, finished appearance when the system is not in use.
• Plenum-rated case — The 7-3/8" x 8-1/16" case is rated for installation in air-handling ceiling spaces, helping meet commercial building requirements.

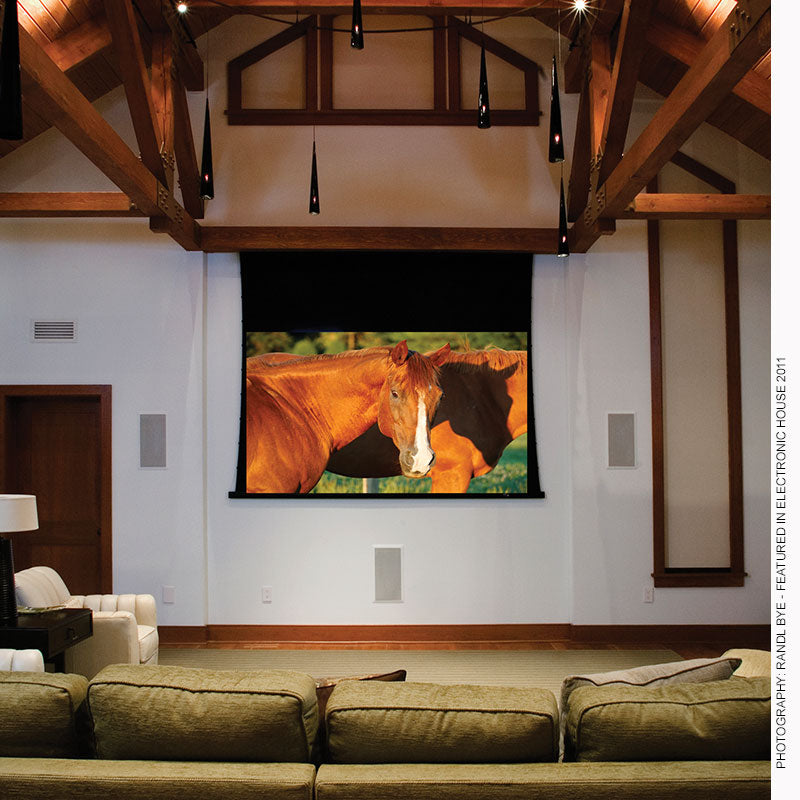

• Tab-tensioned viewing surface — Tensioning holds the surface flat and wrinkle-free for a distortion-free projected image across wide seating layouts.
• Early case installation — Quick-connect wiring lets the case be mounted during construction and the screen added later to prevent job-site damage.
• Bottom access panel — A detachable bottom panel allows motor and fabric service without removing the case from the ceiling.
• Standard 110V motor — Ships with a 110V motor and 3-position switch; Quiet, low-voltage LVC-IV, and 220V motor options are available.
• Control-system ready — Low-voltage and video-interface control options integrate with Crestron, Control4, and other third-party automation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

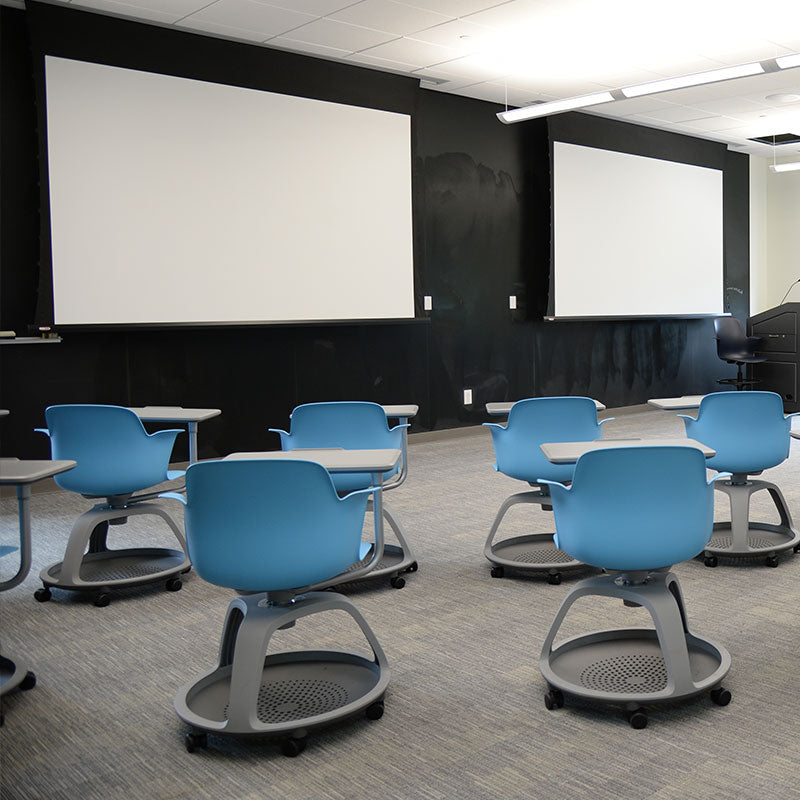

• Corporate boardrooms and conference rooms requiring a concealed ceiling-recessed screen
• Training rooms and commercial meeting spaces in air-handling (plenum) ceilings
• Higher-education classrooms and lecture halls
• Multi-purpose rooms where a clean ceiling line is needed when the screen is stowed
• Government and commercial briefing spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Access V plenum-rated for installation above the ceiling?

Yes. The Access V case is plenum-rated for use in air-handling (return-air) ceiling spaces, which is often required for commercial installations. The case measures 7-3/8" high x 8-1/16" deep including the trim flange.

What motor and control options does this screen support?

This unit ships with a standard 110V motor and 3-position switch. Quiet, low-voltage LVC-IV, and 220V motors are also available, and low-voltage or video-interface controls can be built in for integration with Crestron, Control4, and other third-party control systems.

Can the case be installed before the room is finished?

Yes. A quick-connect wiring system lets the case be installed during early construction, with the screen added later to protect the viewing surface from job-site damage.

What projectors and mounts are compatible with the Access V?

It works with any commercial front projector matched to its 123" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen serviced after installation?

A detachable bottom access panel allows motor and fabric service, and fabric replacement, without removing the case from the ceiling, which simplifies long-term maintenance in permanent installations.

What warranty and support are included?

The Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
