Draper Access V, 119", HDTV, Matt White XT1000VB, 110 V, with Quiet Motor & LVC-IV Low Voltage Controller - 140110QU

Product Overview

The Draper Access V with Matt White XT1000VB surface is a motorized, ceiling-recessed tab-tensioned projection screen for commercial AV installations requiring full ceiling concealment and a versatile, high-performance viewing surface. The Matt White XT1000VB is Draper's standard reference white surface with a 1.0 gain—delivering accurate, neutral brightness across a wide viewing angle—making it the most broadly applicable surface in the Access V lineup. It performs reliably across conference rooms, training facilities, boardrooms, and multipurpose spaces with a controlled projection environment. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.

Product Description

The Matt White XT1000VB surface delivers a 1.0 gain with wide-angle, spectrally neutral reflectivity, making it the default choice for commercial AV installers specifying an Access V without a specialized ambient light, contrast, or acoustic transparency requirement. The surface works well with a broad range of commercial projectors across throw distances and lumen ratings typical in corporate environments.

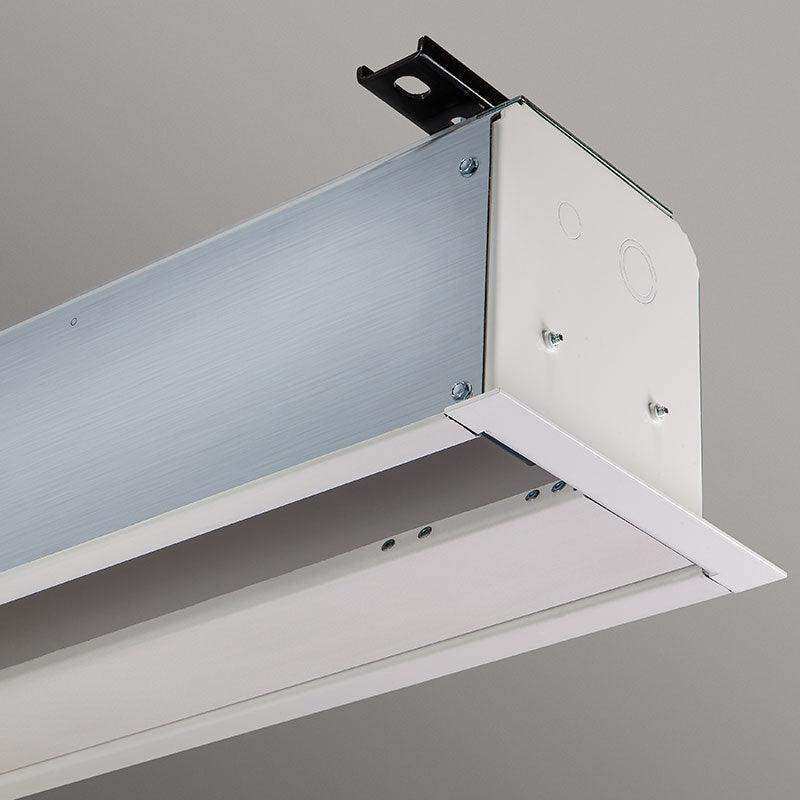

The Access V housing provides full ceiling recessing for complete screen concealment when retracted. The screen disappears into the ceiling, leaving only a clean flange-trimmed opening. The motor-in-roller design keeps all mechanical components fully contained inside the housing.

Draper's case-now, screen-later installation method allows the housing to be installed during rough-in construction before ceilings are closed. The Matt White XT1000VB screen assembly is stored safely off-site and snapped into preset latching roller brackets and pin connectors when the space is ready for AV commissioning. This eliminates job site damage to the viewing surface and supports phased installations on multi-room commercial projects.

The single-piece RF-welded tab-tensioning system maintains a consistently flat image plane across the full screen width. Tabs are warranted against separation for five years. The optional Quiet Motor reduces operational noise in meeting-sensitive environments. The optional LVC-IV Low Voltage Controller enables dry-contact integration with Crestron, Extron, AMX, Control4, and other AV control platforms. Both options must be specified at time of order. Custom sizes and 220V motor are available.

Key Features

• Matt White XT1000VB Viewing Surface (1.0 Gain) — Standard reference white surface; spectrally neutral with wide-angle reflectivity suitable for a broad range of commercial AV applications.
• Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening for clean architectural finish.
• Tab-Tensioned, RF-Welded System — Flat, uniform image plane across full screen width; tabs warranted 5 years against separation.
• Case-Now, Screen-Later Installation — Housing installs during rough-in construction; screen assembly clicks in later to prevent job site damage.
• Compact Case Profile — 7-3/8" H × 8-1/16" D including trim flange; fits standard above-ceiling construction without custom framing.
• Quiet Motor Option — Reduces operational noise in meeting-sensitive environments.
• LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4; built into housing below ceiling when specified.
• Plenum-Rated, UL-Listed Housing — Approved for environmental air-handling ceiling spaces; meets commercial building code requirements.
• Multiple Format Options — Available in HDTV 16:9, 16:10 WUXGA, NTSC 4:3, and 21:9 Ultrawide formats across a wide range of sizes.
• Custom Sizes Available — Contact Creation Networks for custom sizes and 220V motor configurations.

Typical Applications

• Boardroom
• Conference room
• Training room
• Multipurpose room
• House of worship
• Government and institutional spaces
• Auditorium

Technical Specifications

Frequently Asked Questions

Is the Matt White XT1000VB surface a good general-purpose choice?
Yes. The 1.0 gain spectrally neutral surface is the standard reference choice for commercial AV. It works with the widest range of projectors and environments, and is appropriate for any installation without a specific ambient light, contrast, or acoustic transparency requirement.

Can the LVC-IV controller integrate with Crestron or Extron?
Yes. The LVC-IV accepts dry-contact low-voltage inputs compatible with Crestron, Extron, AMX, Control4, and other building automation systems. Specify at time of order.

Is the Access V housing plenum-rated?
Yes. UL Listed as Suitable for Use in Environmental Air Space, meeting plenum-rating requirements for commercial air-handling ceiling spaces.

What is the case-now, screen-later installation process?
The housing installs during rough-in construction. The screen assembly is stored off-site and snapped in later to prevent job site damage to the viewing surface.

Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.

What warranty covers the Access V?
One-year warranty on materials and workmanship; five-year warranty on the RF-welded tab-tensioning system against separation.
