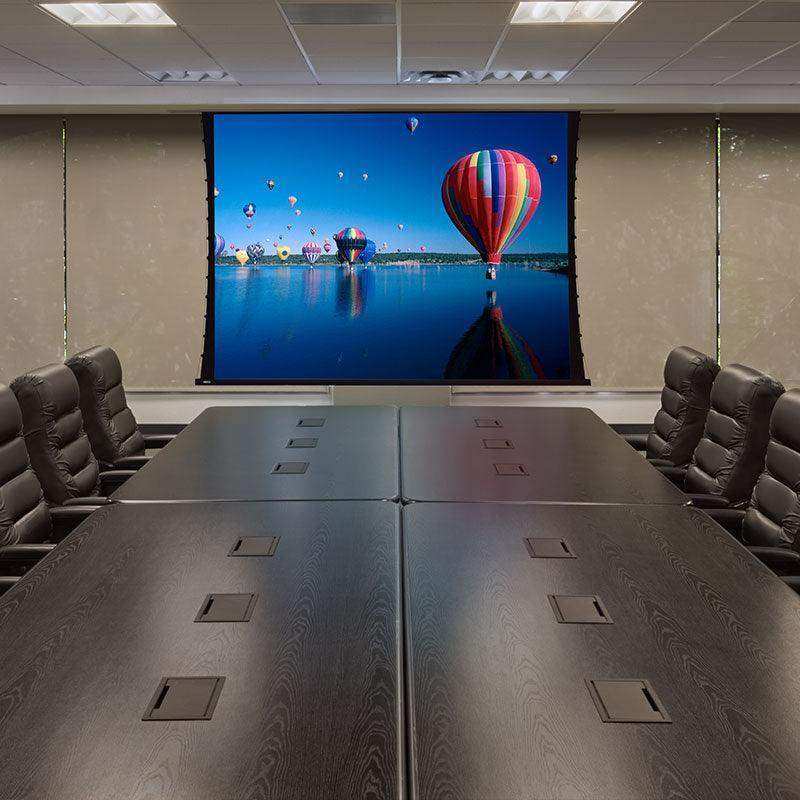

Draper Access V, 11', NTSC, ClearSound NanoPerf XT1000V, 110 V, with LVC-IV Low Voltage Controller - 140105SCU

Product Overview

The Draper Access V with ClearSound NanoPerf XT1000V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations that integrate in-screen speaker systems. The ClearSound NanoPerf XT1000V surface uses a micro-perforated fabric construction to pass sound through the screen, allowing loudspeakers to be positioned directly behind the image plane for optimal audio-visual alignment—critical for high-end boardrooms, auditoriums, and AV systems where sound localization to the screen is architecturally required. The 1.0 gain surface maintains standard brightness levels while delivering full acoustic transparency. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.

Product Description

The ClearSound NanoPerf XT1000V surface enables speaker-behind-screen (SBS) setups in commercial AV environments. By placing loudspeakers directly behind the screen, sound appears to originate from the screen itself—eliminating the perceptual disconnect between image and audio source that occurs with side-mounted or ceiling-mounted speakers. The NanoPerf micro-perforation pattern is engineered to maintain a 1.0 gain while minimizing acoustic coloration, with perforations small enough to remain visually imperceptible at normal viewing distances.

The Access V housing provides full ceiling recessing for complete screen concealment when retracted. Draper's case-now, screen-later installation method allows the housing to be set during rough-in construction; the screen assembly is stored safely until the space is ready for AV commissioning, then snapped into preset latching brackets and pin connectors. The single-piece RF-welded tab-tensioning system maintains a consistently flat image plane. Tabs are warranted for five years against separation.

The optional Quiet Motor reduces operational noise. The optional LVC-IV Low Voltage Controller provides dry-contact integration with Crestron, Extron, AMX, Control4, and other AV control systems. Both options must be specified at time of order.

Key Features

• ClearSound NanoPerf XT1000V Surface (1.0 Gain) — Acoustically transparent micro-perforated fabric enables speaker-behind-screen configurations without visible perforation artifacts.
• Speaker-Behind-Screen Compatibility — Loudspeakers positioned directly behind the image plane for spatially accurate audio-visual alignment.
• Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening cleanly.
• Tab-Tensioned, RF-Welded System — Flat image plane; tabs warranted 5 years against separation.
• Case-Now, Screen-Later Installation — Housing installs during rough-in; screen assembly clicks in later.
• Quiet Motor Option — Reduces operational noise in acoustically sensitive environments.
• LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
• Plenum-Rated, UL-Listed Housing — Approved for environmental air-handling ceiling spaces.

Typical Applications

• Executive boardroom with speaker-behind-screen system
• Auditorium or large presentation space
• Simulation and training room
• House of worship with integrated audio-visual system
• High-end conference room

Technical Specifications

Frequently Asked Questions

Can I place speakers behind the ClearSound NanoPerf surface?
Yes. The micro-perforations allow sound to pass through for speaker-behind-screen configurations.

Will the perforations be visible during projection?
No. The NanoPerf micro-perforation pattern is designed to be imperceptible at normal viewing distances.

Can the LVC-IV controller integrate with Crestron or Extron?
Yes. Specify at time of order to have it built into the housing.

Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
