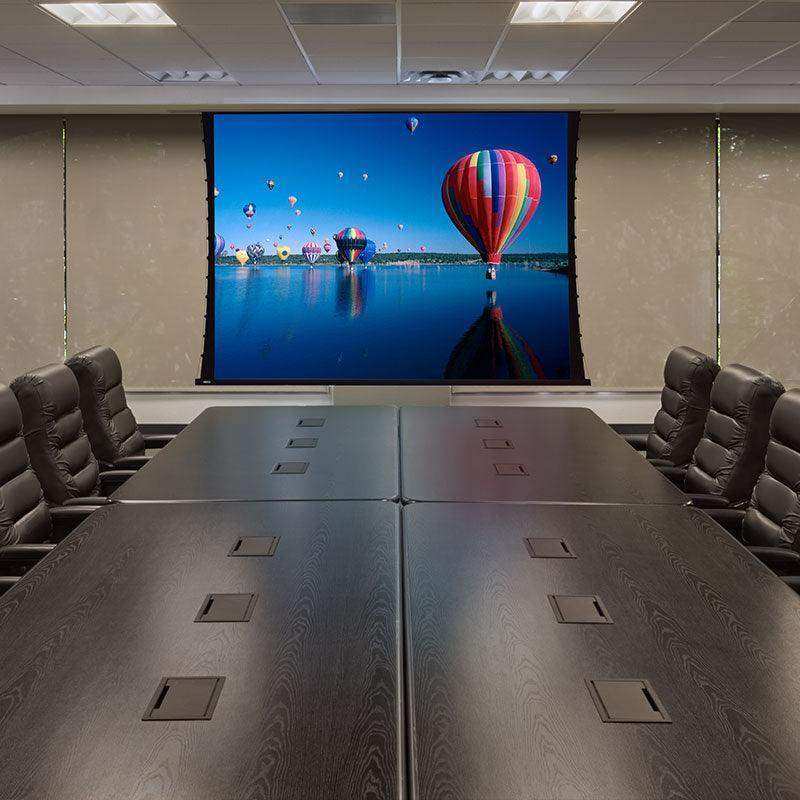

Draper Access V, 11', NTSC, CineFlex White XT700V, 110 V - 140105CD

Product Overview

The Draper Access V with CineFlex White XT700V surface is a motorized, ceiling-recessed tab-tensioned projection screen designed for commercial AV installations requiring full ceiling concealment and a wide viewing cone. The CineFlex White XT700V surface delivers a 0.7 gain with a wider viewing angle than higher-gain alternatives—well-suited for large conference rooms, multi-purpose halls, and training facilities where viewers are seated across a wide horizontal spread and uniform brightness across all seating positions is a priority over peak brightness. The plenum-rated, UL-Listed housing fits standard above-ceiling construction without additional enclosures.

Product Description

The CineFlex White XT700V is Draper's wide-angle, low-gain viewing surface for the Access V ceiling-recessed series. With a 0.7 gain, it is the lowest-gain surface in the Access V lineup—making it optimal for large meeting spaces, auditoriums, and multipurpose rooms where audiences are spread across a wide arc. The lower gain reduces hotspot brightness at center while maintaining consistent illumination for off-axis viewers, providing a more uniform image experience in wide rooms.

The Access V housing provides full ceiling recessing for complete screen concealment when retracted. The bottom flange trims the ceiling opening cleanly without additional millwork, and the motor-in-roller design keeps all mechanical components inside the housing for a clean installation. Draper's case-now, screen-later installation method allows the housing to be set during rough-in construction; the screen assembly is stored safely until the space is ready for AV commissioning, then snapped into preset latching brackets and pin connectors.

The single-piece RF-welded tab-tensioning system maintains a flat, uniform image plane across the full width of the screen. Tabs are warranted for five years against separation. The optional Quiet Motor reduces operational noise in environments sensitive to mechanical sound. The optional LVC-IV Low Voltage Controller enables dry-contact integration with Crestron, Extron, AMX, Control4, and other building automation platforms. Both options must be specified at time of order. Custom sizes and 220V motor configurations are available.

Key Features

• CineFlex White XT700V Viewing Surface (0.7 Gain) — Wide viewing angle with uniform brightness across broad seating arrangements; ideal for large multipurpose and conference rooms.
• Ceiling-Recessed, Full-Concealment Design — Screen fully hides in ceiling when retracted; bottom flange trims opening for clean architectural finish.
• Tab-Tensioned, RF-Welded System — Consistently flat image plane across full screen width; tabs warranted 5 years against separation.
• Case-Now, Screen-Later Installation — Housing installs during rough-in construction; screen assembly clicks in later to prevent job site surface damage.
• Compact Case Profile — 7-3/8" H × 8-1/16" D including trim flange; fits standard above-ceiling construction without custom framing.
• Quiet Motor Option — Reduces deployment and retraction noise in meeting-sensitive environments.
• LVC-IV Low Voltage Controller Option — Dry-contact integration with Crestron, Extron, AMX, Control4.
• Plenum-Rated, UL-Listed Housing — Approved for environmental air-handling ceiling spaces.

Typical Applications

• Large conference room
• Multi-purpose room
• Training room
• Auditorium
• House of worship
• Government and institutional spaces

Technical Specifications

Frequently Asked Questions

When is the CineFlex White XT700V the right surface choice?
It is best suited for large rooms with wide seating spreads where uniform brightness across all viewing positions matters more than peak center brightness.

Can the LVC-IV controller integrate with Crestron or Extron?
Yes. Specify at time of order to have it built into the housing.

Is the Access V housing plenum-rated?
Yes. UL Listed as Suitable for Use in Environmental Air Space.

Are custom sizes available?
Yes. Contact Creation Networks for pricing on custom sizes and 220V motor configurations.
