Draper Access V, 109", 16:10, Matt White XT1000VB, 110 V - 140112
Product Overview

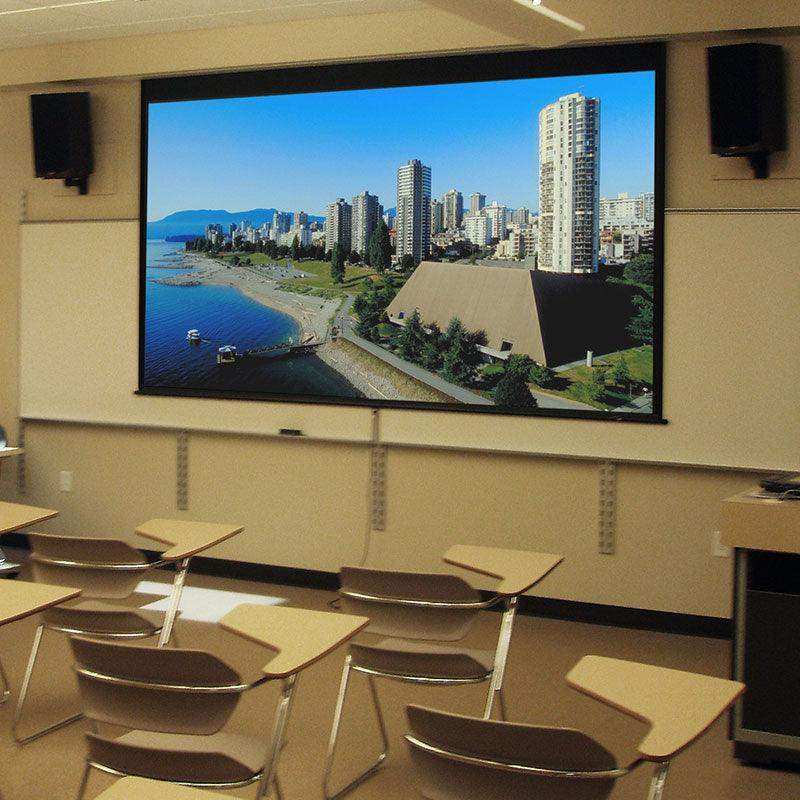

The Draper Access V (140112) is a motorized, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 109" 16:10 image area with the Matt White XT1000VB viewing surface. The tab-tensioning system maintains a flat, uniform image plane. The standard 3-position wall switch provides up/down/stop motor control; Quiet Motor and LVC-IV are available as factory-built options. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
The Access V uses Draper’s tab-tensioning system to keep the screen surface taut. At 109" diagonal in the 16:10 format, this screen suits smaller conference rooms and corporate meeting spaces with laptop-sourced widescreen content. The case-now-screen-later installation allows the housing to be set during rough-in and the screen added at finish stage.
Key Features
- Matt White XT1000VB viewing surface — 1.0 gain, tab-tensioned for flat image geometry.
- 109" 16:10 format — Widescreen for smaller conference rooms and meeting spaces.
- Tab-tensioning system — Maintains flat, uniform image plane.
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Standard 3-position motor switch — 110–120V; Quiet Motor and LVC-IV available factory-built.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
Typical Applications
- Smaller conference room with widescreen AV
- Corporate meeting suite
- Executive office with projection capability
- University seminar room
- Government meeting room
- Commercial training space
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access V (140112) |
| Image Format | 16:10 |
| Diagonal Image Size | 109" |
| Viewing Surface | Matt White XT1000VB |
| Tensioning | Tab-tensioned |
| Motor Voltage | 110V |
| Included Control | 110–120V 3-position switch (standard) |
| Optional Controls | Quiet Motor (Q); LVC-IV (U); Quiet Motor + LVC-IV (QU) |
| Case Rating | Plenum-rated |
Frequently Asked Questions
What is the difference between Access V and Access E?
The Access V uses a tab-tensioning system that keeps the screen surface taut, ensuring flat image geometry from edge to edge.
What control options are available?
Standard (this SKU), Quiet Motor (140112Q), LVC-IV (140112U), or Quiet Motor + LVC-IV (140112QU). All factory-built configurations.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
