Draper Access M, 165", 16:10, Contrast Grey XH800E - 197032EC
Product Overview

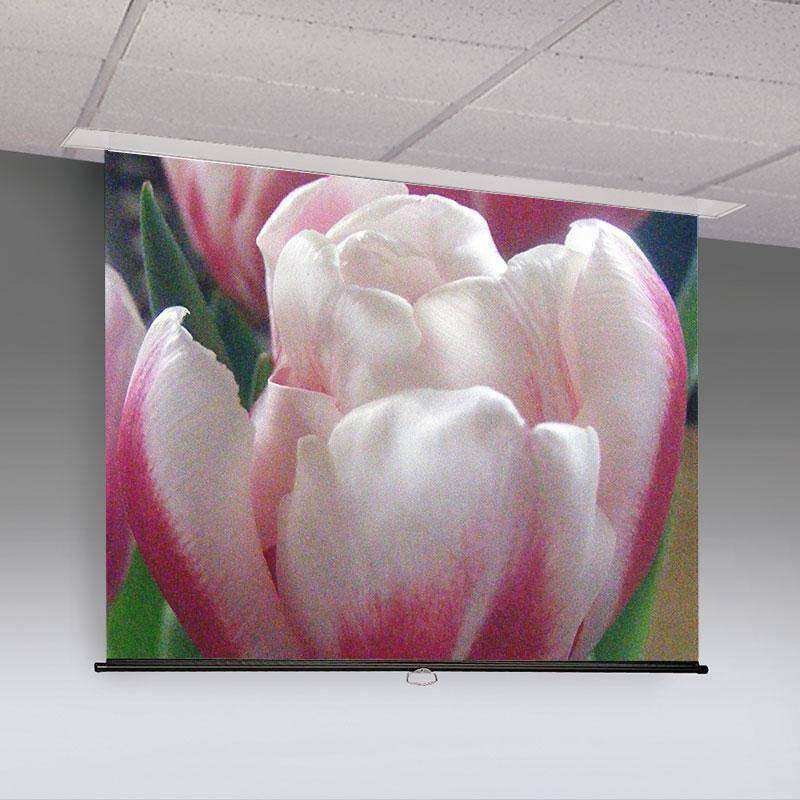

The Draper Access M (197032EC) is a manual, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 165" 16:10 image area with the Contrast Grey XH800E viewing surface — a grey diffuse material designed for rooms with ambient light. The screen operates without a motor. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
At 165" diagonal in the 16:10 format, this screen suits large conference rooms and lecture halls where ambient light cannot be fully controlled. The Contrast Grey XH800E surface absorbs stray light and delivers improved image contrast relative to matt white surfaces in mixed-lighting environments. A Matt White XT1000E version is available as 197032.
Key Features
- Contrast Grey XH800E viewing surface — Grey diffuse surface for improved contrast in ambient light.
- 165" 16:10 format — Large widescreen for conference rooms and lecture halls.
- Manual operation — Pull-down and return without motor.
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Case now, screen later installation — Housing installs during rough-in; screen drops in later.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
Typical Applications
- Large conference room with ambient light
- Lecture hall with windows or overhead lighting
- Corporate training facility
- University classroom
- Government facility
- Multi-purpose room
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access M (197032EC) |
| Image Format | 16:10 |
| Diagonal Image Size | 165" |
| Viewing Surface | Contrast Grey XH800E |
| Surface Type | Grey diffuse — ambient light tolerant |
| Operation | Manual pull-down |
| Case Rating | Plenum-rated |
Frequently Asked Questions
When should I specify Contrast Grey over Matt White?
Specify Contrast Grey for rooms where ambient light cannot be controlled. Matt White (197032) is preferred for dedicated dark rooms.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
