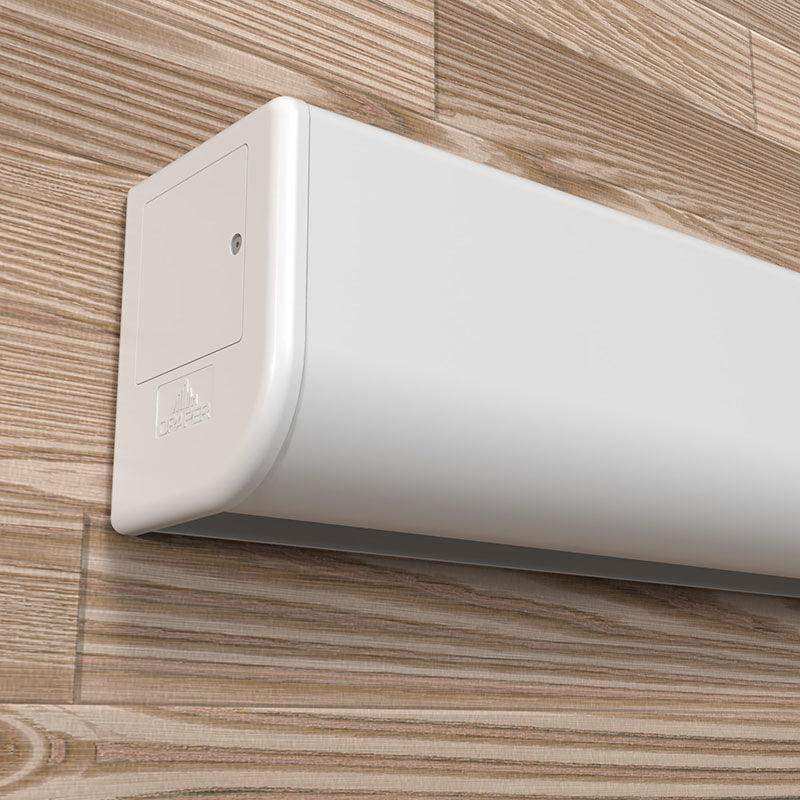

Draper Access E, 198", 16:10, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller - 139044U
Draper Access E, 198", 16:10, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller - 139044U is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access E, 198", 16:10, Matt White XT1000E, 110 V, with ...
Product Overview
The Draper Access E (139044U) is a motorized, ceiling-recessed projection screen for commercial AV integration. This configuration covers a 198" 16:10 image area with the Matt White XT1000E viewing surface (1.0 gain, 180° viewing angle) and includes the LVC-IV Low Voltage Controller for direct integration with Crestron, Control4, Extron, AMX, and other commercial AV platforms. The plenum-rated case is UL-listed for air-handling ceiling spaces.
Product Description
The Access E uses the case-now-screen-later installation concept — the housing installs during rough-in and the screen drops in at finish stage via preset latching brackets and pin connectors. At 198" diagonal in the 16:10 format, this screen suits large conference rooms, lecture halls, and multi-purpose spaces with laptop-sourced widescreen content and AV control system infrastructure.
The Matt White XT1000E delivers 1.0 gain with a 180° viewing angle — neutral brightness output for controlled-ambient rooms. The LVC-IV controller enables low-voltage integration with commercial AV control systems. The plenum-rated case meets UL requirements for air-handling spaces.
Key Features
- Ceiling-recessed concealed design — Screen retracts above ceiling when not in use.
- Case now, screen later installation — Housing installs during rough-in; screen drops in later.
- Matt White XT1000E viewing surface — 1.0 gain, 180° viewing angle.
- 198" 16:10 format — Widescreen matching laptop and desktop display resolutions.
- LVC-IV Low Voltage Controller — Direct integration with Crestron, Extron, AMX, Control4.
- Motor-in-roller design — Motorized deployment and retraction.
- Plenum-rated case — UL-listed as “Suitable for Use in Environmental Air Space.”
Typical Applications
- Large conference room with laptop-based content and AV control
- University lecture hall with 16:10 AV systems
- Government training facility with integrated AV infrastructure
- Corporate boardroom with widescreen presentations
- Commercial conference center
- Multi-purpose room with laptop-sourced content
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | Access E (139044U) |
| Image Format | 16:10 |
| Diagonal Image Size | 198" |
| Viewing Surface | Matt White XT1000E |
| Surface Gain | 1.0 |
| Viewing Angle | 180° |
| Motor Voltage | 110V |
| Included Control | 110–120V 3-position switch + LVC-IV Low Voltage Controller |
| Compatible Control Systems | Crestron, Extron, AMX, Control4, and others via low-voltage |
| Case Rating | Plenum-rated (UL “Suitable for Use in Environmental Air Space”) |
| Product Warranty | 1 year |
Frequently Asked Questions
What AV control systems does the LVC-IV support?
Crestron, Extron, AMX, Control4, and most commercial platforms with low-voltage relay or RS-232 outputs.
Can the case be installed before the screen arrives?
Yes. Case installs during rough-in; screen drops in later via preset latching brackets and pin connectors.
Is the case plenum-rated?
Yes. UL-listed as “Suitable for Use in Environmental Air Space.”
