Draper Access E – 133", HDTV – 139112SAU

Product Overview

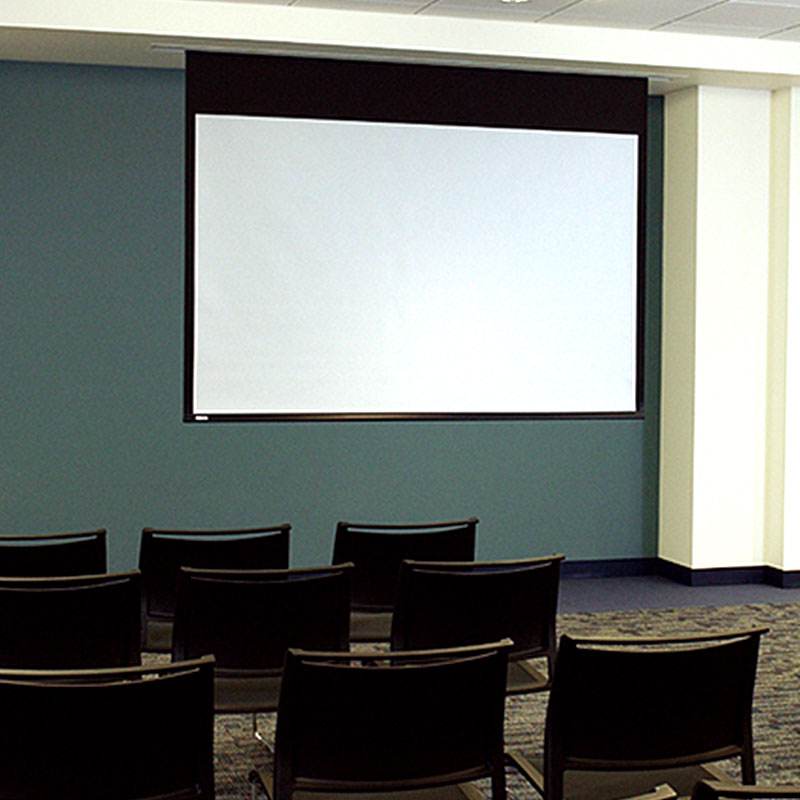

The Draper Access E is a ceiling-recessed projection screen configured here as a 133" HDTV (16:9) electric model with the Matt White XT1000E surface. This in-ceiling motorized projection screen conceals completely into the ceiling when retracted, making it a clean fit for conference rooms, boardrooms, and training rooms that need a large 16:9 image without a permanently visible screen. The unity-gain Matt White surface delivers accurate color across a 180° viewing cone. Supplied by Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Access E electric projection screen is engineered for integrators specifying a concealed, motorized image surface in commercial meeting spaces. It is a free-hanging Series E (non-tensioned) screen: flatness is maintained by the weight of the viewing surface and a bottom dowel, and the screen drops from a recessed case that installs into a ceiling pocket with a trim flange for a finished appearance. This 133" model is supplied with the Matt White XT1000E surface, a smooth, non-embossed OptiView surface with 1.0 gain and a 180° viewing cone that is GREENGUARD Gold certified; alternate Access E surfaces are available on request. The case measures 7-3/8" high x 8-1/16" deep (19 cm x 20 cm) including the trim flange, ships white as standard with black available on request, and includes a detachable bottom access panel for service plus adjustable hoisting brackets for lifting during installation. Quick-connect wiring lets the case be installed early in the build and the screen added later, easing coordination on new construction and renovation projects. The screen ships with a 110V, 3-position switch as standard, with quiet low-voltage motors and 220V options available, and low-voltage, video-interface, or third-party controls (including Crestron and Control4) can be built into the housing for below-ceiling access. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system, and browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Ceiling-recessed concealment — The screen and case install into a ceiling pocket and disappear from view when retracted for a finished architectural look.
• 133" HDTV 16:9 format — A large widescreen image sized for presentations, video, and collaboration in mid-to-large commercial rooms.
• Matt White XT1000E surface — Unity 1.0 gain with a 180° viewing cone and GREENGUARD Gold certification for accurate color across wide seating.
• Free-hanging non-tensioned design — Flatness is maintained by the weight of the surface and a bottom dowel, keeping the Series E surface flat without tab-tensioning.
• Detachable bottom access panel — Opens for straightforward service and maintenance without removing the full case.
• Quick-connect wiring — Allows the case to be installed early in construction and the screen added later, easing project scheduling.
• Flexible motor and control options — 110V 3-position switch standard, with quiet low-voltage and 220V options and control-system integration built into the housing.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms requiring a concealed, motorized widescreen screen
• Training rooms and commercial meeting spaces with fixed front projection
• Multi-purpose rooms and all-hands spaces that need the screen hidden when not in use
• Government and corporate briefing spaces needing clean, recessed AV integration
• Higher-education classrooms and lecture spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How is the Access E installed in a ceiling?

It is a ceiling-recessed screen that installs into a ceiling pocket, finished with a trim flange. Adjustable hoisting brackets assist lifting during installation, and sliding brackets on top of the case allow mounting adjustment. Quick-connect wiring lets the case be installed early and the screen added later.

What surface does this 133" model use, and can it be changed?

This unit is configured with the Matt White XT1000E surface, a unity-gain (1.0) OptiView surface with a 180° viewing cone. Additional Access E surfaces, including Contrast Grey XH800E and the acoustically transparent ClearSound White Weave XT900E, are available. Contact us to configure an alternate surface.

What projectors and mounts are compatible with this screen?

The Access E works with any commercial front projector matched to its 133" 16:9 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the screen be integrated with a room control system?

Yes. Low-voltage, video-interface, or third-party controls (including Crestron and Control4) can be built into the housing for below-ceiling access, and quiet low-voltage motor options are available for near-silent operation in occupied rooms.

What power and motor options are available?

The screen ships with a 110V, 3-position switch as standard. Quiet low-voltage motors and 220V options are available to suit the installation and control requirements.

What warranty and support are included?

The Access E carries Draper's 5-year warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
