Draper Access E, 109", 16:10, Matt White XT1000E, 110 V - 139114

Product Overview

The Draper Access E (139114) is a ceiling-recessed motorized projection screen that fully conceals the screen above the finished ceiling when retracted for commercial AV integration. This configuration delivers a 109" diagonal 16:10 image on the Matt White XT1000E viewing surface (1.0 gain, 180° viewing angle), making it well suited to conference rooms and corporate meeting spaces. It installs as a ceiling-recessed motorized projection screen and ships with a standard 110-120V three-position control switch.

Product Description

The Access E is engineered for small to mid-size boardrooms, university classrooms, and training rooms that need a concealed, ceiling-recessed widescreen projection screen. The free-hanging surface stays flat under the weight of the viewing surface and a bottom dowel, while the motor is concealed inside the roller for a clean, low-profile case. The screen retracts completely into its ceiling-recessed steel case, 7-3/8" high x 8-1/16" deep including trim flange, so the projection screen disappears when the room is used for other purposes.

The Matt White XT1000E surface offers 1.0 gain and a 180° viewing angle, and it delivers neutral, accurate brightness and is GREENGUARD Gold certified for controlled-ambient rooms. At 109" in a 16:10 aspect ratio, this size matches the throw distances and seating depths typical of conference rooms and corporate meeting spaces. Maximum image width on this model reaches 16' (488 cm), and the case carries a UL listing. The screen is electrically operated by a tubular motor mounted inside the roller, instantly reversible with an electric brake, and can be paired with the Quiet Motor or LVC-IV low-voltage controller as factory-built options for AV system integration.

Compare related Draper motorized screens at Creation Networks, including the full Draper projection screen collection and other electric screen lines such as the Access E, Premier, Targa, and Ultimate Access series.

Key Features

• Matt White XT1000E viewing surface — 1.0 gain, 180° viewing angle. The surface delivers neutral, accurate brightness and is GREENGUARD Gold certified for controlled-ambient rooms.
• Motor-in-roller design — The tubular motor is concealed inside the roller for quiet operation and a low-profile case.

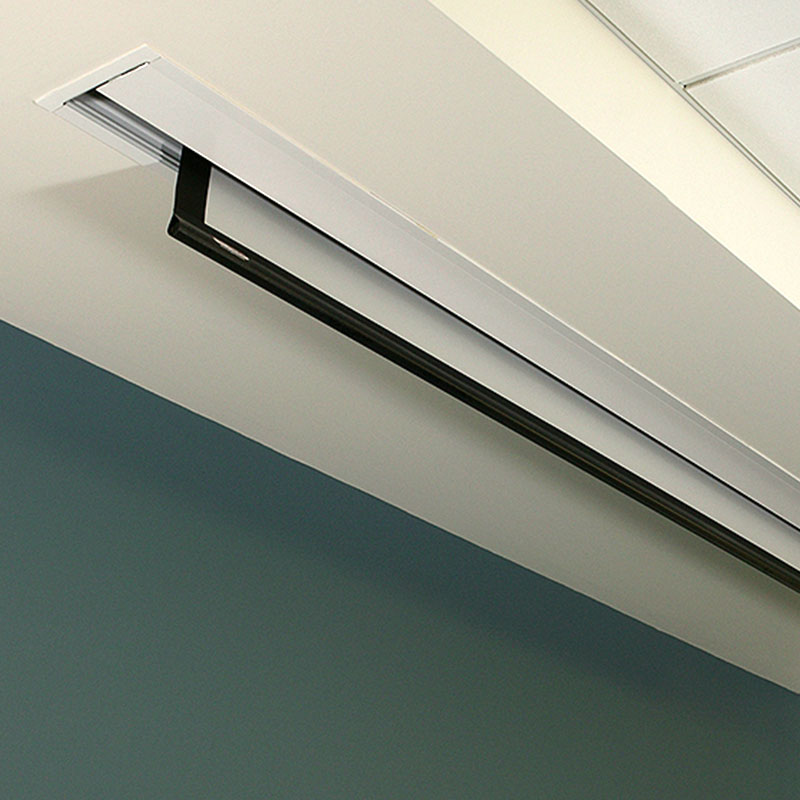

• Ceiling-recessed concealment — The screen retracts above the finished ceiling and is hidden when not in use.
• Case-now, screen-later install — Quick-connect wiring lets the case be set during rough-in and the screen added at finish stage.
• 16:10 image format — Native 16:10 geometry at 109" diagonal for conference rooms and corporate meeting spaces.
• Standard 3-position control — Ships with a 110-120V up/stop/down wall switch; LVC-IV and 220V options are factory-built.
• UL listed, 5-year warranty — UL-listed assembly backed by Draper's 5-year warranty for commercial deployment.

Typical Applications

• Conference room
• Boardroom
• Training room
• University classroom
• Government meeting space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What surfaces are available on the Access E?
Matt White XT1000E (unity gain), Contrast Grey XH800E, the acoustically transparent ClearSound White Weave XT900E, and Chroma Key Green. This SKU ships with Matt White XT1000E.

Can the case be installed before the ceiling is finished?
Yes. Quick-connect wiring supports a case-now, screen-later workflow — the housing is set during rough-in and the viewing surface is added at finish stage.

What control options integrate with an AV system?
The standard 110-120V 3-position switch is included. A Quiet Motor, LVC-IV low-voltage controller, and 220V operation are available as factory-built options for control-system integration.

Is the Access E suitable for ceiling-recessed installation?
Yes. The Access E is purpose-built for ceiling-recessed mounting and fully conceals the screen above the finished ceiling when retracted.

What is the maximum image width?
Up to 16' (488 cm) wide depending on surface selection; custom sizes are available from Draper.

What warranty and certifications apply?
The Access E is UL listed and backed by Draper's 5-year commercial warranty.
