The AirMedia® Series 3 Receiver 200 (AM‑3200‑WF) from Crestron enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.
Connect and Present

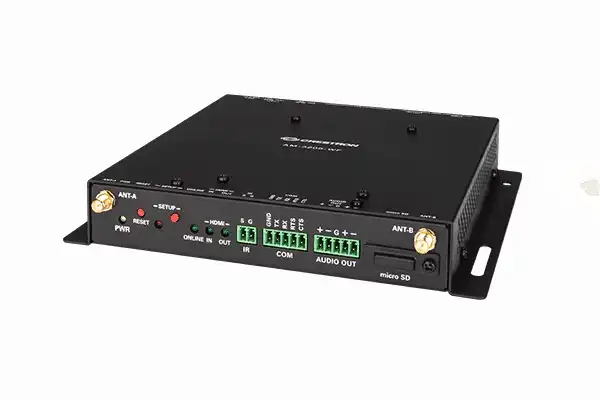

The Receiver mounts invisibly behind or beside a wall-mount display and enables a smart room with wireless collaboration. It features AirMedia wireless presentation capability, an HDMI® output to the display (up to 4K), an HDMI input, and various USB interfaces for wireless conferencing and touch interactivity. Connect your laptop, smart phone, tablet, AirMedia Connect adapter, or another source type to instantly present the source image on the display.
AirMedia Wireless Presentation
With AirMedia technology, users can wirelessly present content from laptops, smartphones, and tablet devices via built in Wi‑Fi® network capabilities or via an external Wi‑Fi® wireless network. Present content from desktop or laptop computers using downloadable client software, the AirMedia extension for the Google Chrome™ web browser, or Miracast® screen mirroring technology (Windows® 10 computers only). Present content from Android™ and iOS® mobile devices with the AirMedia app.
HDMI Connectivity
In addition to AirMedia, the AM‑3200‑WF includes an HDMI input for direct connection of a local source, such as a Mini PC, or a portable laptop computer via an optional wall plate or cable. The HDMI input supports HD 1080p/60 signals.2
Features
- Complete room solution enables secure wired and wireless presentation with AirMedia® wireless presentation from laptops, smartphones, tablet devices, and AirMedia Connect Adapters
- Integration friendly features such as HDMI® input, balanced audio output, and display control via RS‑232 and IR
- Enables smart automation via intelligent display control, personal device control, occupancy detection, and integration into a broader connected ecosystem
- Enterprise-grade security and content encryption protects privacy and ensures compliance with IT policies
- XiO Cloud® service support for remote provisioning and management (coming soon)
- AirMedia Canvas enables content sharing with simultaneous windows for multi-user collaboration. Present up to two sources out of the box or up to nine sources with a software license (sold separately, coming soon)
- Wireless conferencing and presentation allows for collaboration with in‑room and remote participants (license required, coming soon)
- Integrates with Appspace® digital signage software platform for content display when system is not in use (coming soon)
- Integrates with optional Kaptivo® Whiteboard Device to display and share whiteboard content (coming soon)
Specification
Crestron AM-3200-WF Specifications
| Communications | |
| Ethernet | 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant |
| Wi-Fi | Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz); Up to 100 ft (30 m) range at 80 Mbps, subject to site‑specific conditions |
| AirMedia | Via Ethernet: IPv4, mDNS, TLS, AES1; Via wireless access point: IEEE 802.11/b/g/n/ac/ax, 2.4 GHz or 5 GHz |
| USB Host | USB 2.0 for connecting a USB conferencing peripheral; USB 3.0 for connecting a USB conferencing peripheral |
| USB Device | USB 3.0 for computer console (installer setup and firmware update) or conference system |
| RS-232 | 2-way display device control up to 115.2k baud with hardware and software handshaking |
| IR/Serial | 1-way display device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5V) up to 19.2k baud |
| HDMI Input | HDCP 1.4, EDID; Supports management of HDCP and EDID |
| HDMI Output | HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID |
| AirMedia1 | |
| OS Support | Apple® iOS®, Android™, Windows 10, Windows 11, macOS®, Chrome OS™ |
| Video Frame Rate | Up to 30 fps, audio supported NOTE: Audio is not supported on Android devices. |
| Output Resolutions | 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Bitrate Peak | 0.25 to 8.5 Mbps, variable depending on content complexity |
| Bitrate Average | 1.4 Mbps typical NOTES:
|
| Audio Format | Stereo |
| Wireless Conferencing | |
| OS Support | Windows 10 |
| Supported Conferencing Services |
Microsoft Teams software; |
| Supported Conferencing Peripherals | For a list of supported conferencing peripherals, refer to OLH 1001764. |
| Video | |
| Input Signal Types | AirMedia, HDMI (DVI & Dual-Mode DisplayPort™ compatible2); Simultaneous display of up to four sources with AirMedia Canvas3 |
| Maximum Input Resolutions | HDMI Input: 1920x1080@60Hz (HD 1080p60); AirMedia presentation: 1920x1080@30Hz (1080p30); AirMedia Connect Adapter: 3840x2160@30Hz (4K30) NOTES:
|
| Output Signal Types | HDMI (DVI compatible2) |
| HDMI Output Resolutions | 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz,6 1366x768@60Hz,6 1440x900@60Hz,6 1600x900@60Hz,6 1600x1200@60Hz, 1680x1050@60Hz,6 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz (2160p30), 3840x2160@50Hz (2160p50), 3840x2160@60Hz (2160p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Background & Logo File Support | GIF, JPEG, PNG |
| Audio | |
| Input Signal Types | AirMedia, HDMI (Dual-Mode DisplayPort™ compatible2) |
| Output Signal Type | HDMI |
| Input/Output Format | 2 channel LPCM |
| NOTE: Audio input signals are passed to the output without any processing. Volume control capability requires a display device with discrete volume, up, down, and mute commands available via CEC, IP, IR, or RS‑232. | |

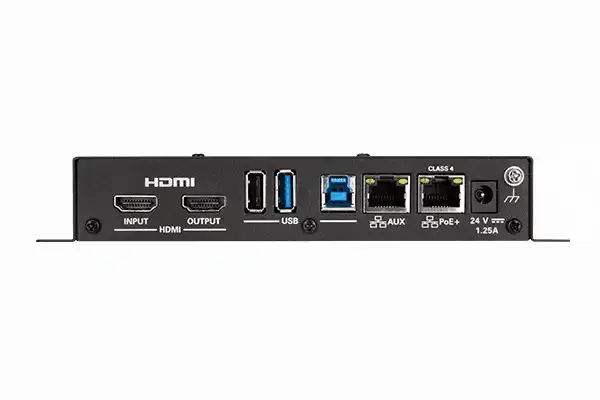

| Connectors | |
| ANT‑A & ANT‑B | (2) SMA connectors for external Wi‑Fi antennas; Wi‑Fi antennas included with 6.56 ft (2 m) cables |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port for display device control; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5V) up to 19200 baud NOTE: IR port #2 is not used. IRP2 emitter sold separately. |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port for display device control; Up to 115.2k baud, hardware and software handshaking support |
| AUDIO OUT | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 ohms balanced, 100 ohms unbalanced |
| microSD | For future use |
| HDMI INPUT | (1) HDMI Type A connector; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible2) |
| HDMI OUTPUT | (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible2) |
| USB | (2) USB Type A connectors; For future use (1) USB Type B connector; USB 3.0 device port for computer console |
| LAN PoE+ | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port and PoE+ Class 4 |
| LAN AUX | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port; Connects to a secondary, guest‑only network |
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2412WU power pack sold separately |

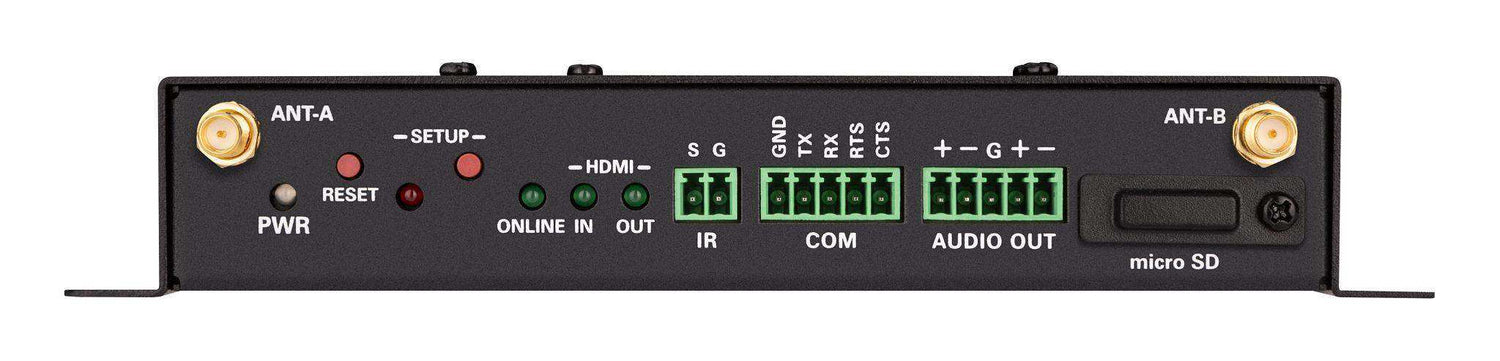

| Controls and Indicators | |
| PWR | (1) Green LED, indicates operating power supplied via the local power pack or PoE+ |
| RESET | (1) Recessed push button for hardware reset |
| SETUP | (1) Recessed push button for onscreen IP address display and for pairing the device to an AM‑TX3‑100; (1) Red/White LED, indicates pairing status |
| ONLINE | (1) Green LED, indicates control system connection |
| HDMI IN/OUT | (2) Green LEDs, indicate HDMI signal presence at the HDMI input/output |
| microSD | For future use |
| LAN PoE+ | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| LAN AUX | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power | |
| Power over Ethernet | IEEE 802.3af Class 4 Powered Device |
| Power Pack (sold separately) | Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW‑2412WU |
| Power Consumption | 14 W (typical) |
| NOTE: When wireless conferencing is used, the receiver must be powered by either Power over Ethernet+ (PoE+) or a power pack (sold separately). | |
| Environmental | |
| Temperature | 32° to 104°F (-0° to 40° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 47.8 BTU/hr |
| Construction | |

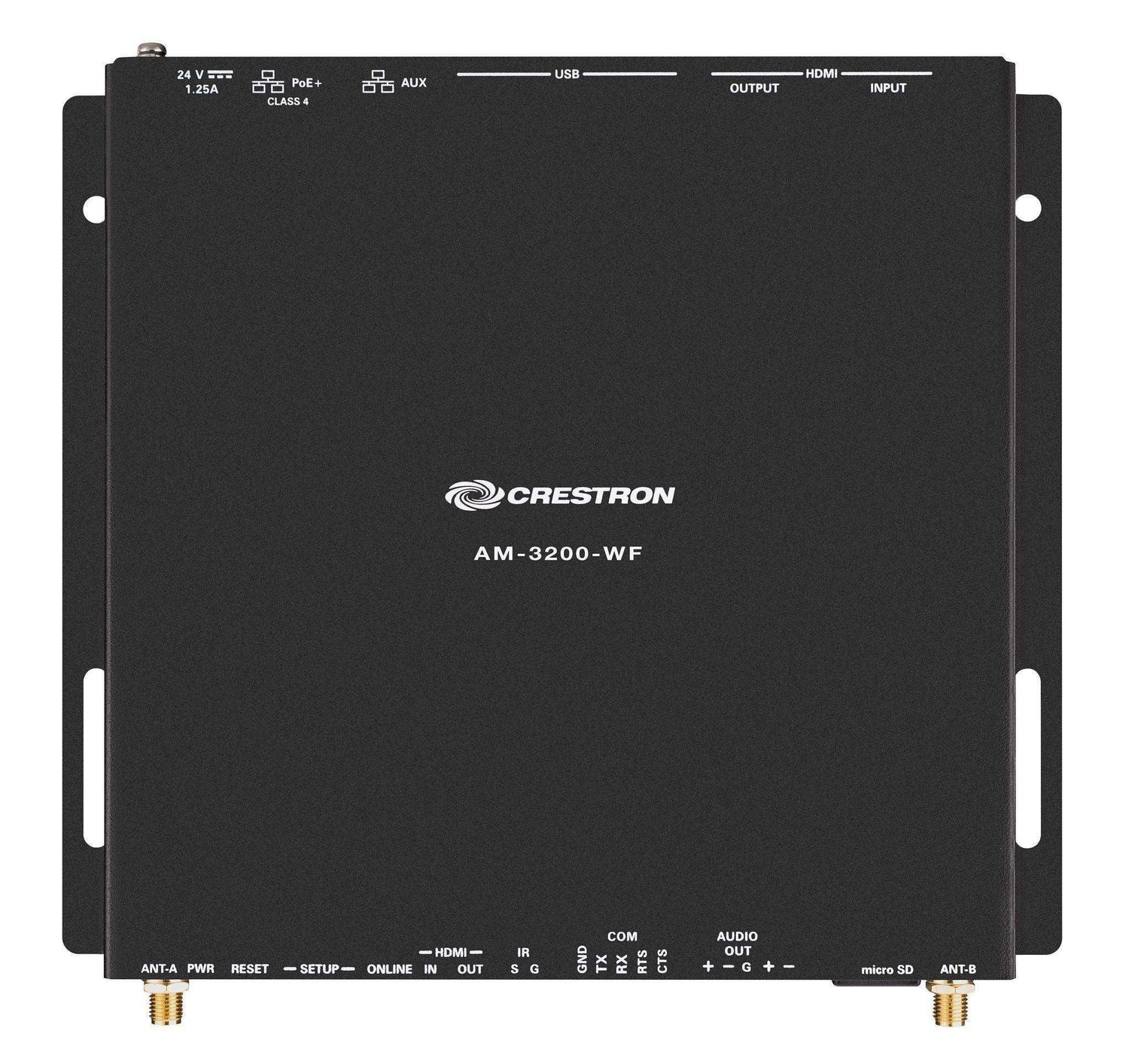

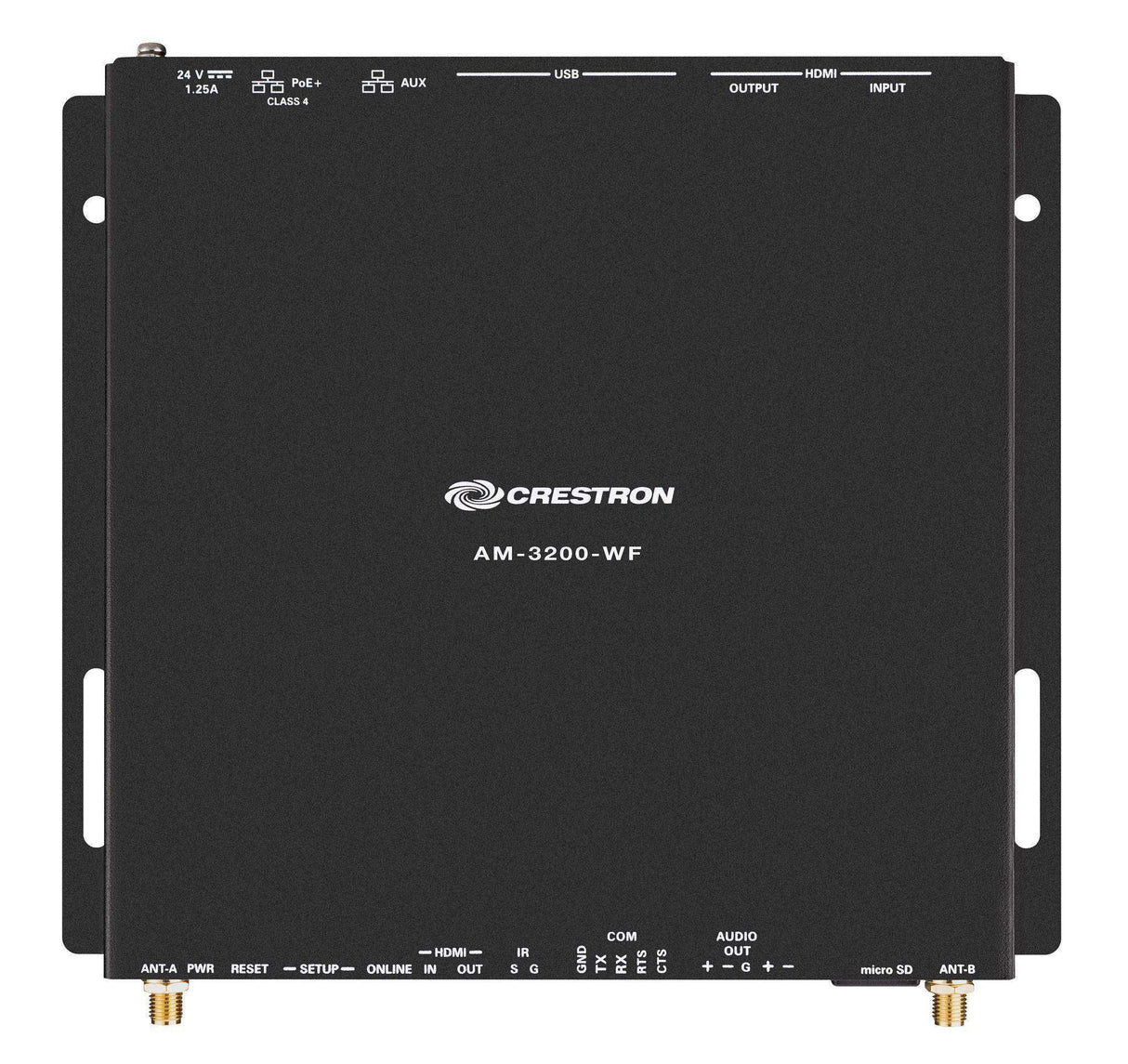

| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Dimensions | |
| Height | 1.26 in. (33 mm) |
| Width | 7.40 in. (188 mm) |
| Depth | 6.93 in. (177 mm) |
| Weight | |
| 1.9 lb (0.86 kg) | |
| Compliance | |
|
Regulatory Model: M202011001 UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device |
|
