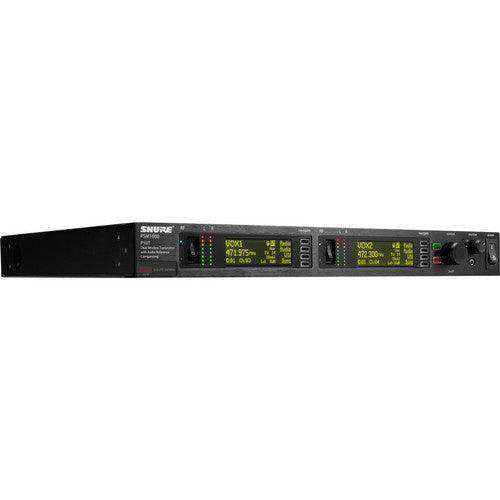

Shure P10T PSM®1000 Dual Rack Unit Transmitter - P10T=-X55
Product Overview
The Shure P10T is a networkable, full-rack, dual-channel wireless transmitter for the PSM 1000 Personal Monitor System, supplied here in the X55 frequency band. It transmits up to two independent program channels to P10R bodypack receivers, making it suited to professional in-ear monitoring in houses of worship, broadcast studios, and auditoriums. Networked remote control through Shure Wireless Workbench lets technicians manage frequencies and levels across a rack of transmitters.
Product Description
The P10T dual-channel transmitter is the rack-mount core of the Shure PSM 1000 in-ear monitoring system, used with the P10R wireless bodypack receiver. Each unit transmits two programs simultaneously on different frequency channels, supporting stereo or dual-mono monitor mixes for performers and presenters. A wide 72 MHz tuning bandwidth eases frequency coordination in RF-congested venues, and selectable RF output power of 10, 50, or 100 mW lets technicians match coverage to the space. Networked remote control via Wireless Workbench allows monitoring and adjustment of the transmitter from a front-of-house or equipment-room position, which is valuable for installed systems and touring racks alike. Audio and network connectivity include balanced 1/4-inch and XLR inputs, loop out, dual Ethernet ports, and a headphone monitor output. This configuration ships in the X55 band; confirm the band matches the local RF spectrum plan before deployment.
Key Features
- Dual-Channel Transmission — Transmits up to two independent programs simultaneously on different frequency channels for stereo or dual-mono monitoring.
- Wide 72 MHz Tuning Bandwidth — A broad tuning range eases frequency coordination in RF-congested venues.
- Selectable RF Output Power — 10, 50, or 100 mW output lets technicians match transmitter coverage to the venue.
- Networked Remote Control — Monitor and adjust the transmitter over the network using Shure Wireless Workbench software.
- Comprehensive Connectivity — Balanced 1/4-inch and XLR inputs, loop out, dual Ethernet ports, and a headphone monitor output.
- PSM 1000 System Core — Works with the P10R bodypack receiver as part of the touring-grade PSM 1000 personal monitor system.
Typical Applications
- House of worship
- Broadcast studio
- Auditorium
- Multi-purpose room
Technical Specifications
| Model / SKU | P10T=-X55 |
| Type | Dual-channel full-rack wireless transmitter (PSM 1000) |
| Frequency Band | X55 |
| Tuning Bandwidth | 72 MHz |
| RF Output Power | Selectable 10, 50, 100 mW (+20 dBm) |
| Frequency Response | 35 Hz to 15 kHz (±1 dB) |
| Signal-to-Noise Ratio | 90 dB (typical, A-weighted) |

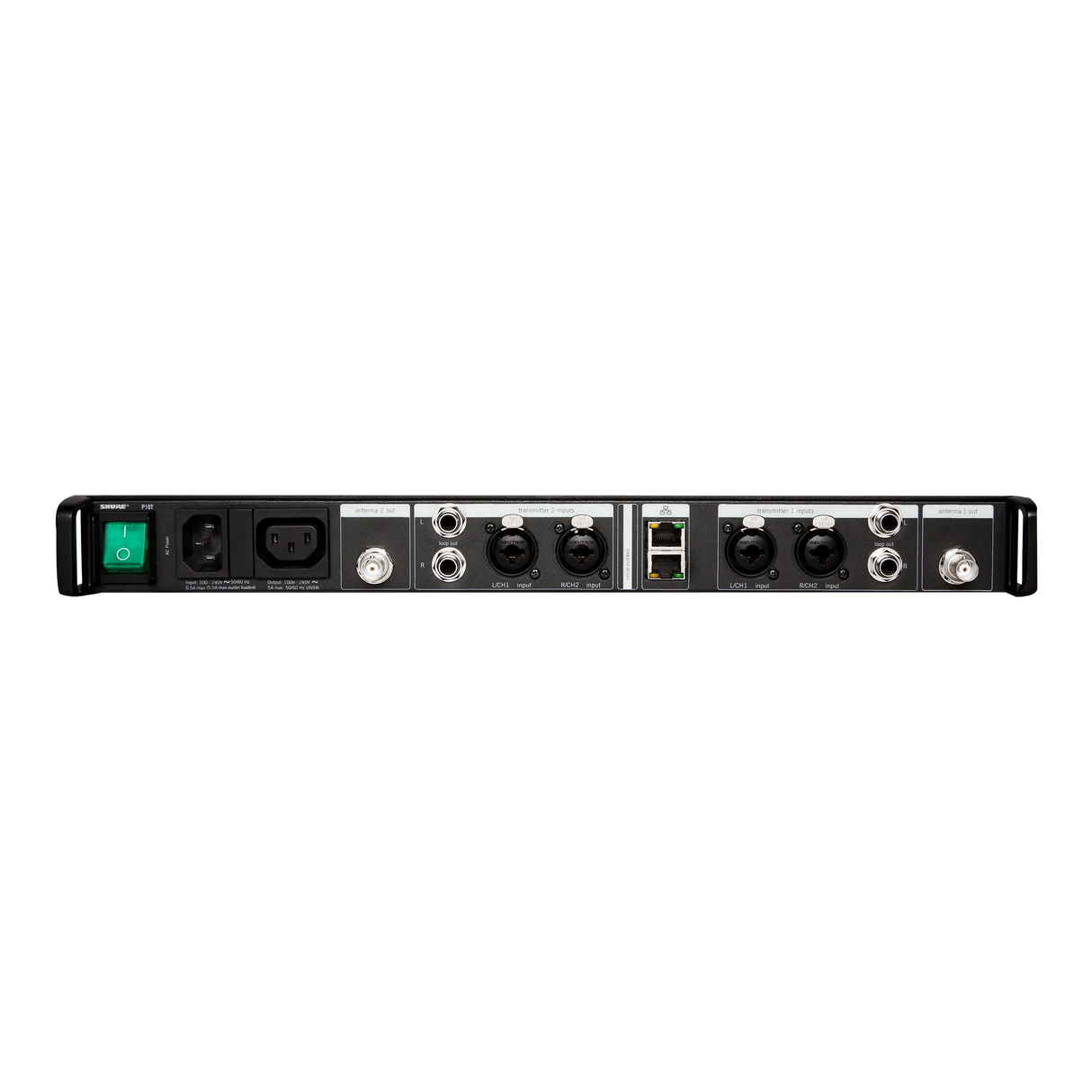

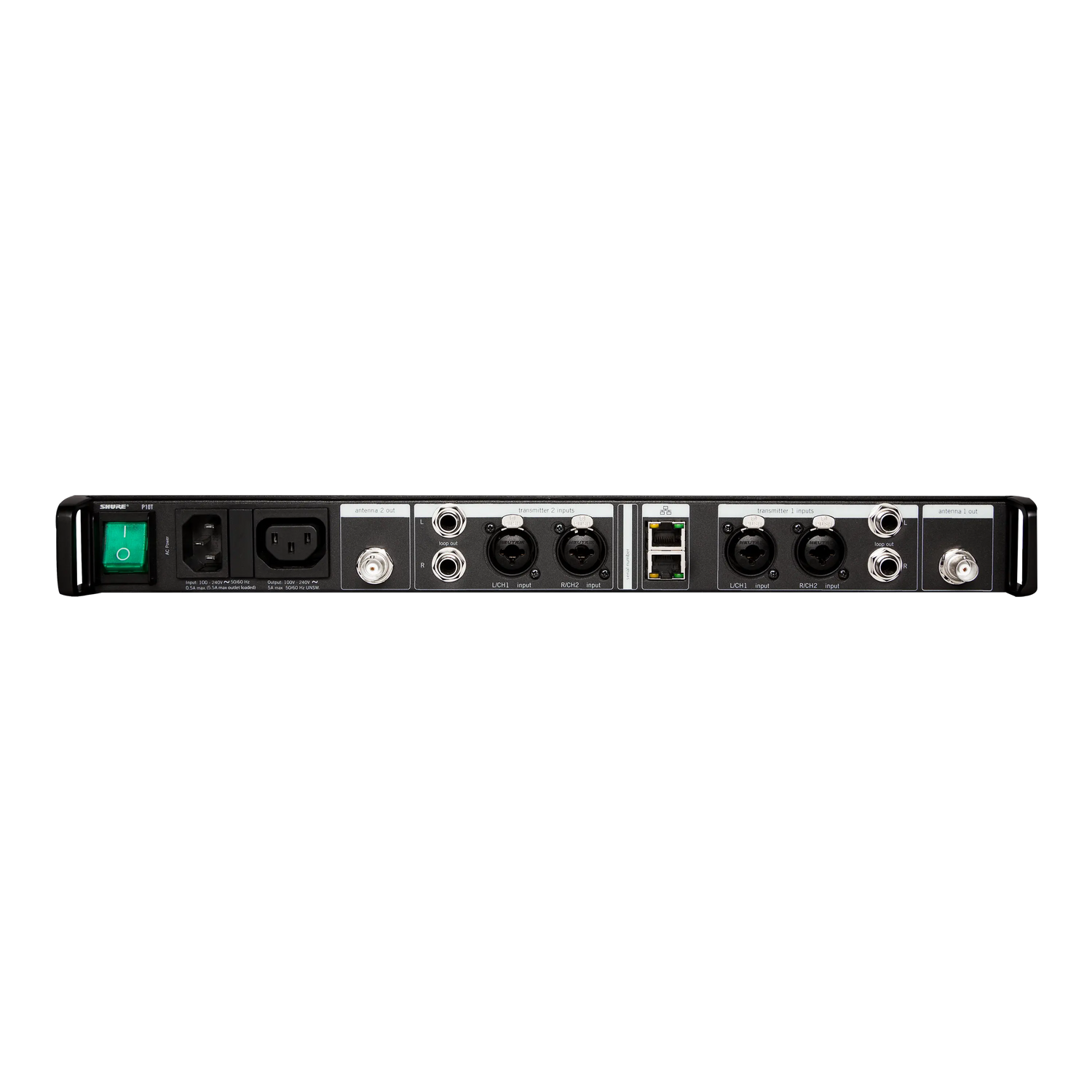

| Audio Connections | Balanced 1/4 in and XLR, loop out, dual Ethernet, headphone monitor out |
| Power Input | 100 to 240 VAC, 50/60 Hz, 0.5 A max |
| Control | Networked remote control via Wireless Workbench |
Frequently Asked Questions
What receiver does the P10T work with?
The P10T transmits to the Shure P10R wireless bodypack receiver as part of the PSM 1000 Personal Monitor System.
How many channels does one unit transmit?
Each P10T is dual-channel and transmits up to two programs simultaneously on different frequencies, supporting stereo or two independent mono monitor mixes.
Which frequency band is this unit?
This configuration is the X55 band. Confirm the band is legal and clear in your region and coordinate frequencies before deployment.
Can it be controlled remotely?
Yes. The P10T supports networked remote control through Shure Wireless Workbench, allowing frequency and level management from a central position via its dual Ethernet ports.
What warranty applies?
This product is covered by the Shure manufacturer warranty. Contact Creation Networks for current warranty terms and professional audio support.
