ChamSys QuickQ DIN

Product Overview

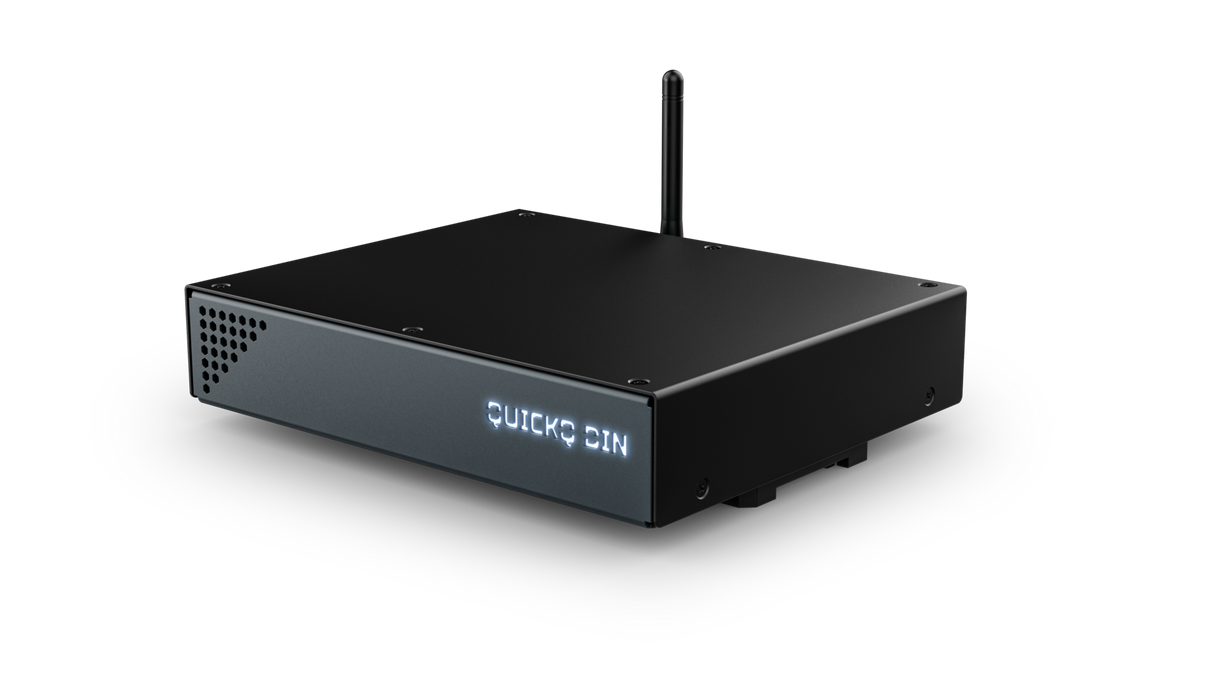

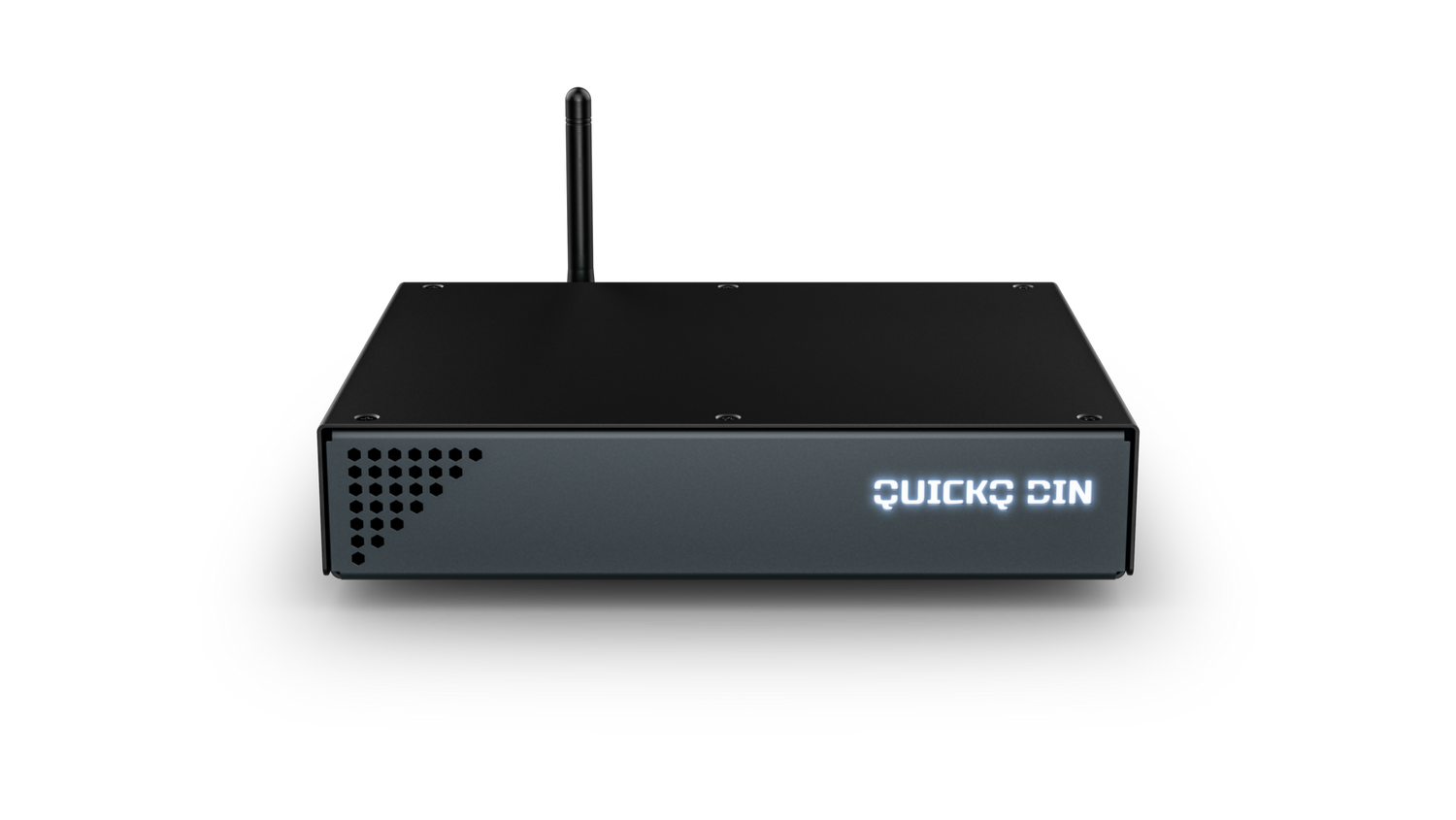

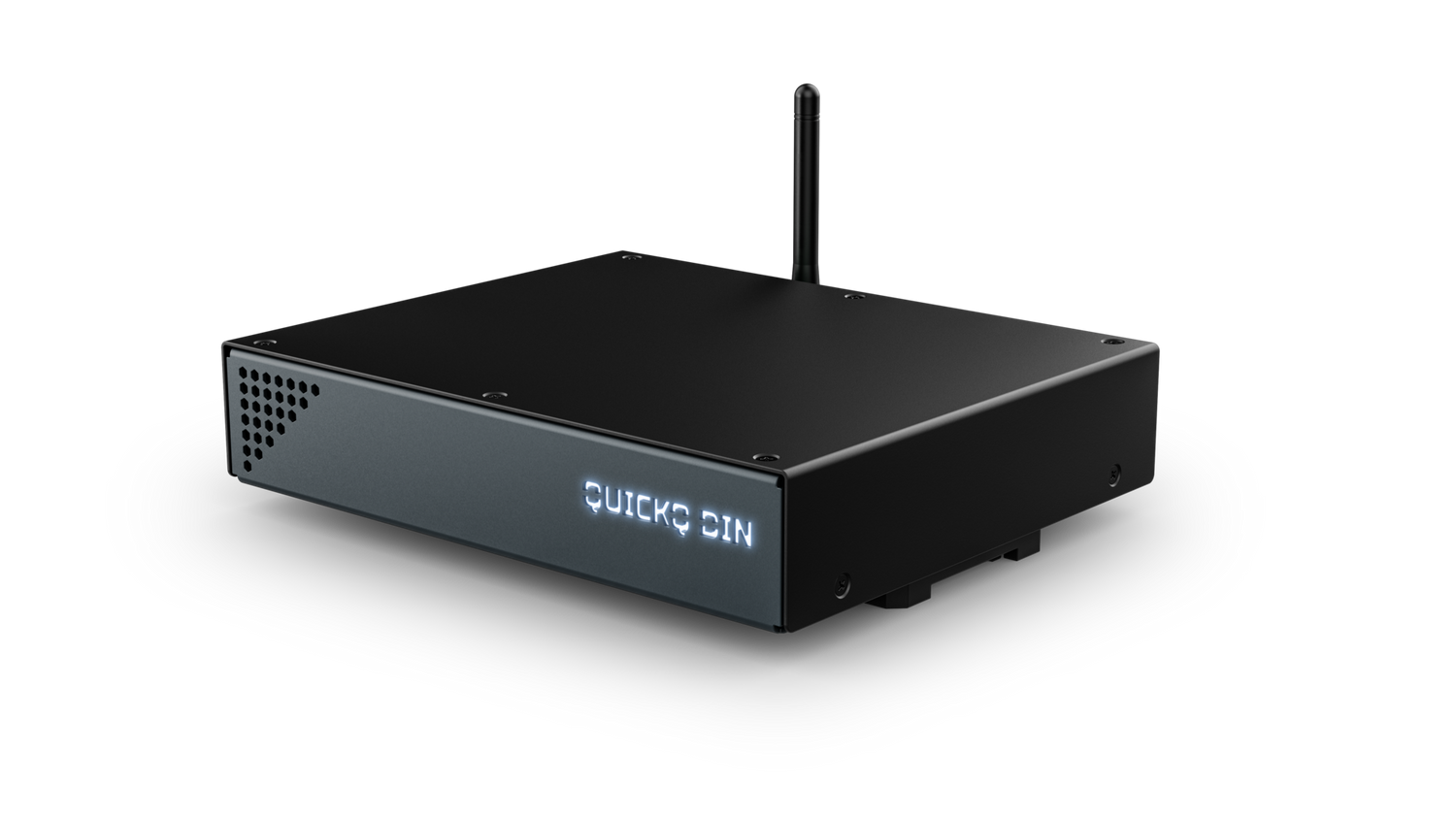

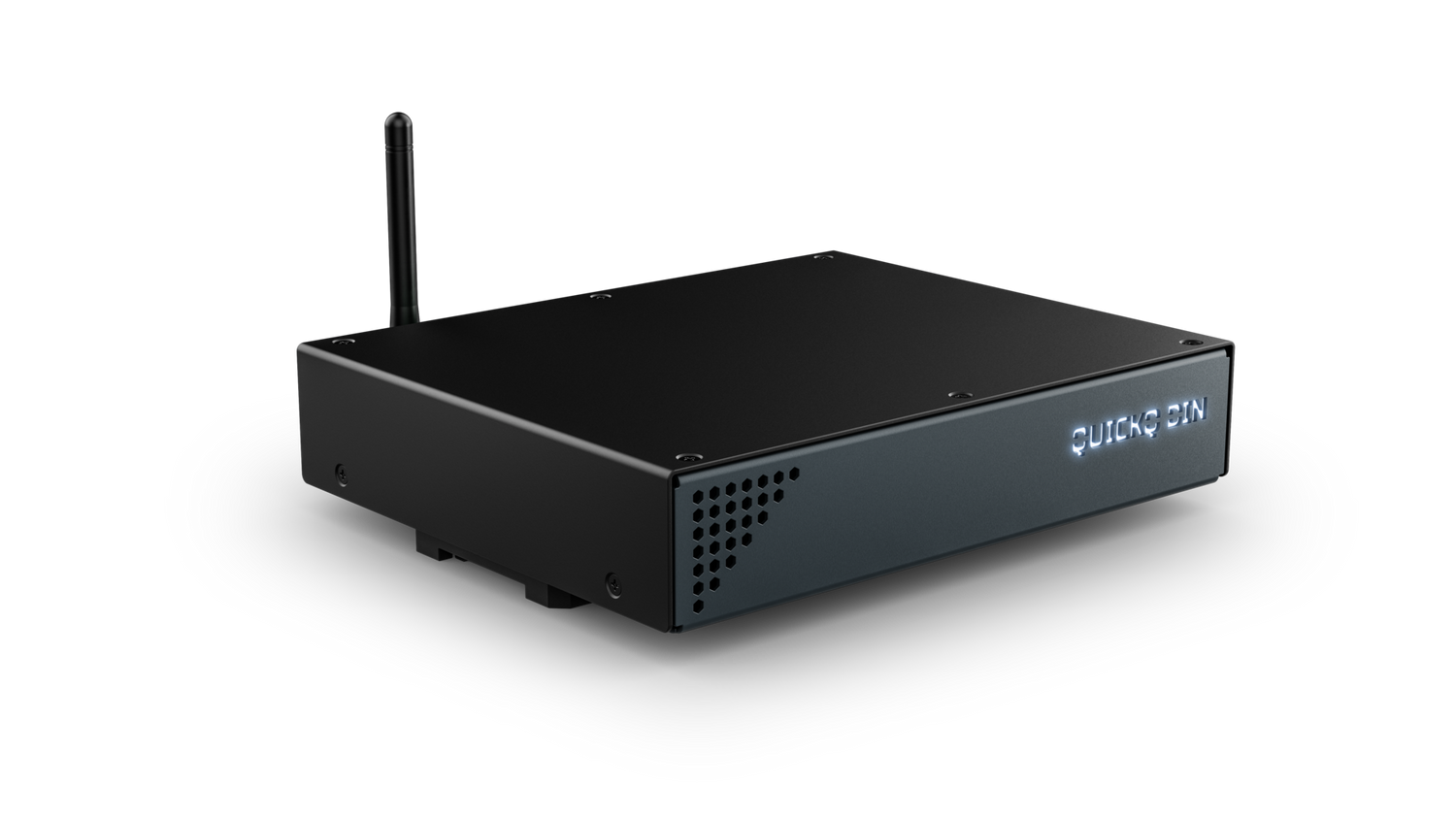

The ChamSys QuickQ DIN is a DIN rail mount lighting control console built for permanent installations where panel and rack space is limited. It delivers the full QuickQ software feature set in a compact enclosure, controlling up to four DMX universes over Art-Net or sACN. This architectural lighting controller suits house of worship, retail, hospitality, and venue install lighting control where a dedicated programming surface is not required. Integrators choosing a QuickQ DIN rail lighting controller get inbuilt Wi-Fi programming and 10Scene wall plate support in a single unit.

Product Description

The QuickQ DIN runs the same intuitive QuickQ operating software used across the QuickQ console range, so programmers familiar with QuickQ consoles can commission and service installed systems without retraining. It outputs four universes of DMX (2048 channels) via network protocols and provides two RDM-enabled DMX outputs on Phoenix screw terminals for direct hardwired runs. RDM Autopatch speeds show patching, and a fixture library of over 48,000 files covers LEDs, dimmers, and moving lights.

Four 10Scene ports connect up to forty 10Scene wall plates, giving end users simple scene recall across multiple zones. Inbuilt Wi-Fi allows programming and remote control from a phone or tablet, while a single HDMI output drives a 1920 x 1080 external monitor for full-screen editing during commissioning. Hot-Takeover mode lets an external console assume control when required, making the QuickQ DIN a flexible base layer for installed lighting control systems. The unit mounts on standard DIN rail using the supplied clips and runs from a 12V DC supply.

Key Features

• Four DMX universes — Outputs 2048 channels over Art-Net or sACN for networked lighting control.

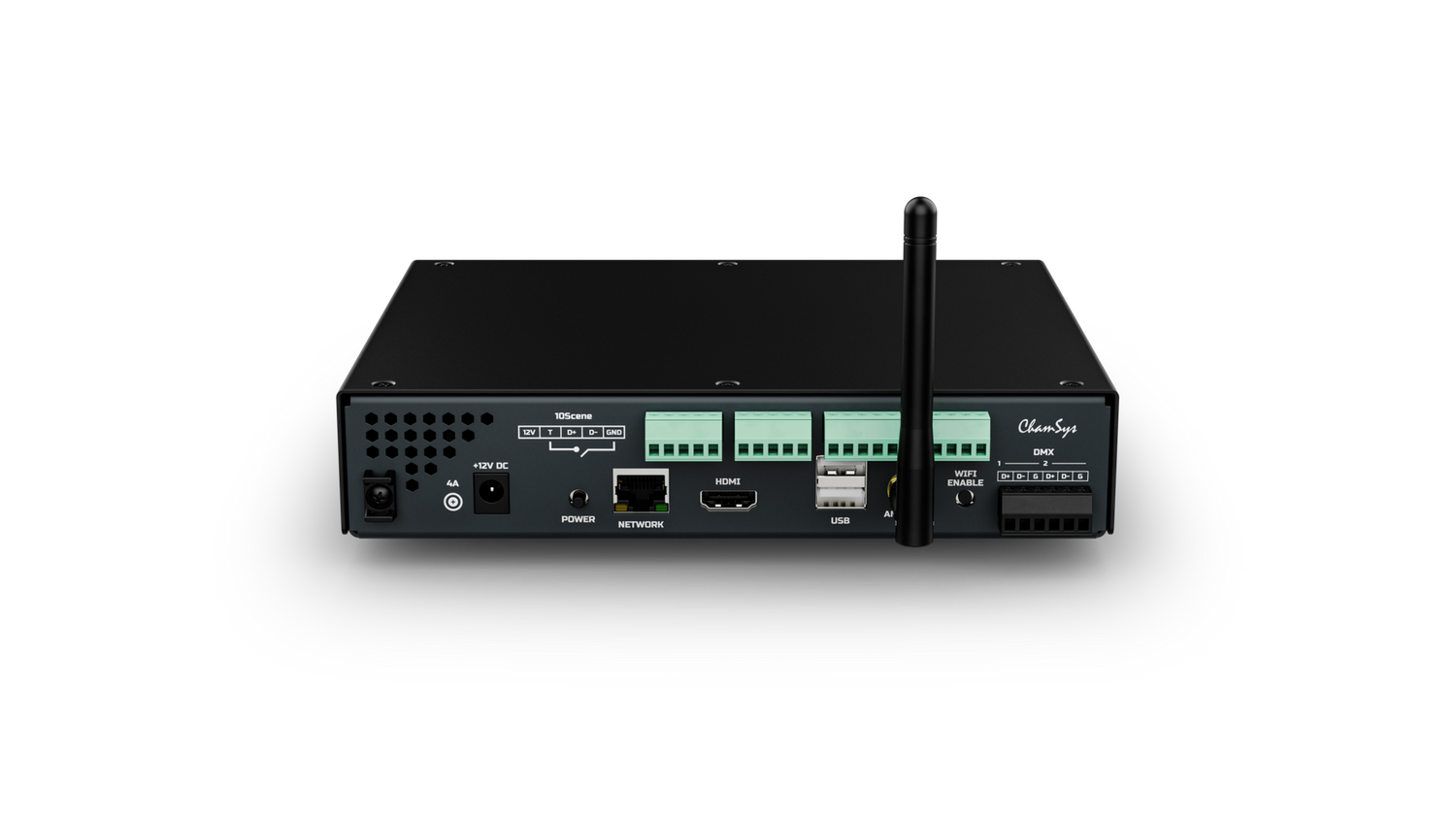

• Two RDM DMX outputs — Phoenix screw terminal outputs support direct DMX runs with RDM device management.
• 10Scene wall plate support — Four 10Scene ports connect up to forty wall plates for multi-zone scene recall.
• Inbuilt Wi-Fi — Programs and remote-controls the console from a phone or tablet without added hardware.
• Full QuickQ software — Includes Events, 10Scene, and Executes, matching the QuickQ console feature set.
• Hot-Takeover mode — Allows an external console to take control of the rig when needed.
• RDM Autopatch — Detects RDM fixtures for faster patching during commissioning.
• DIN rail form factor — Mounts in equipment cabinets where space is at a premium.

Typical Applications

• House of worship installations requiring fixed, low-profile lighting control.
• Retail and hospitality venues using 10Scene wall plates for staff scene recall.
• Architectural lighting zones controlled over Art-Net or sACN.
• Permanent install lighting systems where rack and panel space is limited.

Technical Specifications

Frequently Asked Questions

How many DMX universes does the QuickQ DIN control?

It controls four universes (2048 channels) output over Art-Net or sACN, plus two RDM-enabled direct DMX outputs on Phoenix screw terminals.

How is the QuickQ DIN mounted?

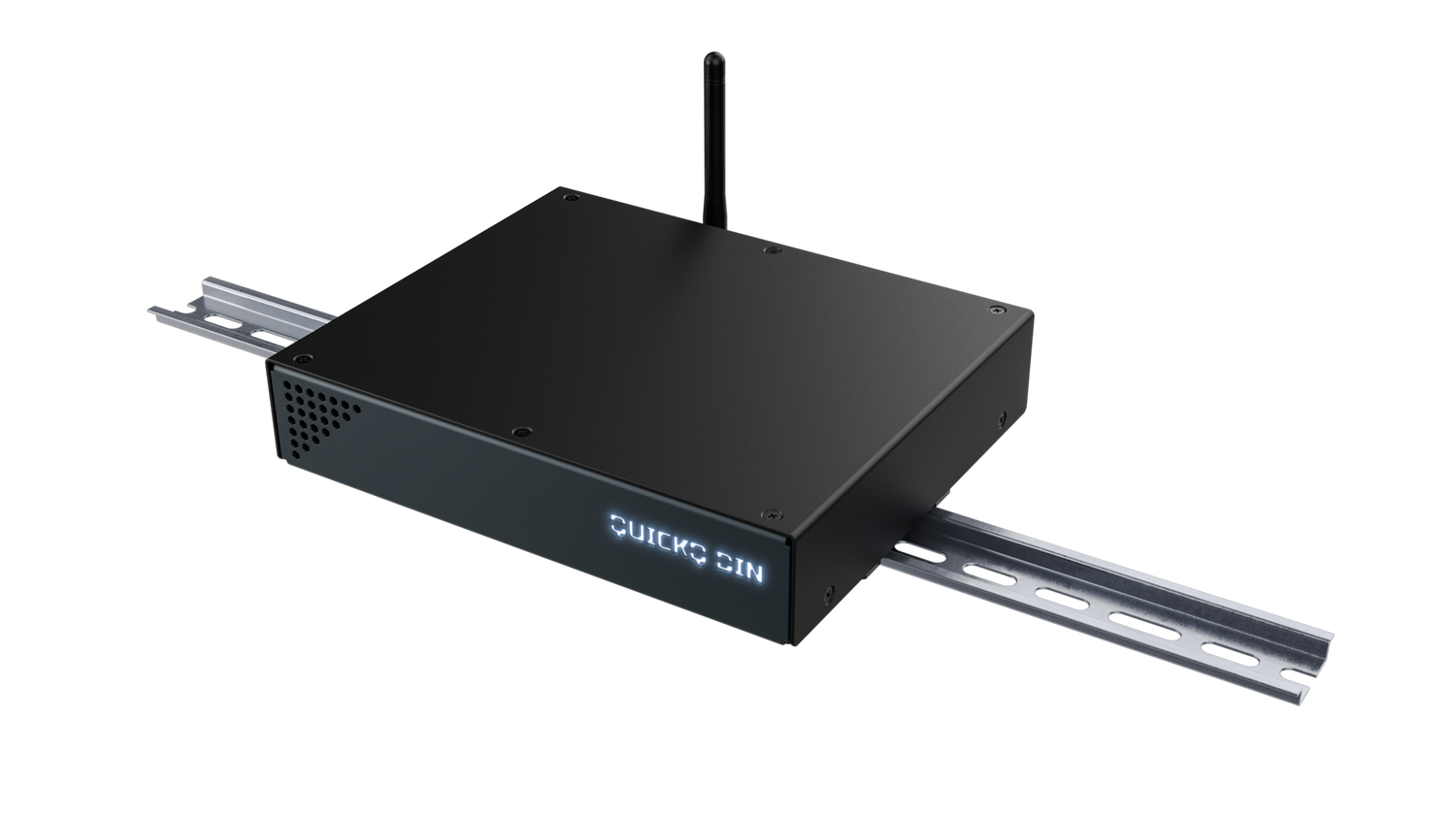

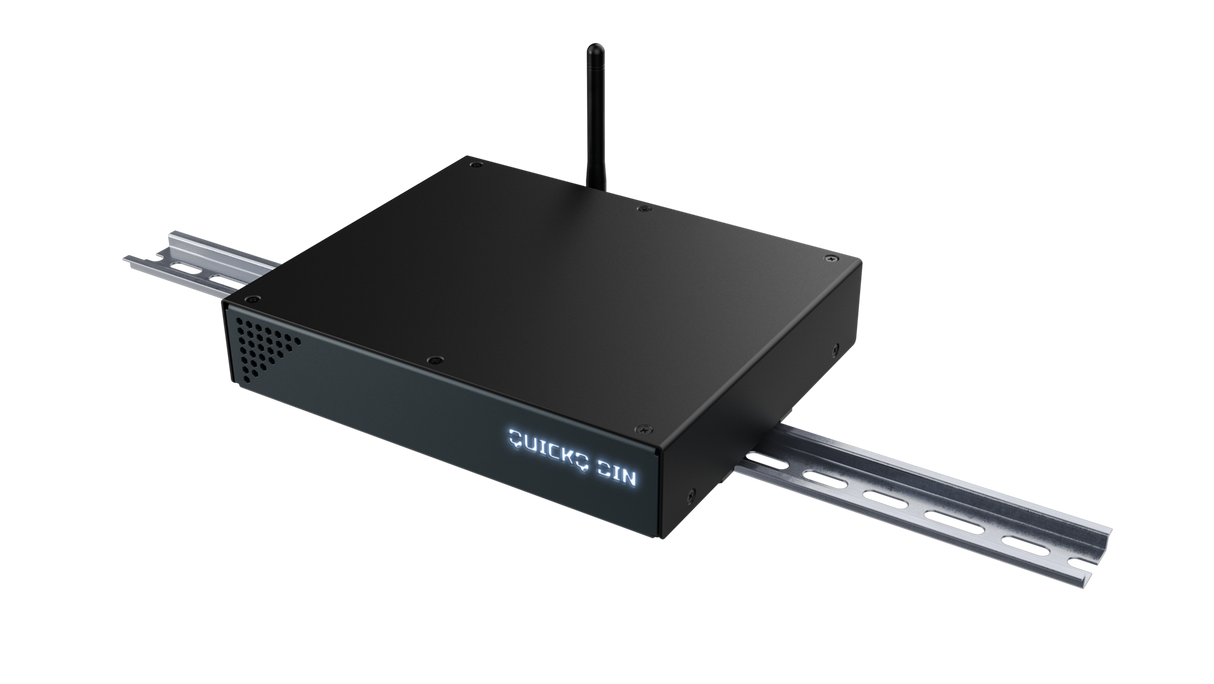

It mounts on standard DIN rail using the two supplied DIN rail clips and runs from the included 12V DC power supply, making it suitable for equipment cabinets and electrical enclosures.

Can it work alongside another lighting console?

Yes. Hot-Takeover mode allows an external console to take control of the rig when required, so the QuickQ DIN can serve as a base install layer.

Does it support 10Scene wall plates?

Yes. Four 10Scene ports support connection of up to forty 10Scene wall plates for multi-zone scene recall.

Is it programmed using the same software as QuickQ consoles?

Yes. It runs the full QuickQ software including Events, 10Scene, and Executes, and offline designer software is available for Windows and Mac.

What support and warranty options are available?

For warranty terms, software downloads, and technical support, contact our team at Creation Networks (https://creationnetworks.net).
