ChamSys MediaMaster VisionSC-UHD2 (2 x HDMI)
Product Overview

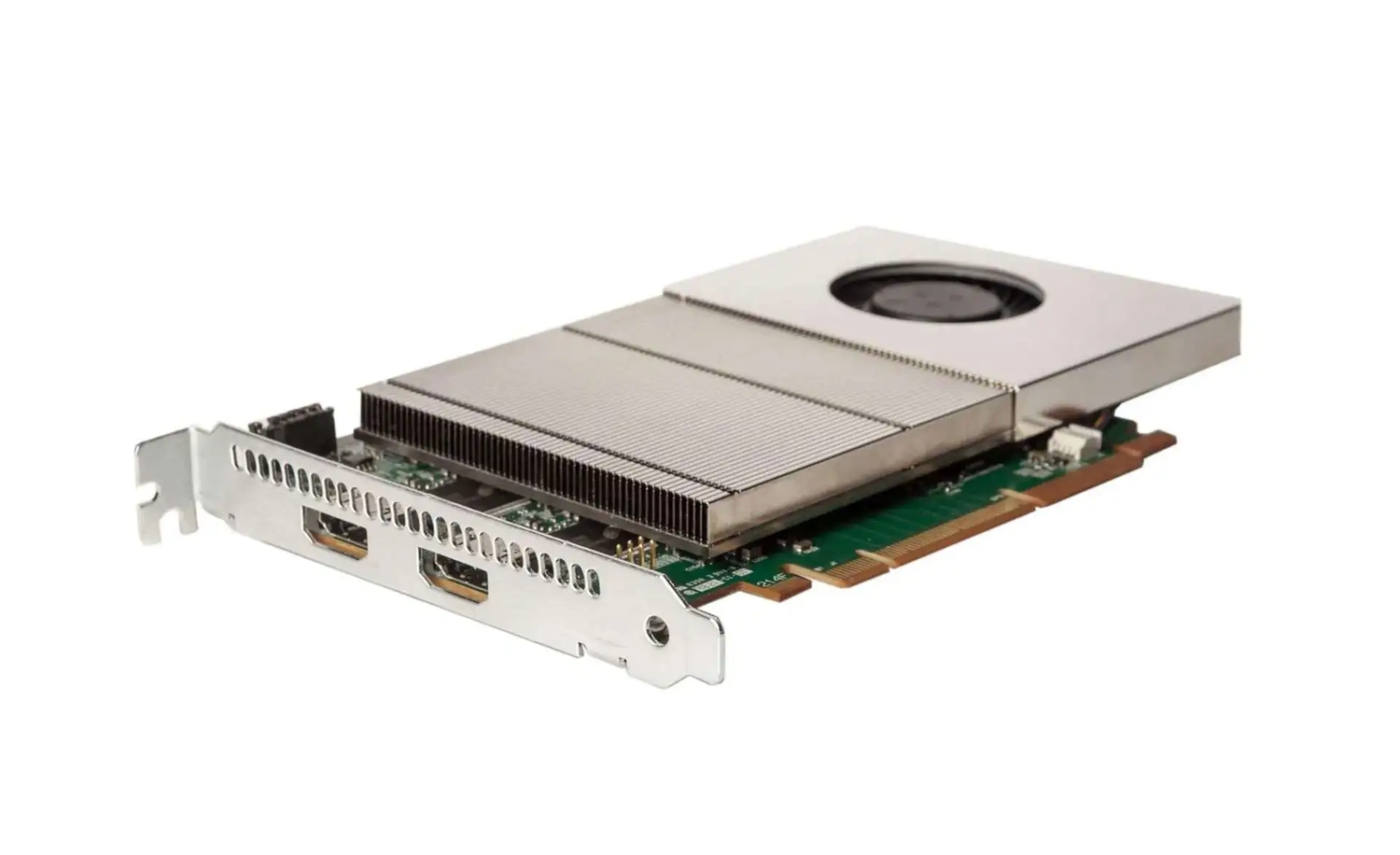

The ChamSys MediaMaster VisionSC-UHD2 is a two-channel HDMI 2.0 video capture card that adds 4K input to MediaMaster VS2+ and VS4+ media servers running MediaMaster software. This 4K HDMI capture card supports HDCP 2.2 at 4K60p with 4:4:4 chroma sampling, letting a media server ingest two ultra-high-definition video sources at once. It suits 4K live event capture, broadcast playback, and large-format LED productions where UHD source quality matters. The VisionSC-UHD2 installs in a PCIe x8 slot and ships with a VS4+ rear panel adapter plate.
Product Description
The VisionSC-UHD2 provides two HDMI 2.0 inputs, each capable of capturing 3840 x 2160p at 60fps. It includes LiveStream for single-line capture latency, MultiStream for multiple capture instances, and hardware timestamping for precise synchronization. HDMI signal conditioning supports longer cable runs, and automatic mode detection keeps source handling fast and reliable.
Frame-synchronized ganging combines the two inputs into a single dual-4K (8K x 2K) capture, useful for wide-format LED canvases. A flexible onboard Colour Space Converter and an advanced hardware scaling engine using polyphase multi-tap filtering deliver clean anti-aliased downscaling and accurate pixel replication on upscale. With 2GB of frame buffer memory and a PCIe x8 connection, the card feeds high-resolution live content into MediaMaster's playback, pixel mapping, and LED integration tools. The included VS4+ rear panel adapter plate supports installation into a MediaMaster VS4+ chassis.
Key Features
- Two HDMI 2.0 inputs — Captures two independent 4K sources into one media server.
- 4K60p with HDCP 2.2 — Captures up to 3840 x 2160p at 60fps with 4:4:4 chroma sampling.
- LiveStream and MultiStream — Single-line capture latency plus multiple simultaneous capture instances.
- Frame-synchronized ganging — Combines dual inputs into an 8K x 2K capture for wide LED canvases.
- Hardware scaling engine — Polyphase multi-tap filtering for clean downscaling and accurate upscaling.
- Colour Space Converter — Flexible onboard conversion across a wide range of pixel transfer formats.
- 2GB frame buffer — Large frame buffer supports high-bandwidth UHD capture.
- PCIe x8 installation — Installs in a standard PCIe x8 slot with the supplied VS4+ rear panel adapter plate.
Typical Applications
- 4K live event and broadcast video capture into MediaMaster servers.
- Large-format LED productions using dual-4K ganged input for wide canvases.
- House of worship and touring video requiring UHD source quality.
- Pixel-mapped shows blending 4K live capture with stored media content.
Technical Specifications
| Motherboard Connection Type | PCIe x8 |
| Input Connectors | 2 x HDMI |
| Video Modes | HDMI 2.0, HDMI 1.4, HDMI 1.3 |
| Maximum Capture Resolution | 2x 3840 x 2160p @ 60fps |
| HDCP Support | HDCP 2.2 at 4K60p, 4:4:4 chroma |
| Update Rate | Captured frame rate matches source provided PCIe bandwidth is not exceeded. |
| Pixel Transfer Formats | RGB10 (10bit), 8-8-8 (24/32), 5-6-5, 4:4:4, 5-5-5, 8-bit mono, Y410 (10bit), 4:2:2, YUY2, UYVY, YVYU |
| Frame Buffer Memory | 2GB |
| Included Accessory | VS4+ Rear Panel Adapter Plate (1) |
Frequently Asked Questions
Which media servers is the VisionSC-UHD2 compatible with?
It adds HDMI 2.0 input to MediaMaster VS2+ and VS4+ media servers running MediaMaster software.
Can it capture 4K with copy protection?
Yes. The card supports HDCP 2.2 at 4K60p with 4:4:4 chroma sampling on its HDMI 2.0 inputs.
Can the two inputs be combined?
Yes. Frame-synchronized ganging combines the two inputs into a single dual-4K (8K x 2K) capture, useful for wide LED canvases.
How does the card install?
It installs in a PCIe x8 motherboard slot. A VS4+ rear panel adapter plate is included for installation into a MediaMaster VS4+ chassis.
Does it support long HDMI cable runs?
The card includes HDMI signal conditioning to support longer cable runs and automatic fast, reliable mode detection.
