ChamSys MediaMaster VisionSC-HD4+H (4 x HDMI)
Product Overview

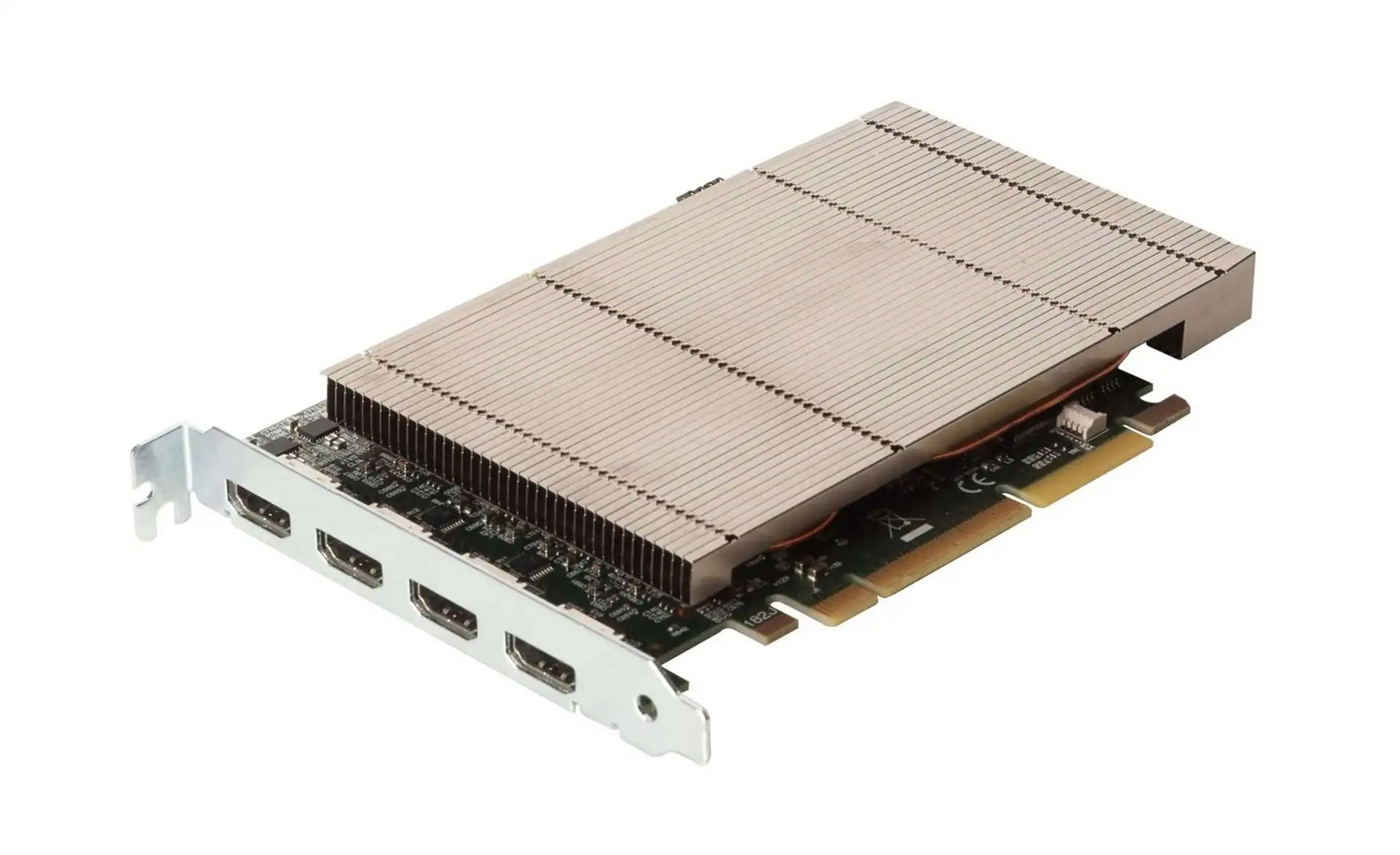

The ChamSys MediaMaster VisionSC-HD4+H is a four-channel HDMI video capture card that adds live video input to MediaMaster VS2+ and VS4+ media servers running MediaMaster software. This HDMI capture card provides four independent HDMI 1.4 channels, letting a media server ingest and control four separate video sources at once. It suits live event video capture, broadcast playback, and house of worship IMAG workflows where multiple cameras or playback devices feed a single MediaMaster server. The VisionSC-HD4+H installs in a PCIe x8 slot and ships with a VS4+ rear panel adapter plate.
Product Description
The VisionSC-HD4+H carries four channels of HDMI 1.4 that operate independently of one another. Two channels support 297MHz bandwidth for capture up to 3840 x 2160 at 60fps, and two channels support 165MHz for capture up to 1920 x 1080 at 60fps. This split lets an integrator dedicate high-bandwidth channels to UHD sources while handling additional HD feeds on the same card.
Each channel offers a user-defined update rate, with the captured frame rate matching the source as long as the maximum per-channel data rate is not exceeded. Multi-buffering eliminates tearing artifacts during capture. With 768 MB of frame buffer memory and a PCIe x8 motherboard connection, the card is built to feed MediaMaster's playback, pixel mapping, and LED integration tools with live content. The included VS4+ rear panel adapter plate supports clean installation into a MediaMaster VS4+ chassis.
Key Features
- Four HDMI 1.4 channels — Captures four independent video sources simultaneously into one media server.
- Mixed-bandwidth inputs — Two channels handle up to 3840 x 2160 at 60fps; two handle up to 1920 x 1080 at 60fps.
- MediaMaster integration — Adds live video input to VS2+ and VS4+ servers running MediaMaster software.
- Multi-buffered capture — Eliminates tearing artifacts with user-defined update rates.
- 768 MB frame buffer — Dedicated frame buffer memory supports stable multi-channel capture.
- PCIe x8 installation — Installs in a standard PCIe x8 slot with the supplied VS4+ rear panel adapter plate.
Typical Applications
- Live event production capturing multiple camera or playback sources into MediaMaster.
- House of worship IMAG and video integration with VS2+ or VS4+ servers.
- Broadcast and touring video playback requiring independent UHD and HD inputs.
- Pixel-mapped LED shows blending live capture with stored media content.
Technical Specifications
| Motherboard Connection Type | PCIe x8 |
| HDMI Channels | 4 x HDMI 1.4 (independent) |
| High-Bandwidth Channels | 2 x 297MHz (up to 3840 x 2160 @ 60fps) |
| Standard Channels | 2 x 165MHz (up to 1920 x 1080 @ 60fps) |
| Update Rate | User defined; matches source within max data rate. Multi-buffered to eliminate tearing. |
| Frame Buffer Memory | 768 MB |
| Included Accessory | VS4+ Rear Panel Adapter Plate (1) |
Frequently Asked Questions
Which media servers is the VisionSC-HD4+H compatible with?
It adds HDMI video input to MediaMaster VS2+ and VS4+ media servers running MediaMaster software.
How many video sources can it capture at once?
Four. The card provides four independent HDMI 1.4 channels, so four separate sources can be captured and controlled simultaneously.
What resolutions does it support?
Two channels support up to 3840 x 2160 at 60fps and two channels support up to 1920 x 1080 at 60fps, all operating independently.
How does the card install?
It installs in a PCIe x8 motherboard slot. A VS4+ rear panel adapter plate is included for installation into a MediaMaster VS4+ chassis.
Does it prevent video tearing during capture?
Yes. The card is multi-buffered to eliminate tearing artifacts, with a user-defined update rate that matches the source within the maximum data rate.
