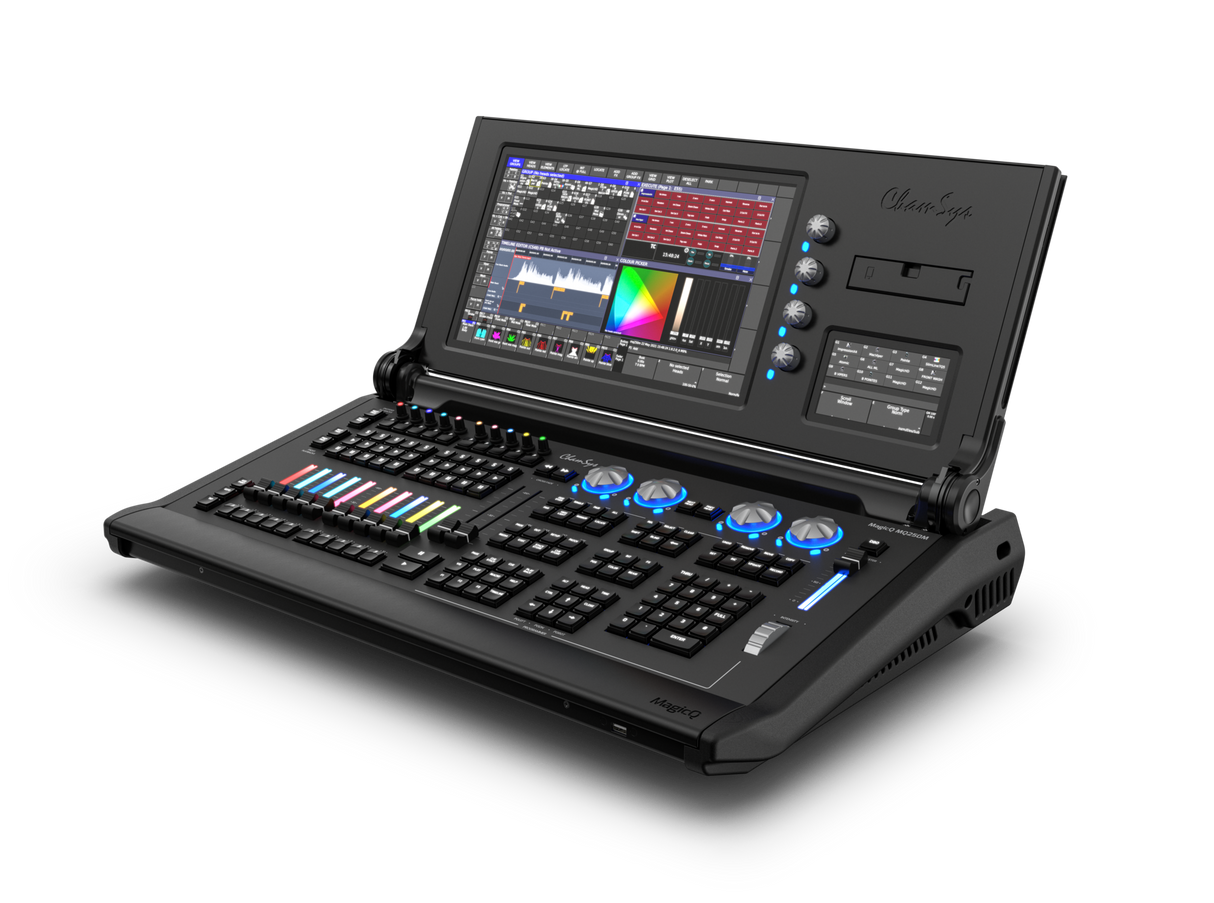

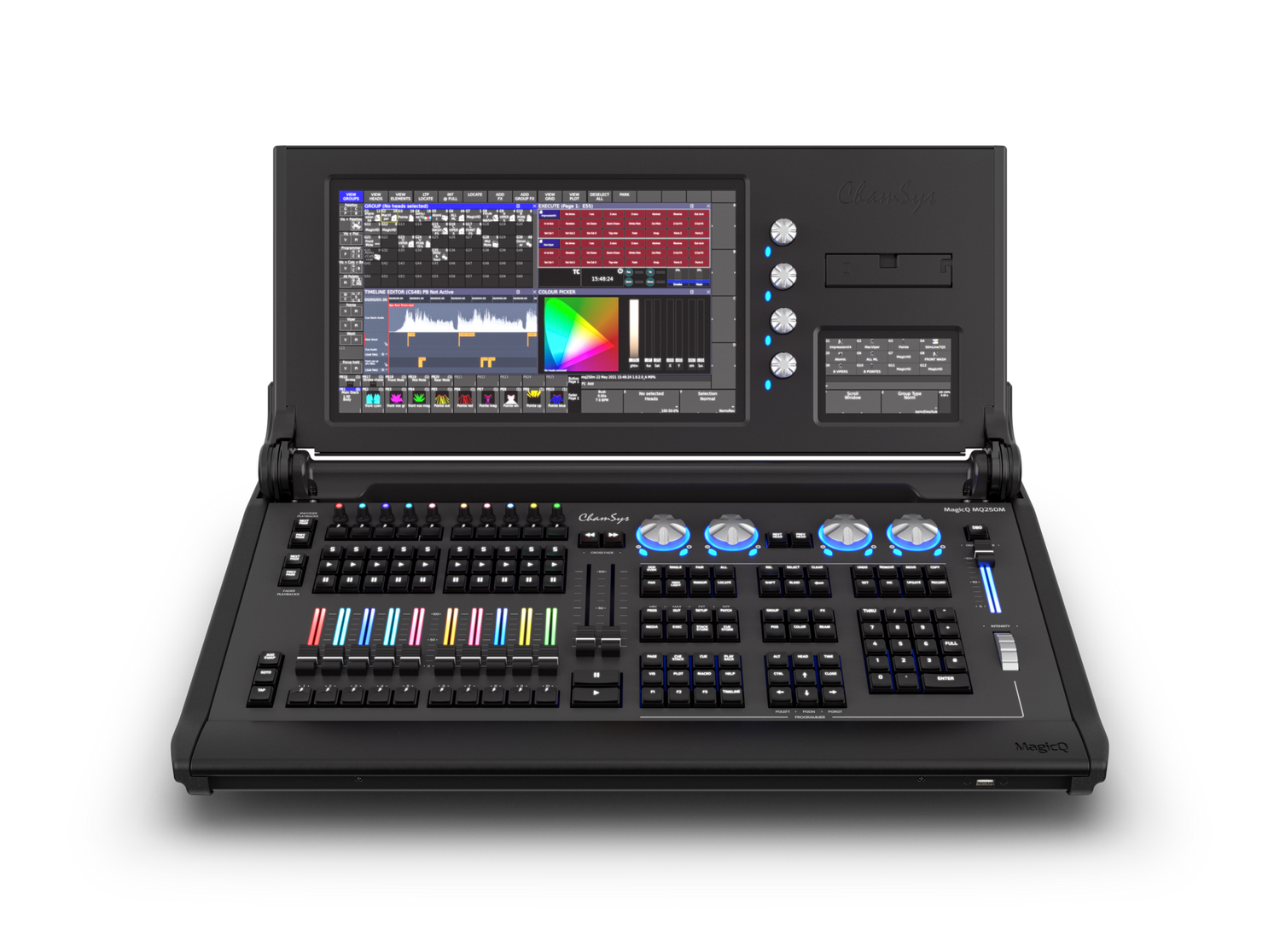

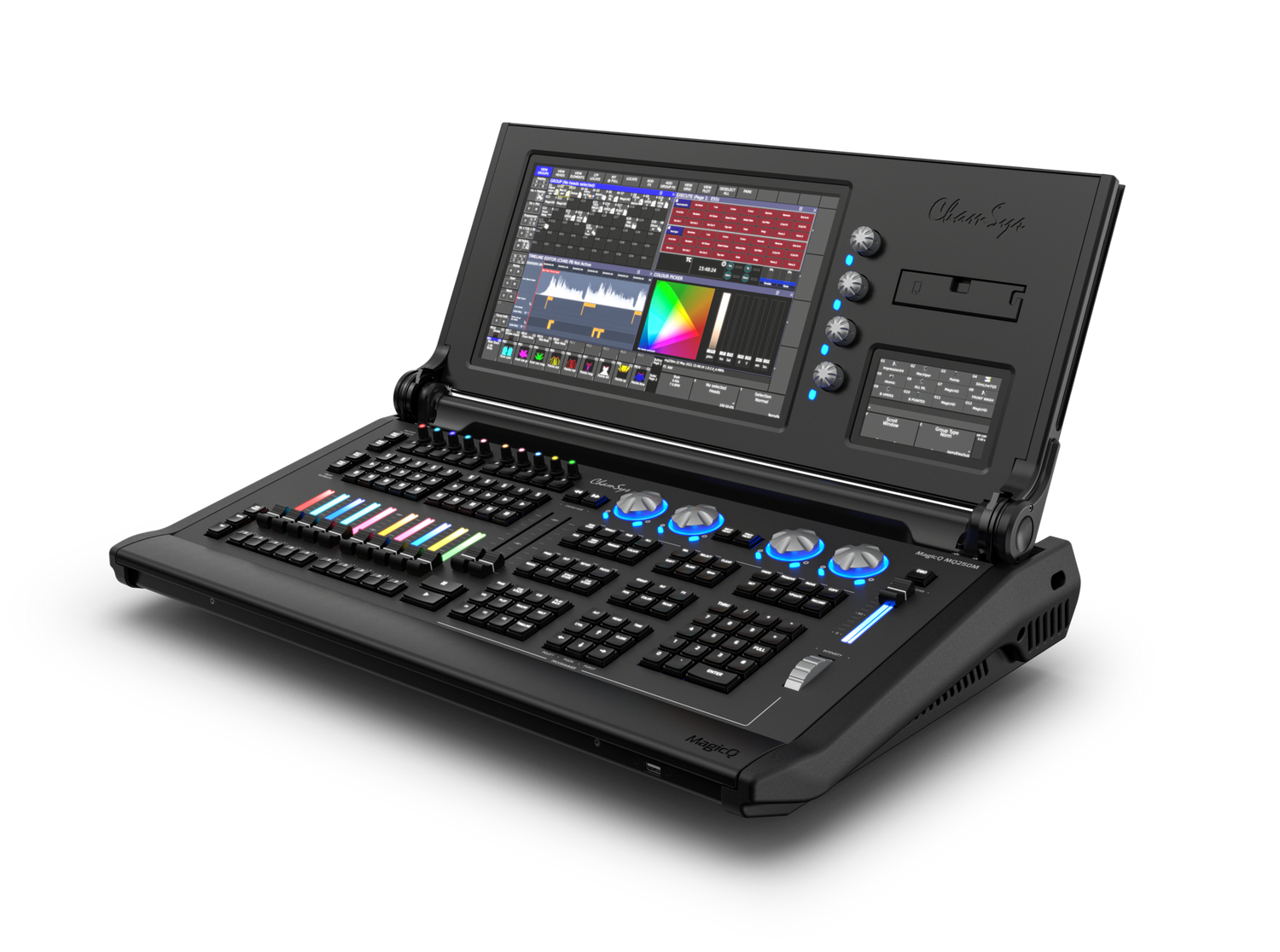

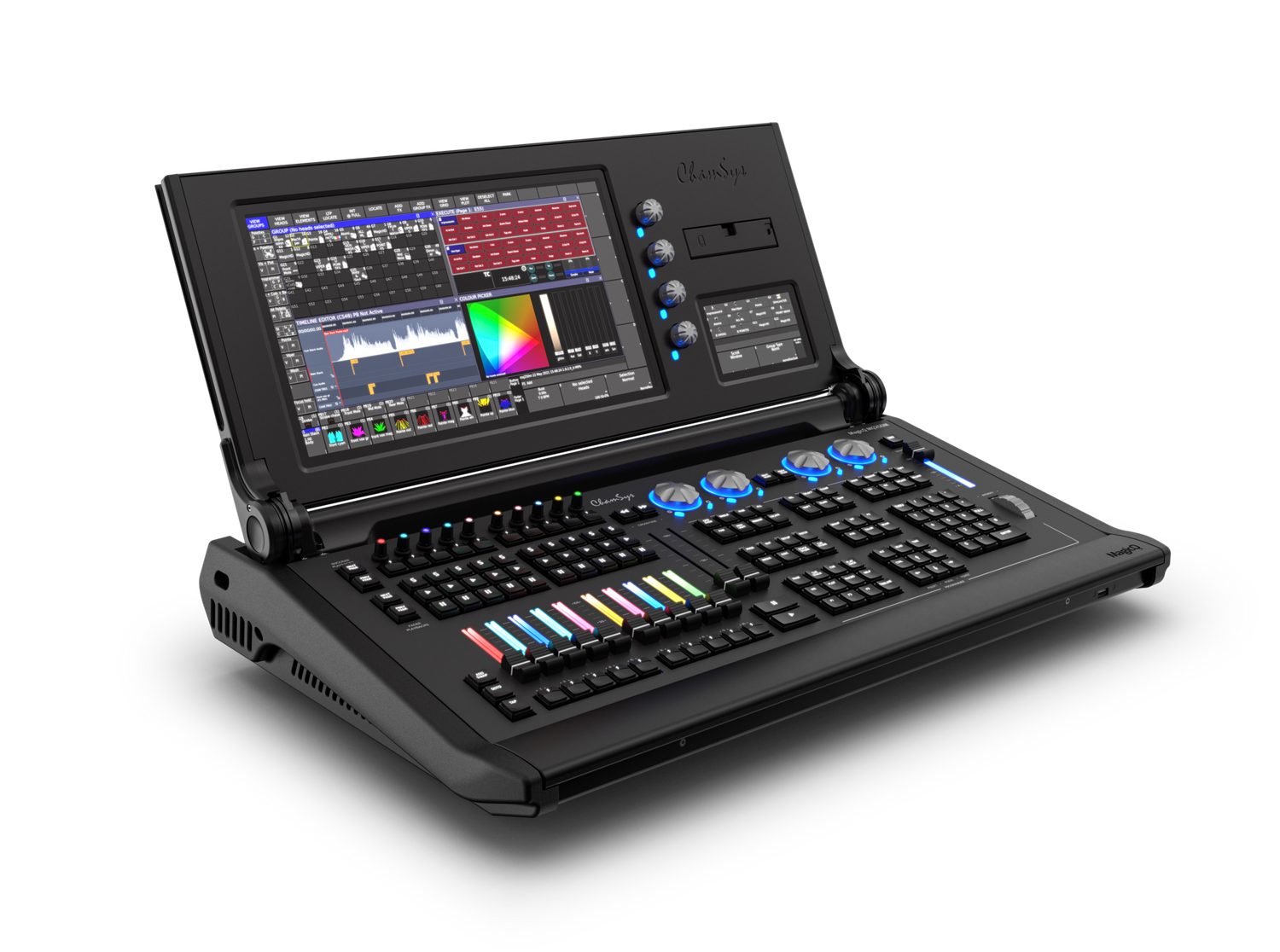

ChamSys MagicQ MQ250M Stadium Console

Product Overview

The ChamSys MagicQ MQ250M Stadium Console is a compact, portable lighting control console that delivers high-capacity show control in a small-frame chassis. This stadium lighting console drives 64 universes direct from the console, expandable to 128, with no additional processing equipment required. Built for concert and touring rigs, house of worship installations, and mobile production, it pairs motorised faders and RGB-illuminated playback encoders with the familiar MagicQ software. The MQ250M is a self-contained control surface suited to deployments where rack space and transport weight matter.

Product Description

The MQ250M Stadium combines the processing capacity of a large console with a portable footprint, making it a practical choice for touring crews and mobile AV system integration. All universes are output directly through the rear network ports over the industry-standard sACN, Art-Net, and Pathport protocols, so no external processing nodes are needed in the lighting network. The console provides 10 fully motorised fader playbacks and 10 playback encoders, with multiple banks accessible at the touch of a button for extensive programming real estate.

An inbuilt 15-inch HD multi-touch display is paired with a dedicated 5-inch attribute and encoder touch display, and a DisplayPort output supports an external monitor up to 1920x1200. Dual 100mm manual crossfaders with prominent GO and BACK buttons provide dedicated theatre control. Backlit keys and RGB-illuminated fader tracks and encoders let lighting designers visibly configure the console for each show. An inbuilt UPS makes the MQ250M a complete stand-alone solution, while inbuilt Wi-Fi connects the MagicQ Remote control app for floor-level operation.

Show files are fully compatible between the MQ250M, MQ500M, Stadium Connect, and all other ChamSys consoles, and are forward and backward compatible across software versions, simplifying crew transitions and equipment moves. Two dedicated high-power USB ports allow charging of phones and tablets at the console.

Key Features

• Up to 128 Universes Direct — The console outputs 64 universes directly, expandable to 128, over sACN, Art-Net, and Pathport without external processing nodes.
• Portable Stadium Capacity — High-capacity show control is packaged in a 13kg small-frame chassis suited to touring and mobile production deployments.
• Motorised Faders and Encoders — Ten motorised fader playbacks and ten playback encoders, multiplied across banks, provide extensive direct access to cues and masters.
• Dual Touch Displays — An inbuilt 15-inch HD multi-touch display and a dedicated 5-inch attribute and encoder touchscreen support an organised programming workflow.
• RGB-Illuminated Controls — Backlit keys and RGB-illuminated fader tracks and encoders let designers visibly configure functions and separate cue types.
• Dual 100mm Crossfaders — Manual 100mm crossfaders with large GO and BACK buttons deliver dedicated theatre-style cue control.
• Inbuilt UPS and Wi-Fi — An integrated UPS supports stand-alone reliability while inbuilt Wi-Fi connects the MagicQ Remote control app.
• Cross-Console Show Compatibility — Show files are compatible across the MQ250M, MQ500M, Stadium Connect, and all ChamSys consoles, both forward and backward across versions.
• High-Power USB Charging — Two dedicated high-power USB ports allow charging of phones and tablets directly at the console.

Typical Applications

• Concert and touring production
• House of worship
• Live events and multi-purpose performance venues
• Theatre and auditorium
• Broadcast studio lighting

Technical Specifications

Frequently Asked Questions

How many DMX universes does the MQ250M support?

The console outputs 64 universes directly with no external processing, and can be upgraded to 128 universes, equivalent to 65,536 DMX channels.

What lighting network protocols does the console use?

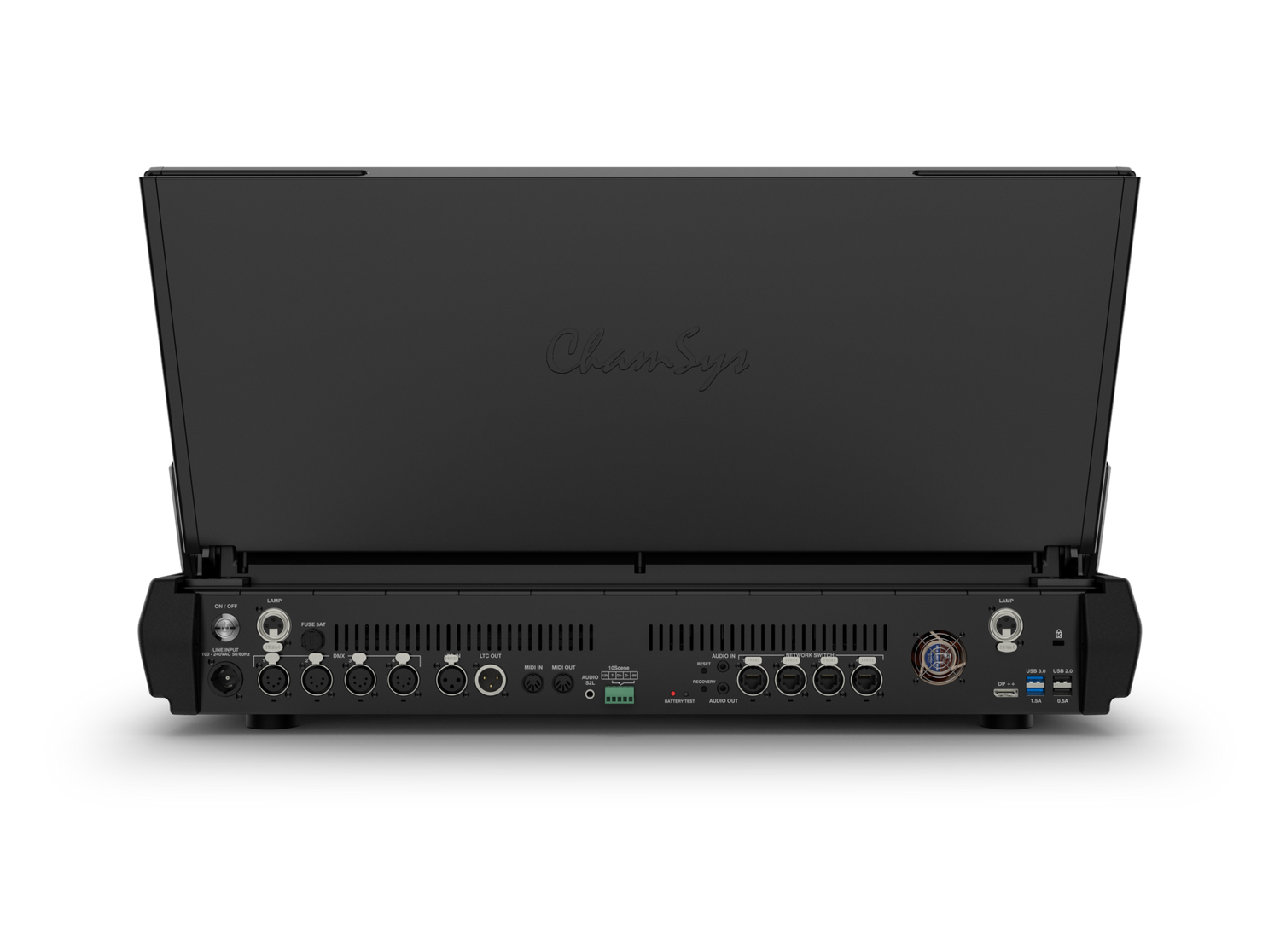

It outputs over the industry-standard sACN, Art-Net, and Pathport protocols through its rear network ports, plus four direct DMX outputs for integration with existing distribution.

Is the MQ250M suitable for touring and mobile use?

Yes. At 13kg in a small-frame chassis with an inbuilt UPS, it is designed as a complete portable stand-alone control solution for touring and mobile production.

Are show files compatible with other ChamSys consoles?

Show files are fully compatible across the MQ250M, MQ500M, Stadium Connect, and all other ChamSys consoles, and are both forward and backward compatible across software versions.

Can I connect an external monitor?

Yes. A DisplayPort output supports an external monitor at resolutions up to 1920x1200, supplementing the inbuilt 15-inch and 5-inch touch displays.

Does the console include accessories for setup?

It ships with two dual-colour desk lights, a dust cover, a Neutrik powerCON TRUE1 power cable, and a DisplayPort-to-HDMI cable.

What support and warranty resources are available?

ChamSys provides cutsheets, 3D models, documentation, and training resources through its support channels; confirm warranty terms and service with Creation Networks at the time of purchase.
