ChamSys GeNetix GS5D

Product Overview

The ChamSys GeNetix GS5D is a five-port DIN rail mountable unmanaged Gigabit PoE+ network switch built for Art-Net and sACN lighting networks. It can be powered over PoE or from an external 12-48V supply (sold separately), and when fed at 48V it delivers up to 60W of total PoE output. Four ports support 30W of PoE+ per port to power nodes, access points, and other networked devices. Status LEDs report power, port link and activity, and Gigabit speed at a glance.

Product Description

The GeNetix GS5D is an unmanaged Gigabit Ethernet switch designed for fixed lighting and AV network installations where DIN rail mounting and PoE distribution are required. All five ports run at Gigabit speed, providing the bandwidth headroom needed for multi-universe Art-Net and sACN traffic. Ports 2 through 5 deliver PoE+ output, supporting both 802.3af and 802.3at in Modes A and B, which covers the majority of powered lighting nodes and network endpoints. When powered from a 48V external supply, each of the four PoE ports can source up to 30W, with a combined budget of 60W across the switch. The unit can itself be powered over PoE or from a 12-48V external supply, giving installers flexibility when planning power topology in a rack or distribution panel. Because the GS5D is unmanaged, it requires no configuration and starts passing traffic as soon as it is connected, which suits straightforward lighting network segments. Front-panel status LEDs indicate external power, per-port link and PoE activity, and Gigabit operation, supporting quick commissioning and fault-finding. The DIN rail clip and compact 104 x 87 x 65 mm body integrate cleanly into standard enclosures. Each unit ships with a DIN rail mount clip and Quick Start Guide. Explore the full Creation Networks ChamSys GeNetix networking range for matching nodes and splitters.

Key Features

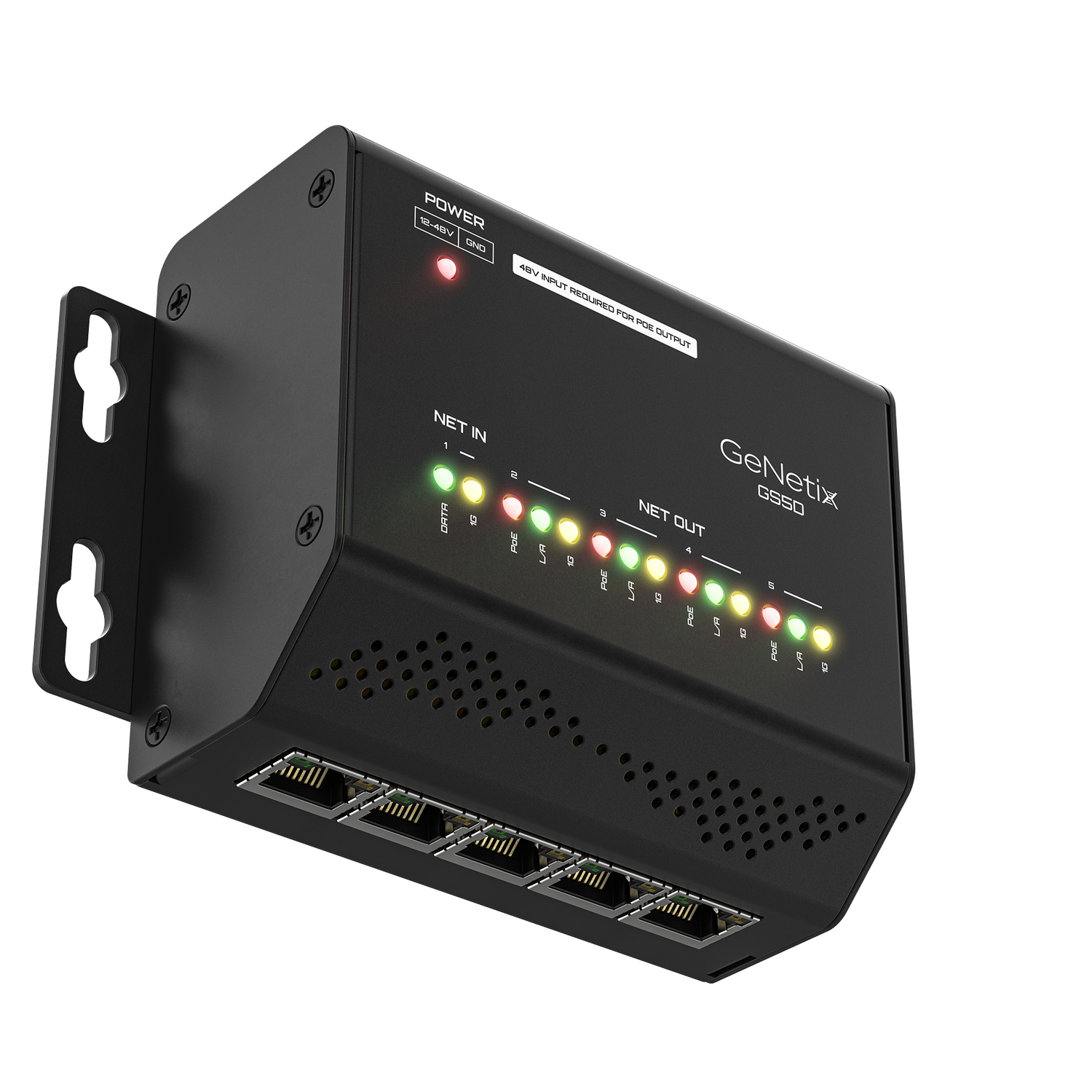

• 5 Gigabit Ports — Five 10/100/1000 ports provide bandwidth headroom for multi-universe Art-Net and sACN lighting traffic.
• PoE+ on Four Ports — Ports 2-5 deliver 30W per port, up to 60W combined, when powered from a 48V external supply.
• Standards-Based PoE — Supports 802.3af and 802.3at in Modes A and B for broad device compatibility.
• Flexible Powering — Runs from PoE input or a 12-48V external supply for adaptable rack and panel power topology.
• Unmanaged Operation — Plug-and-play with no configuration required for simple lighting network segments.

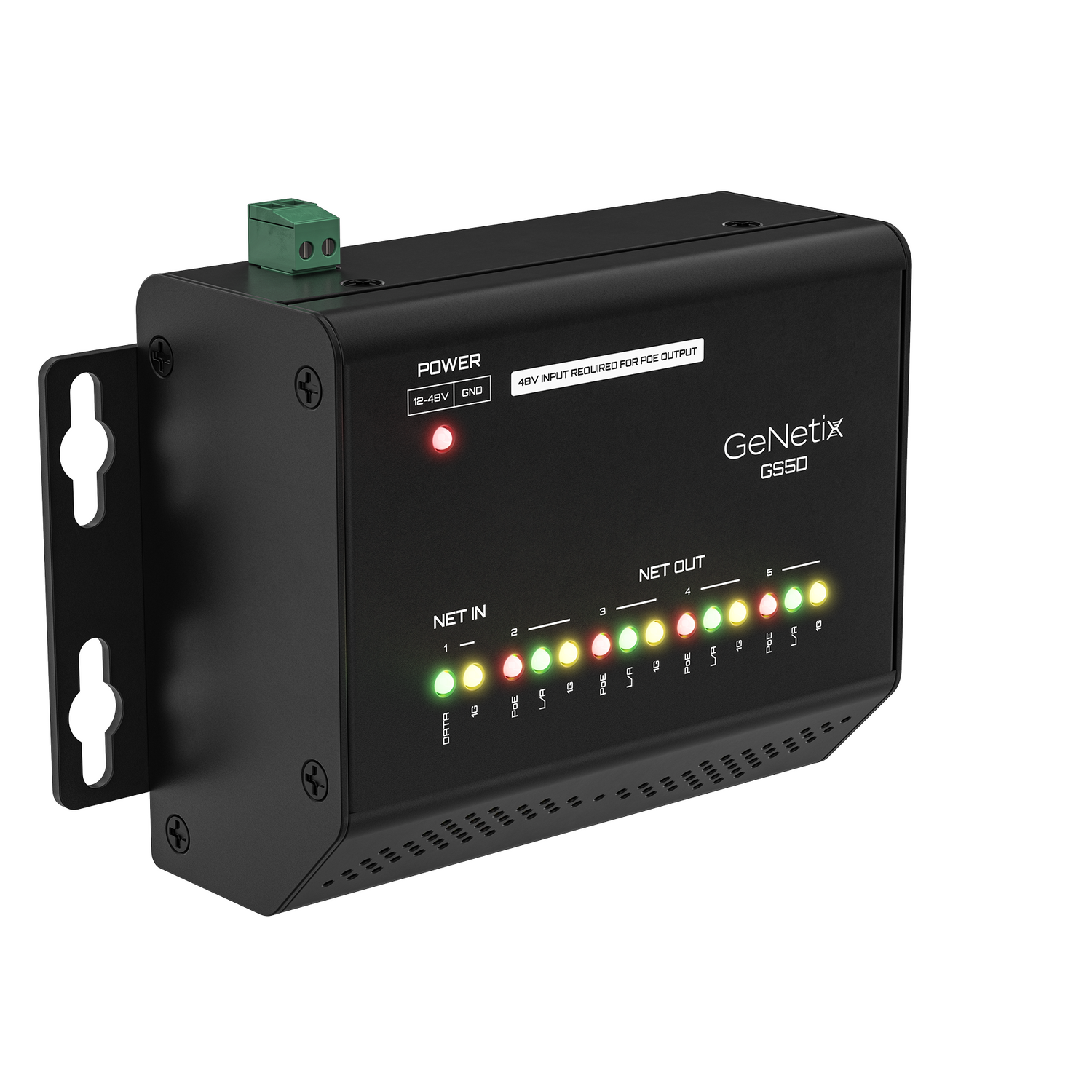

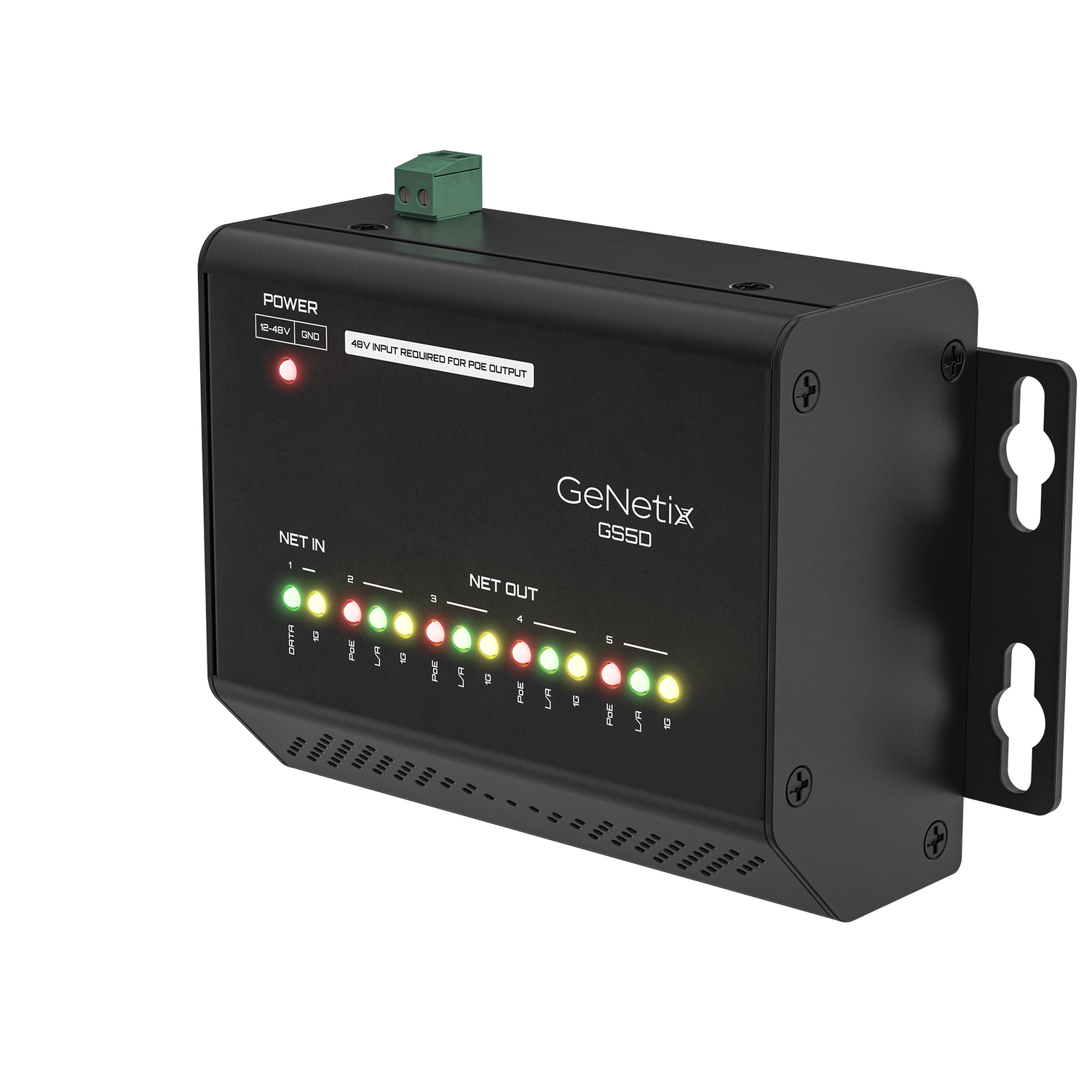

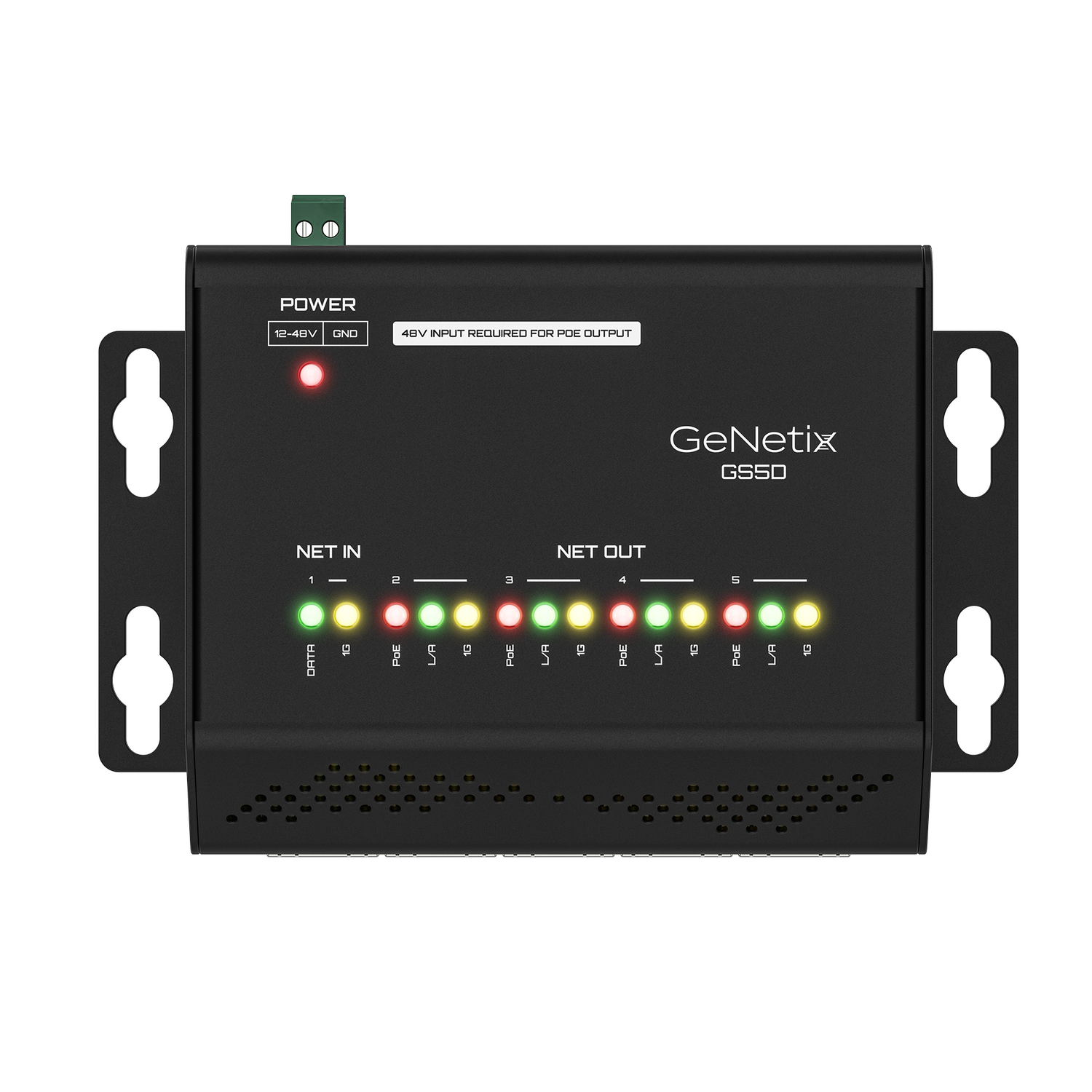

• Status LED Indication — LEDs report power, per-port link and activity, and Gigabit speed for fast diagnostics.

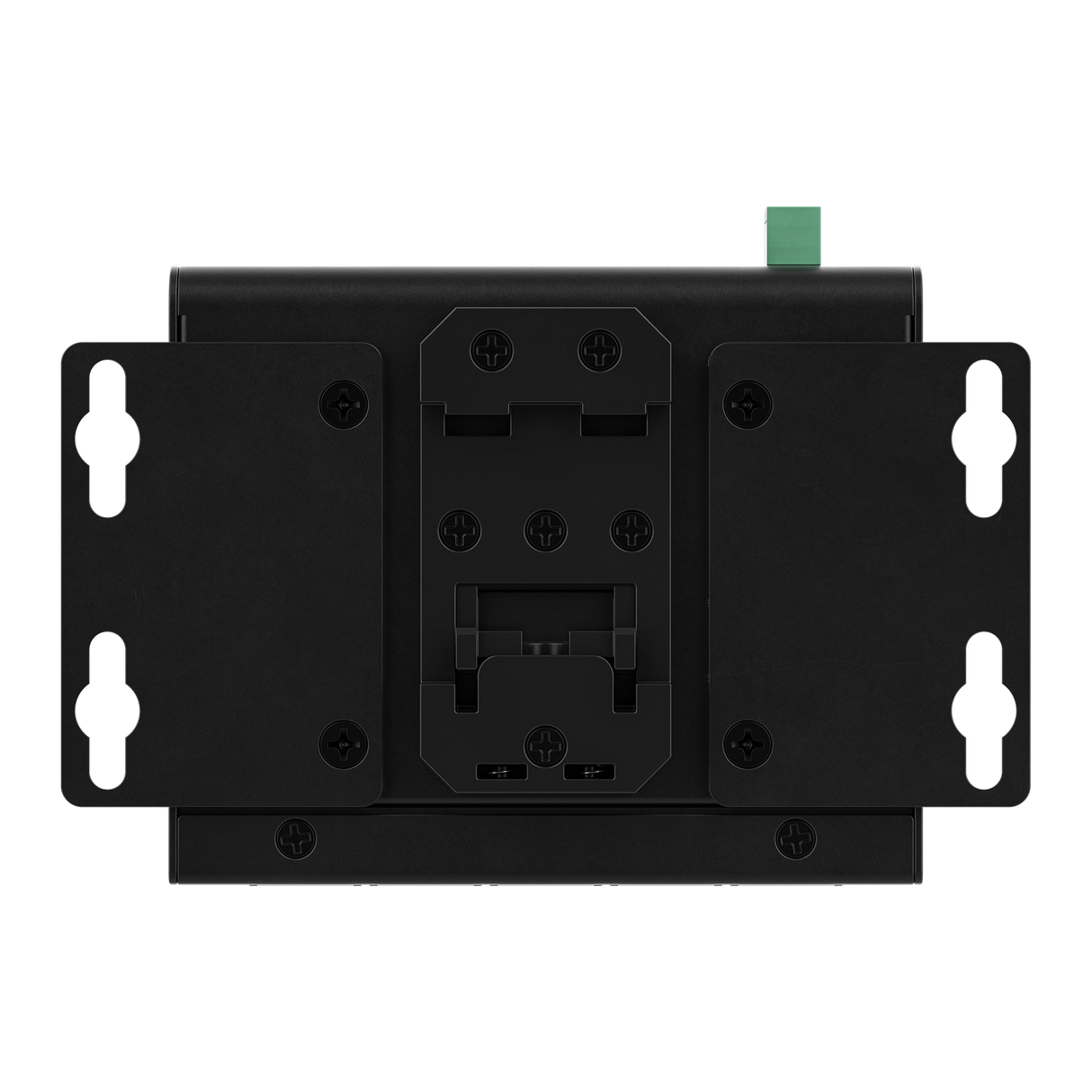

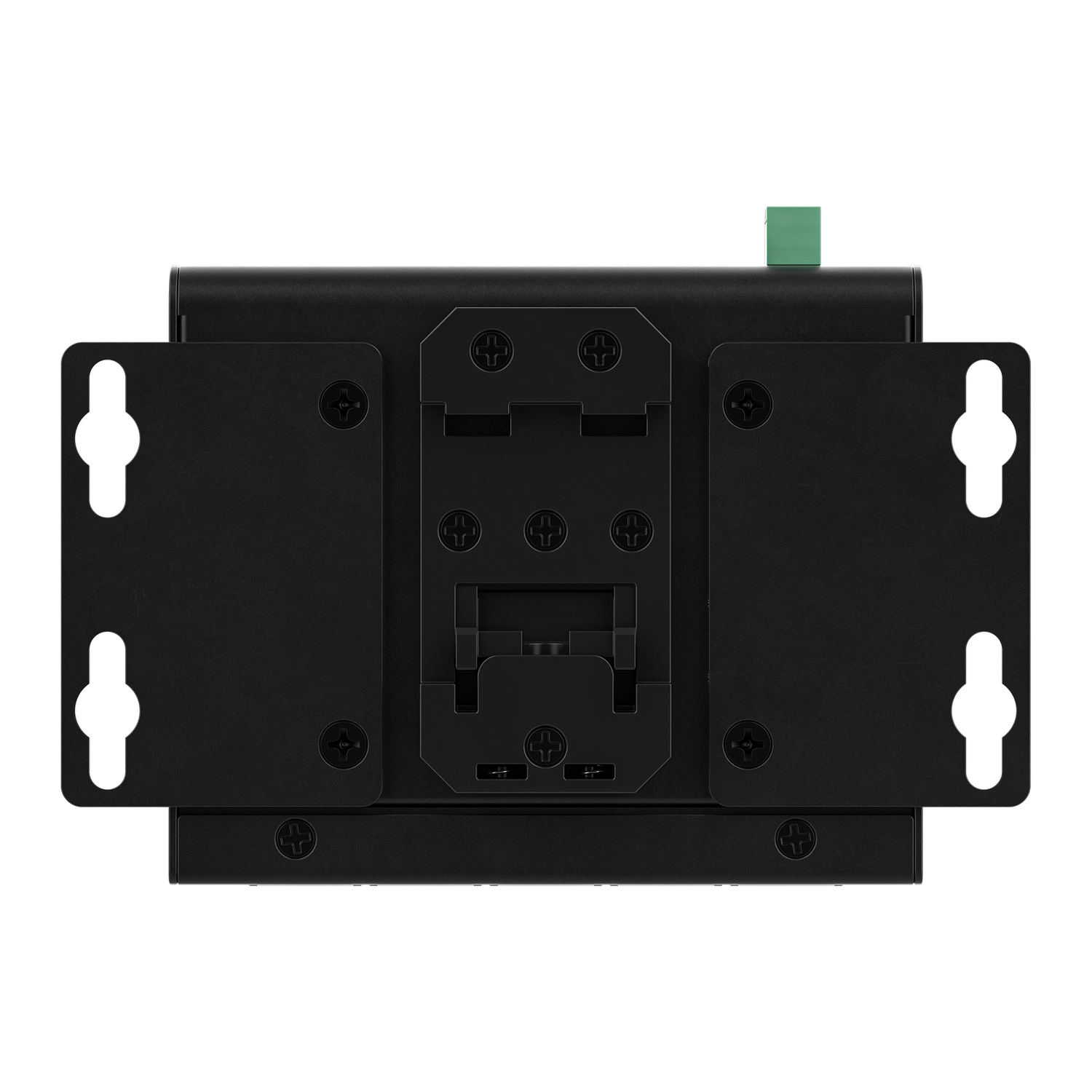

• DIN Rail Mounting — Clips into standard DIN rail for tidy integration in distribution enclosures.

Technical Specifications
