ChamSys GeNetix DMX Passthrough Wall Plates

Product Overview

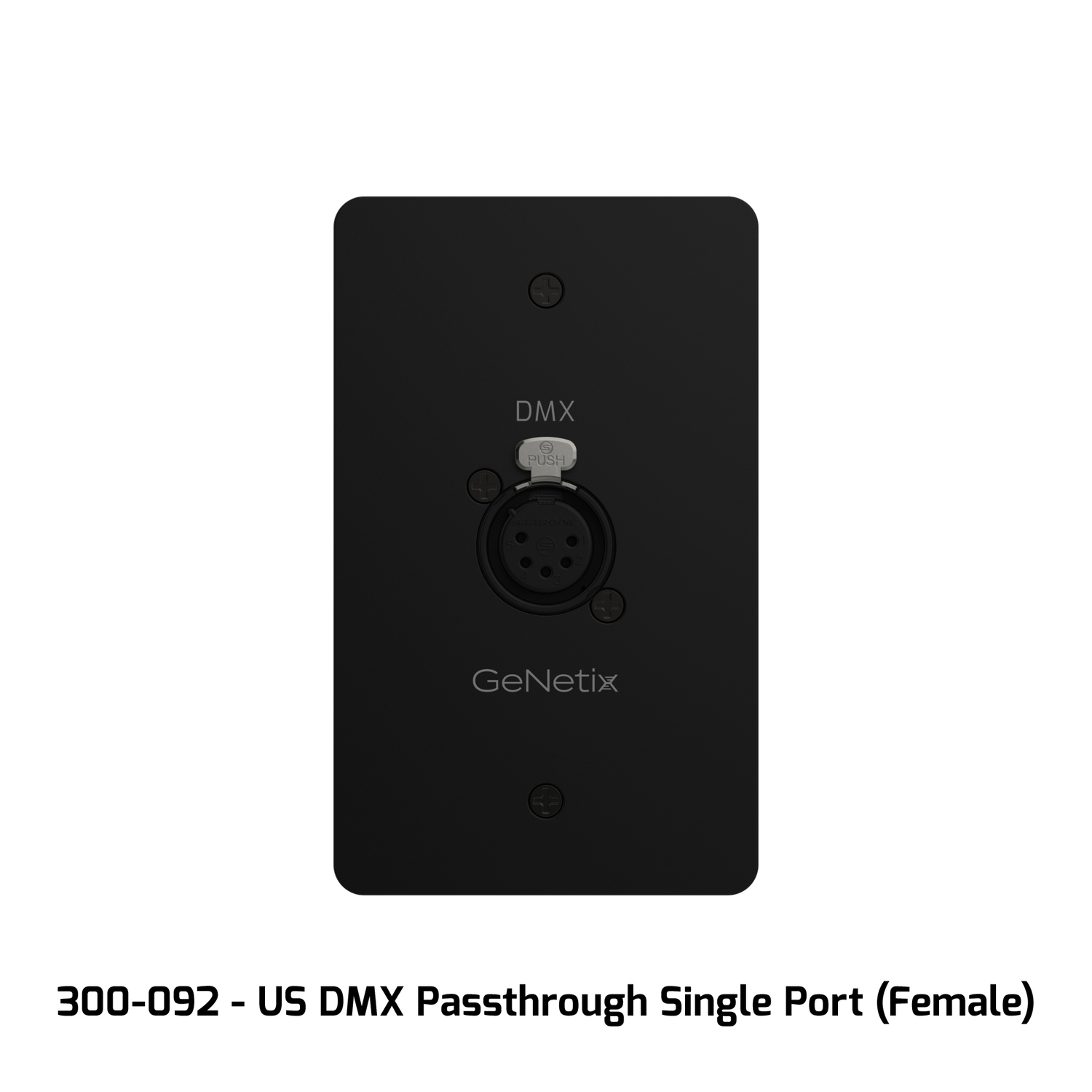

ChamSys GeNetix DMX Passthrough Wall Plates provide a clean, wall-mounted DMX termination point for permanent lighting installations. The range covers single or dual port configurations with male or female 5-pin connectors, in versions to fit standard single gang U.S., E.U., and U.K. back boxes. Every plate uses a locking 5-pin DMX connector on the front and a screw terminal connector at the rear. All versions ship with a black metal faceplate and mounting screws.

Product Description

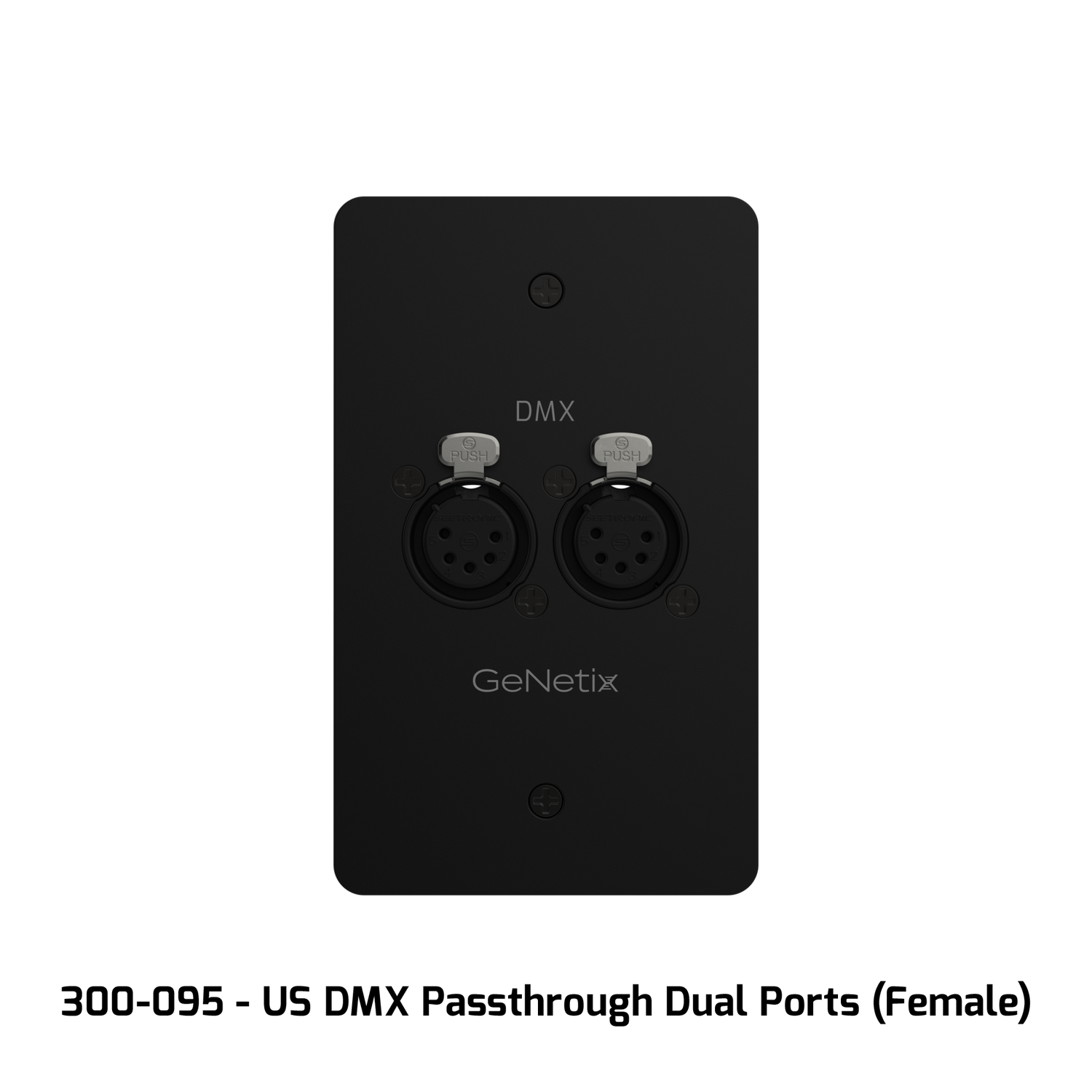

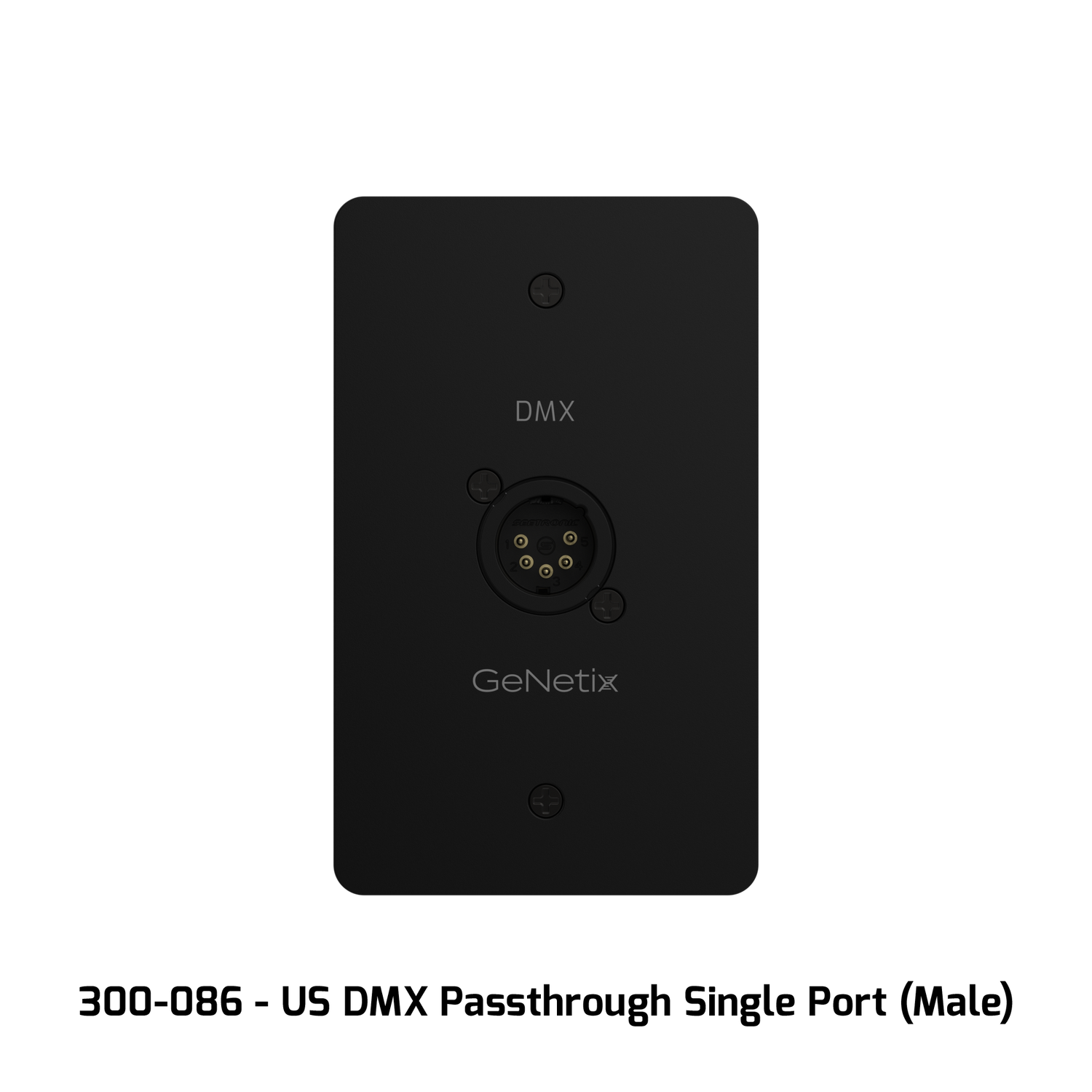

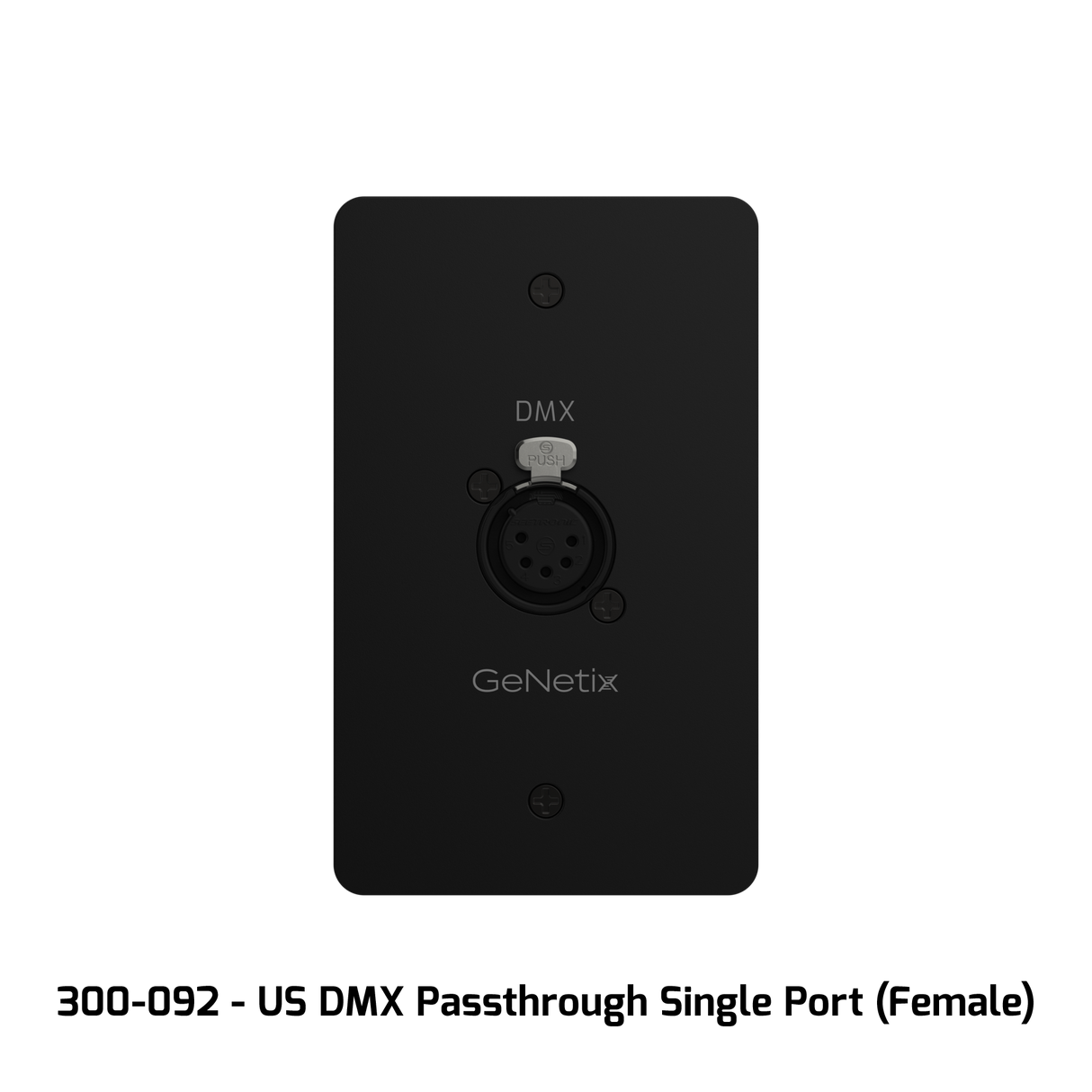

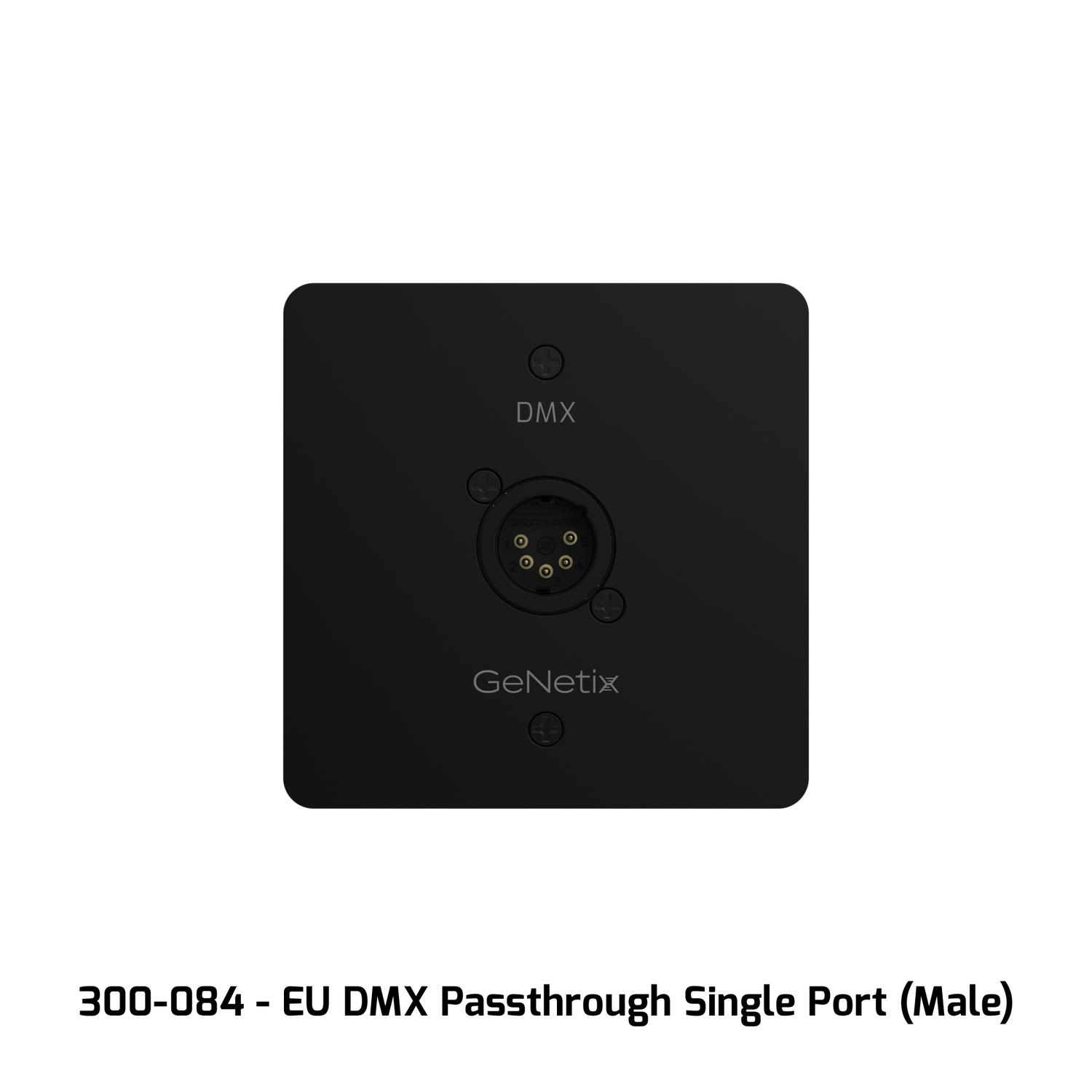

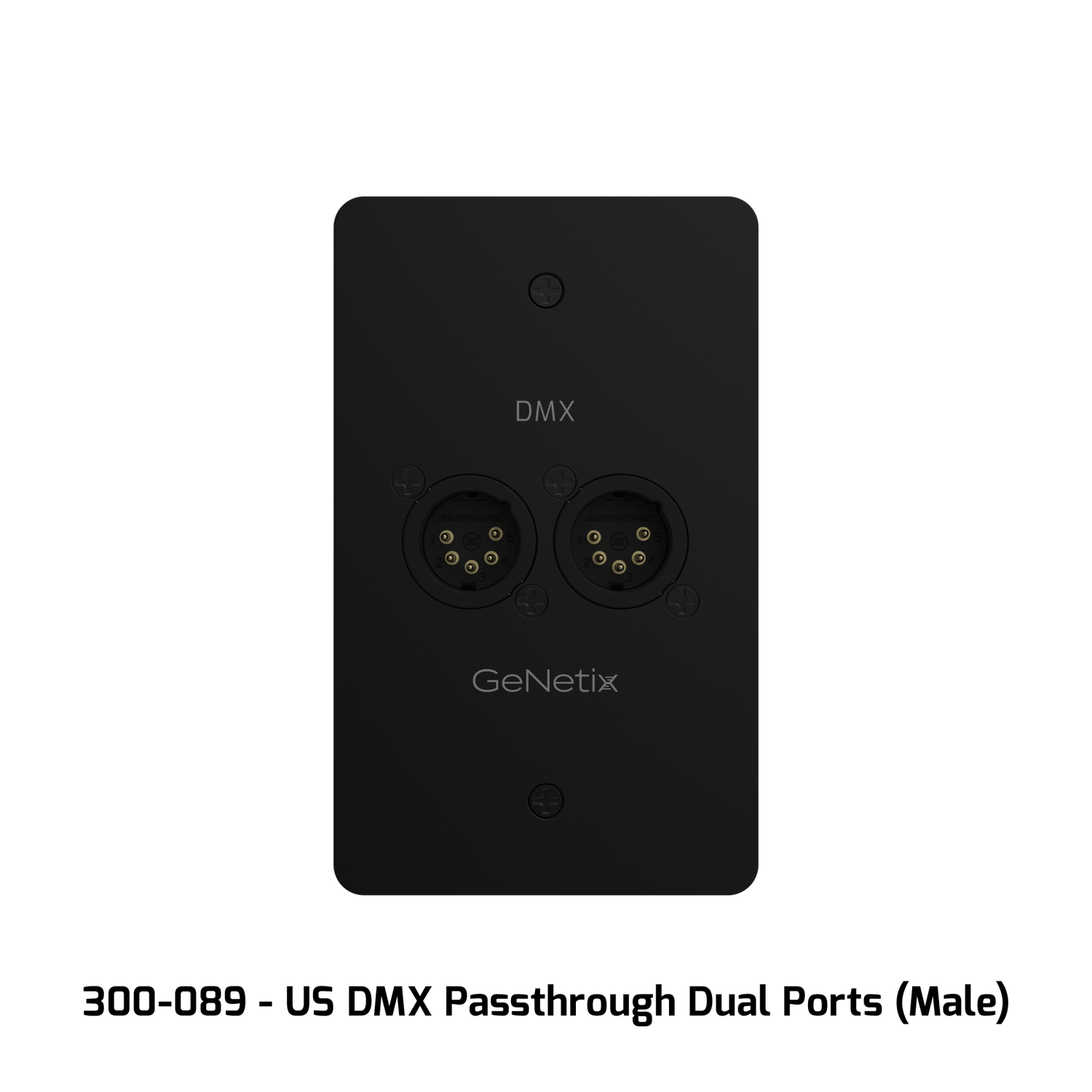

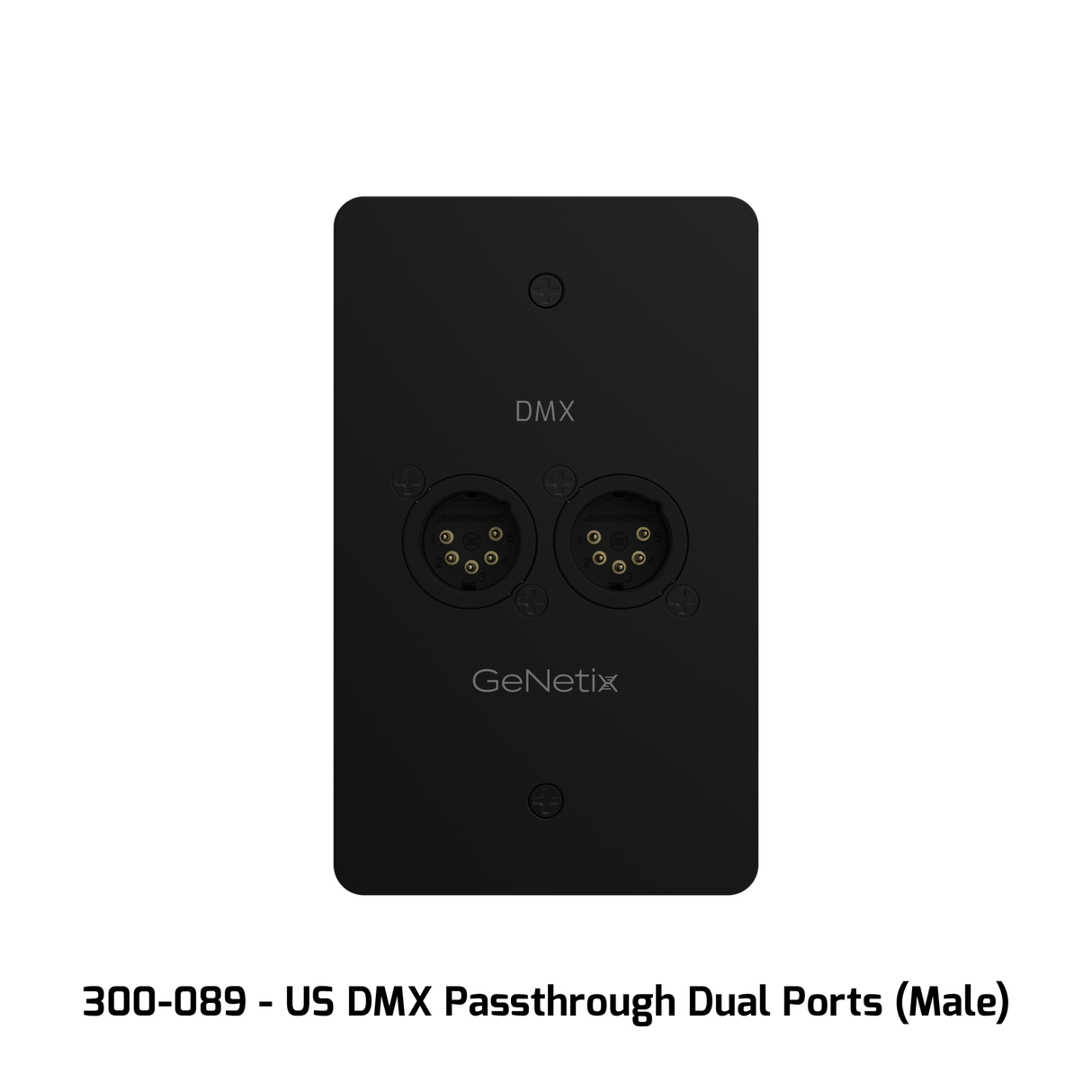

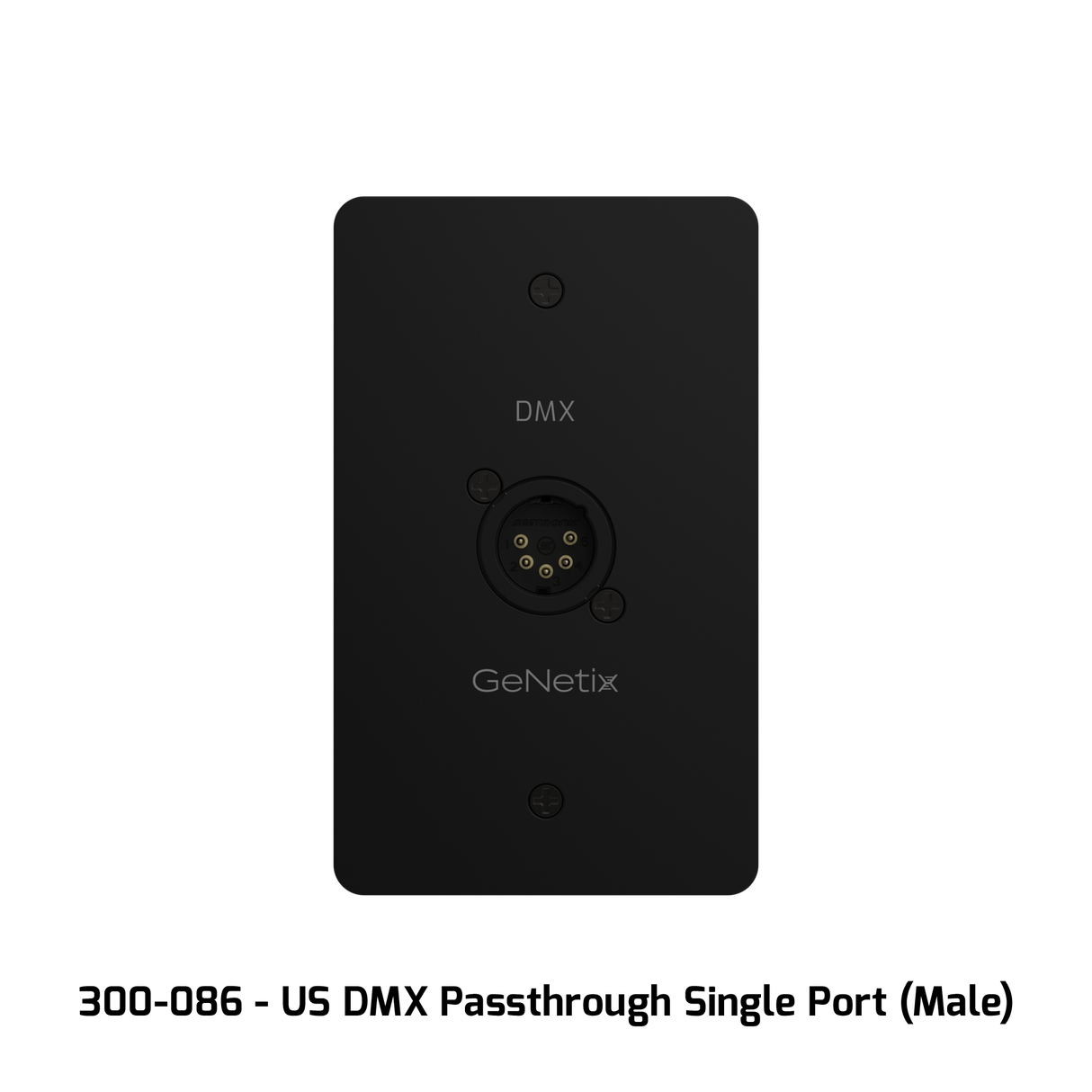

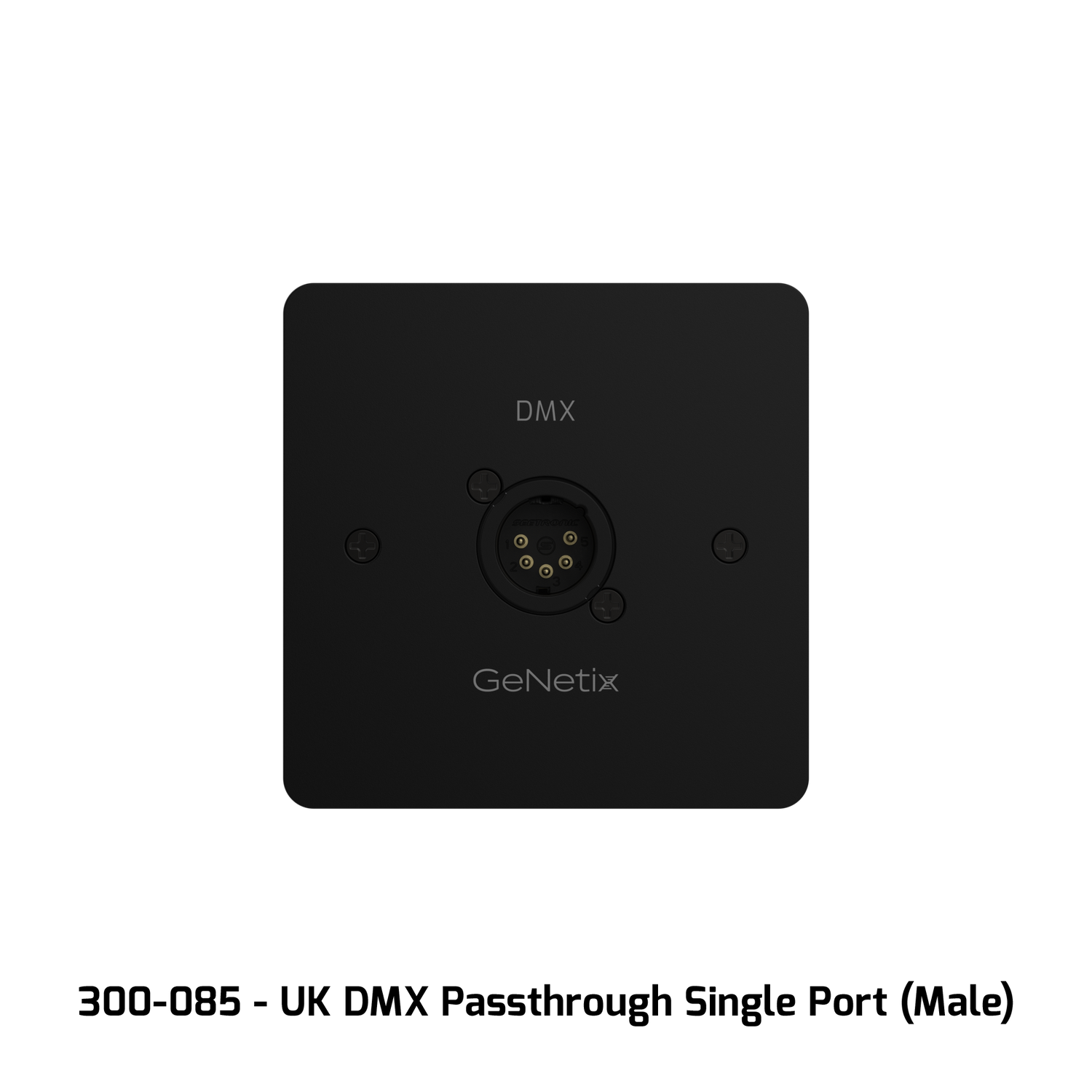

The GeNetix DMX Passthrough Wall Plate is an ancillary product in the ChamSys GeNetix range, designed to bring DMX cabling neatly to the wall in theatres, houses of worship, studios, and architectural installs. The front of each plate carries a locking 5-pin XLR-style DMX connector, which retains the cable mechanically and prevents accidental disconnection during operation. Behind the plate, the in-wall DMX cable lands on a 3-wire screw terminal connector, giving installers a secure, serviceable termination. The range is offered in single and dual port versions and in both male and female connector orientations, so a complete DMX run can be terminated with the correct gender at each end. The connector modules are individually swappable, which means a dual male and dual female plate can be reconfigured to create a mixed male and female plate if a project requires it. Plates are dimensioned to fit standard single gang back boxes in three regional formats, and all ship with a black metal faceplate and installation screws. Twelve SKUs span the single/dual, male/female, and U.S./U.K./E.U. combinations, from CS300084 through CS300095. Browse the wider Creation Networks ChamSys GeNetix distribution range for matching nodes and network plates.

Key Features

• Locking 5-Pin DMX Connector — Front connector mechanically retains the DMX cable to prevent accidental disconnection.
• Screw Terminal Rear — 3-wire screw terminal lands the in-wall DMX cable for a secure, serviceable termination.
• Single or Dual Port — Available with one or two DMX ports to suit single or multi-universe wall runs.
• Male or Female Connectors — Both connector genders offered so each end of a DMX run terminates correctly.
• Swappable Modules — Connector modules are individually removable, allowing mixed male and female plate configurations.
• Regional Back Box Fit — Versions to fit U.S., U.K., and E.U. standard single gang back boxes.
• Black Metal Faceplate — Supplied with a durable black metal faceplate and mounting screws.
