In today’s world, where audio, video, and control systems are the backbone of corporate headquarters, universities, government buildings, and entertainment venues, downtime is not an option. A single point of failure in your AV system can disrupt presentations, halt live events, or compromise safety systems.

That’s where Q-SYS Core Redundancy comes in — one of the most powerful reliability features in modern networked AV.

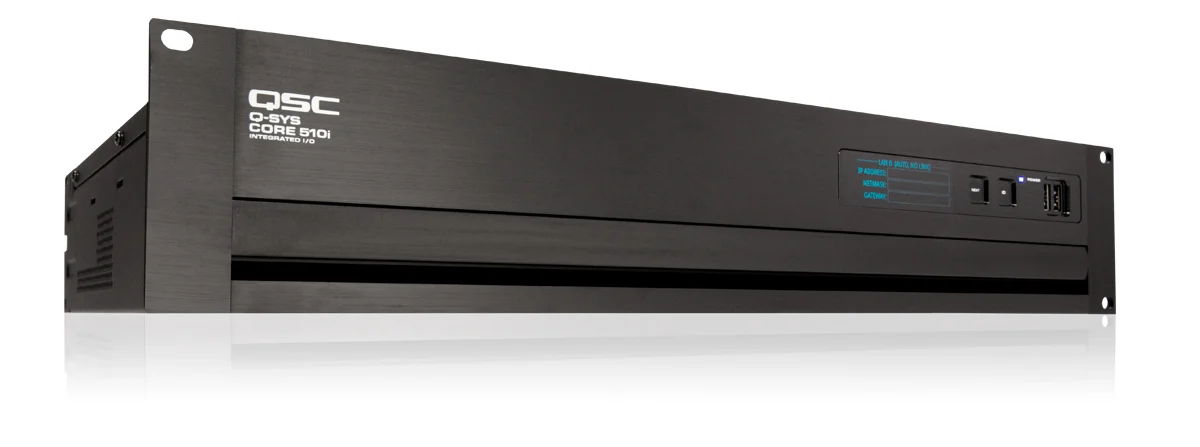

Q-SYS Core Redundancy allows you to deploy two identical Q-SYS Core processors (Primary + Backup) in a single system. The two Cores continuously monitor each other and the entire ecosystem. If the Primary Core experiences any issue — hardware failure, software crash, network disruption, or power loss — the Backup Core automatically takes over in seconds, often with zero noticeable interruption to users.

This is true hot standby redundancy, not just failover.

• Zero Visibility Downtime — Audiences and users rarely notice the switch
• Mission-Critical Reliability — Ideal for courtrooms, emergency operations centers, university lecture halls, corporate boardrooms, and live performance venues
• Automatic Synchronization — Configurations, control logic, and settings stay in sync between both Cores
• Full System Protection — Works alongside network redundancy, I/O Frame redundancy, and amplifier redundancy

• Primary + Backup Pairing — Two identical Cores (same model and software version) are paired in Q-SYS Designer.
• Constant Health Monitoring — The Cores communicate continuously to verify status.
• Seamless Failover — If the Primary fails, the Backup becomes active almost instantly.
• Automatic Recovery — Once the Primary Core returns online, it can resume as Primary or remain as Backup.

To get the maximum benefit and reliability from Q-SYS Core Redundancy, follow these proven best practices:

1. Use Identical Hardware and Software Versions Always deploy two identical Q-SYS Cores (same model and exact same software/firmware version). Mismatched versions are the most common cause of redundancy issues.

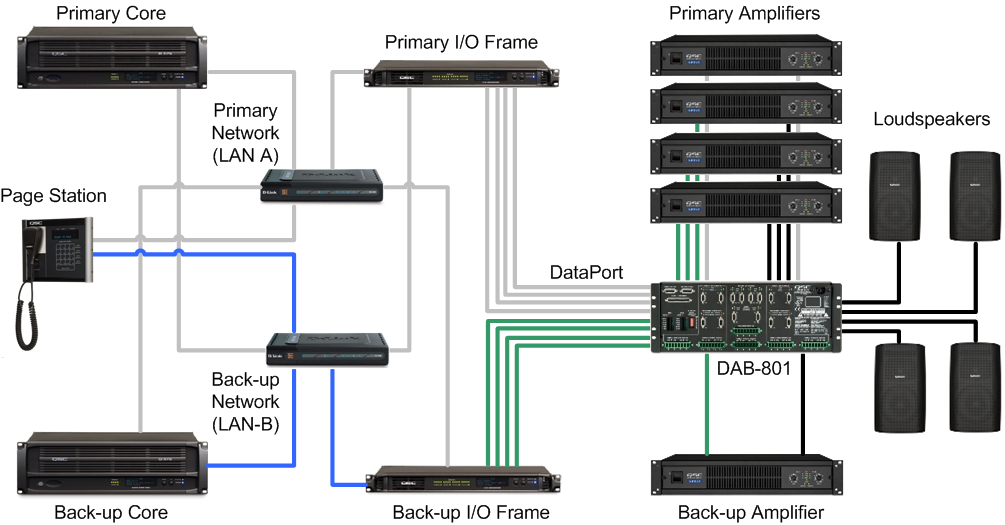

2. Implement Full Network Redundancy Connect both Primary and Backup Cores to completely redundant network infrastructure:
   • Separate physical switches
   • Dual LAN connections (LAN A + LAN B)
   • Redundant upstream connections
   • Proper QoS configuration for AV traffic
3. Regular Failover Testing Schedule quarterly failover tests in non-production hours. Document results and response times. This ensures the system works when you need it most and keeps your team familiar with the process.
4. Monitor Both Cores Proactively Use Q-SYS Reflect or a third-party monitoring platform (such as Domotz, PRTG, or Creation Networks’ premier monitoring service) to track the health of both Primary and Backup Cores in real time.
5. Keep Designs in Sync Always push design changes to both Cores simultaneously. Use version control and naming conventions (e.g., “Main Auditorium v2.3 – Primary”).
6. Plan Physical Placement Strategically
   • Place Primary and Backup Cores in separate racks or power circuits when possible
   • Ensure proper cooling and power redundancy (UPS + generator)
   • Consider geographic separation for ultra-critical installations
7. License Management Ensure both Cores have matching and sufficient licenses. Redundancy does not double your license count — one set of licenses covers the active Core.
8. Document Your Redundancy Strategy Maintain clear documentation including:
   • Failover procedures
   • Network diagrams
   • Contact list for escalation
   • Recovery time objectives (RTO)
9. Combine with Other Redundancy Layers For true high-availability systems, pair Q-SYS Core Redundancy with:

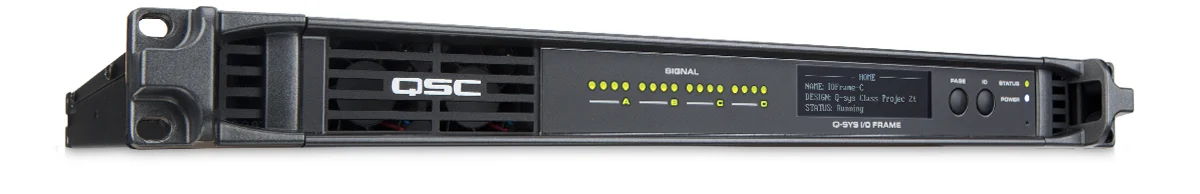

   • Redundant I/O Frames
   • Redundant amplifiers and speakers
   • Redundant control touchpanels

Q-SYS Core Redundancy transforms a potential single point of failure into one of the most robust AV platforms available today. Whether you're designing a new system or upgrading an existing one, adding Core redundancy is one of the smartest investments you can make for long-term reliability.

At Creation Networks, we specialize in designing and deploying fully redundant Q-SYS systems across the United States. From initial consultation to ongoing managed support, we ensure your AV infrastructure performs when it matters most.

In today’s high-stakes environments, relying on a single Q-SYS Core is no longer enough. Whether you’re running a university lecture hall, corporate headquarters, government command center, or large entertainment venue, downtime is simply not an option.

Q-SYS Core Redundancy gives you the peace of mind that your most critical AV systems will continue running seamlessly — even if something goes wrong.

At Creation Networks, we don’t just sell technology — we design, deploy, and support fully redundant, enterprise-grade AV systems across the United States. From initial consultation and system design to installation, programming, and ongoing 24/7 monitoring, our team ensures your investment delivers maximum reliability and performance.

Take the next step toward unbreakable AV performance:

• Get a free Q-SYS Redundancy Assessment
• Receive expert recommendations tailored to your facility
• Learn how Core Redundancy fits into a complete high-availability AV strategy

Ready to eliminate single points of failure and protect your most important moments?

Contact Creation Networks today for a no-obligation consultation.

Don’t wait for a system failure to expose weaknesses in your AV infrastructure. Let’s build a solution that’s as reliable as it is powerful.
