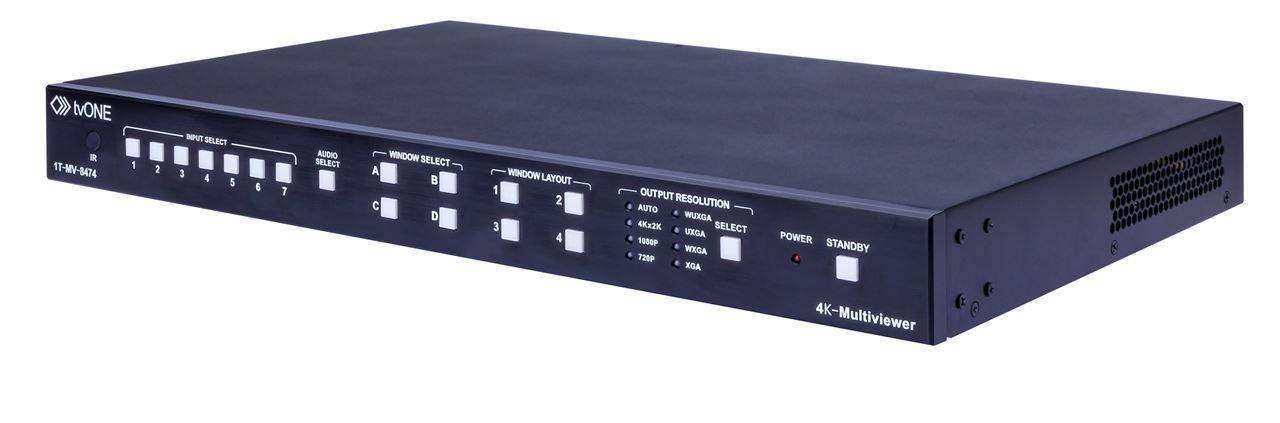

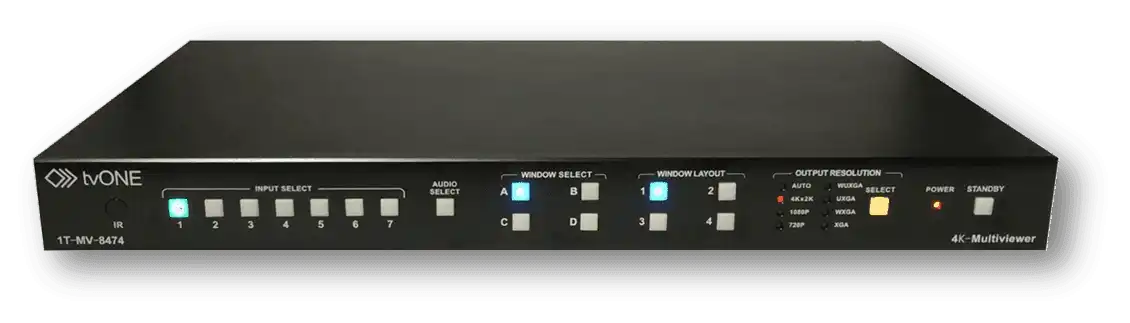

tvONE 4K 1T-MV-8474 Multiviewer (Discontinued)

Availability: Call for Availability
Availability: Direct Ship
Availability: Discontinued
tvONE SKU: 1T-MV-8474
No reviews
Price:
$4,155.00

Description

Discontinued

The 1T-MV-8474 4K Multiviewer can display up to four video windows simultaneously via sixteen different fixed layouts, which can be recalled to present your content in a variety of combinations. This could vary from a straight forward Quad split, Picture-In-Picture, Triple, Side-By-Side, Full screen or something more complex with multiple layers.

The 1T-MV-8474 has seven inputs – 4x HDMI, 2x DisplayPort, 1x VGA/YPbPr supporting resolutions up to 3840x2160@30 on HDMI and 3840x2160@60 via DisplayPort. It is complimented by seven independent stereo analogue inputs which can be assigned and embedded into any of the video streams. It offers a single scaled HDMI output capable of supporting resolutions up to 3840x2160@30. A digital Toslink and eight independent de-embedded analogue channels allow you to switch audio separately from the HDMI stream allowing you to integrate 7.1 audio with external equipment. Full EDID management and audio control including delay and volume adjustments are supported through the Web interface, making it easy to integrate the 1T-MV-8474 into complex systems. Control is via a Web interface, RS232, Ethernet, Infrared remote or from the front panel buttons. Four of the buttons on front panel and the IR remote are assignable which means you can allocate specific preset configurations and easily recall them during presentations.


· Supports 4K 3840x2160@60Hz input
· Supports 4K 3840x2160@30Hz output
· 4-window layouts
· 16-preset window layouts
· Assignable front panel and remote buttons
· 7-video inputs - 4x HDMI 2x DP 1xVGA/YPbPr
· HDCP Compliant
· 4K scaling engine, supports up-scaling & down-scaling
· 8-bit / 10-bit / 12-bit Color depth
· Auto-scaling, auto-detect EDID
· Audio embedding and breakaway
· Supports 7.1 analogue and digital audio
· Volume control
· Audio delay from 0-400ms
· IR remote, RS232, Ethernet and WebGUI control
· Intuitive Web interface
· Full system control via API
· Full switching control from front panel
· 1RU rack mountable

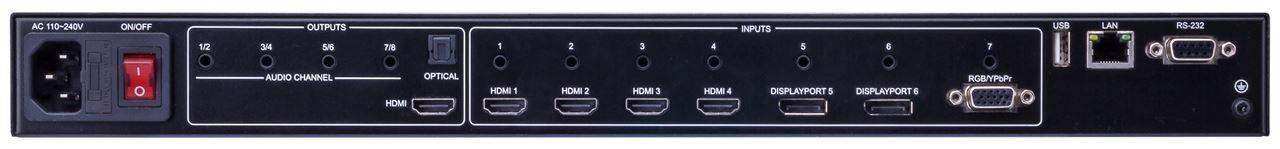

Interfaces
Input 4 x HDMI (HDMI 1.4)
2 x DisplayPort (DisplayPort 1.2)
1 x DE-15/DB-15 (VGA)
7 x 1/8" / 3.5 mm TRS (Stereo Analog)
Output 1 x HDMI
1 x TOSLINK
4 x 1/8" / 3.5 mm TRS (Stereo Analog)
Standards
HDR Compatibility None
HDCP Support None
EDID Support None
Transmission
Video Format HDMI (12-Bit 4:4:4 RGB)
1080p: 60 fps
720p: 60 fps
PC Resolutions DisplayPort: 3840 x 2160 at 30/60 Hz
HDMI: 3840 x 2160 at 24/30 Hz
VGA: 1920 x 1440 at 60 Hz
Audio Channels 7.1-Channel
Bandwidth 20 Hz to 20 kHz
Impedance 20 Kilohms
Signal Level 0.5 to 1 Vp-p (Audio)
Power
Power Connector 1 x IEC C14 Input
Power Consumption 100 to 240 VAC (15 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 90%
General
Rack Form Factor 1 RU
Certifications CE, FCC, RoHS
*as per Manufacturer
LED Indicators Yes
Material of Construction Aluminum, Steel
Dimensions 17.3 x 11.0 x 1.7" / 439.4 x 279.4 x 43.2 mm
17.3 x 11.0 x 2.0" / 439.4 x 279.4 x 50.8 mm (Including Feet)
19.0 x 11.0 x 1.7" / 482.6 x 279.4 x 43.2 mm (Including Rack Ears)
Weight 7.3 lb / 3.3 kg
Packaging Info
Package Weight 9.5 lb
Box Dimensions (LxWxH) 20.5 x 12.9 x 4.8"
