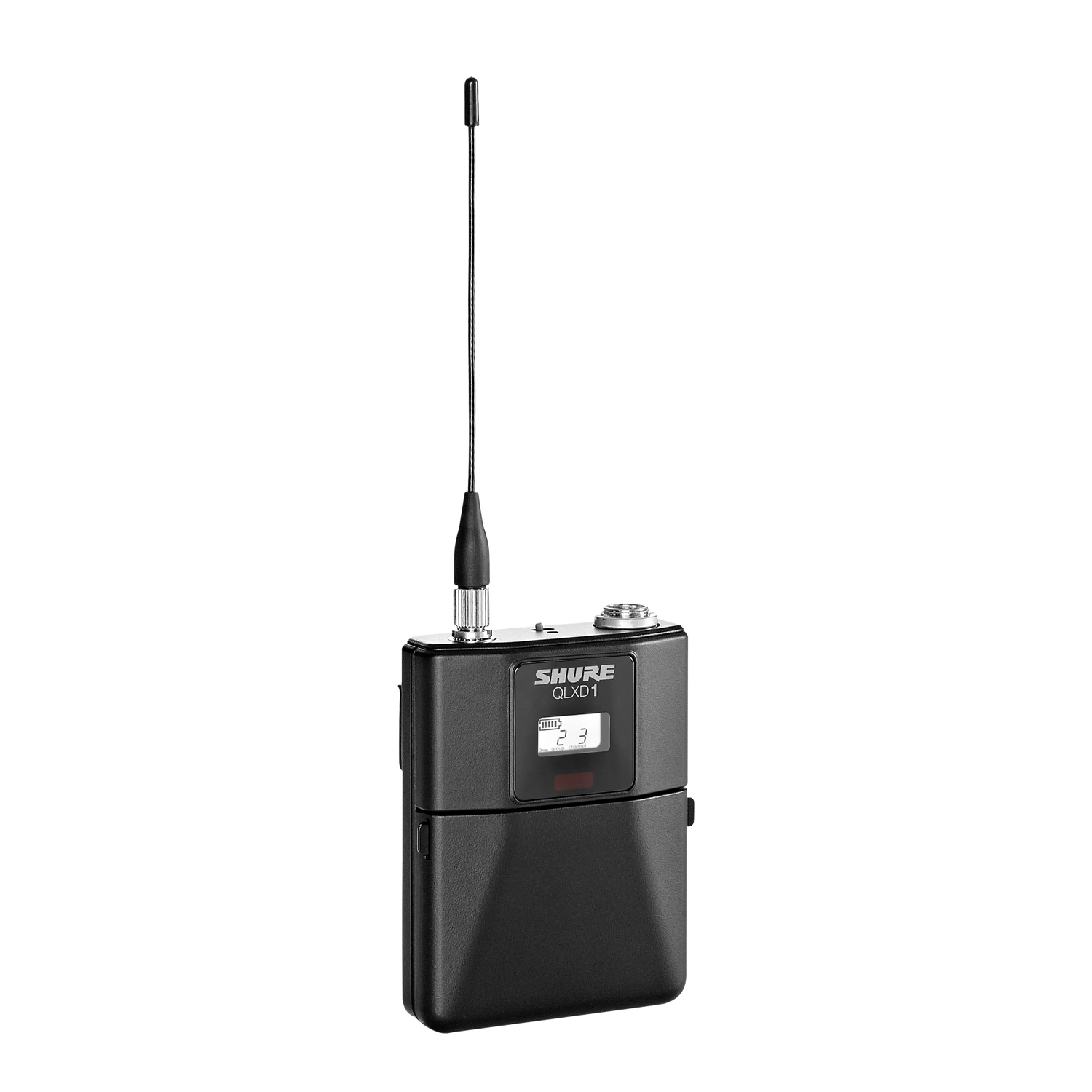

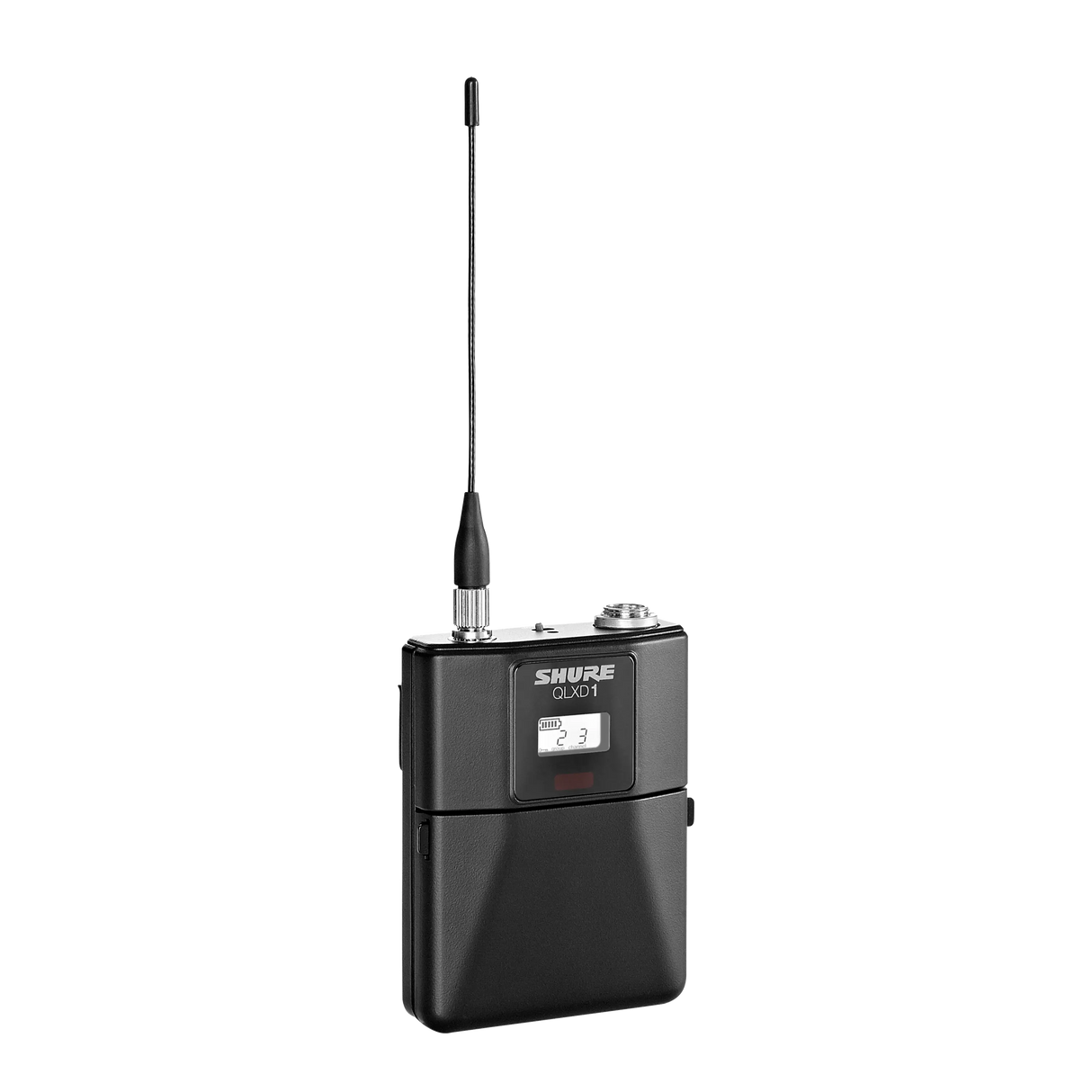

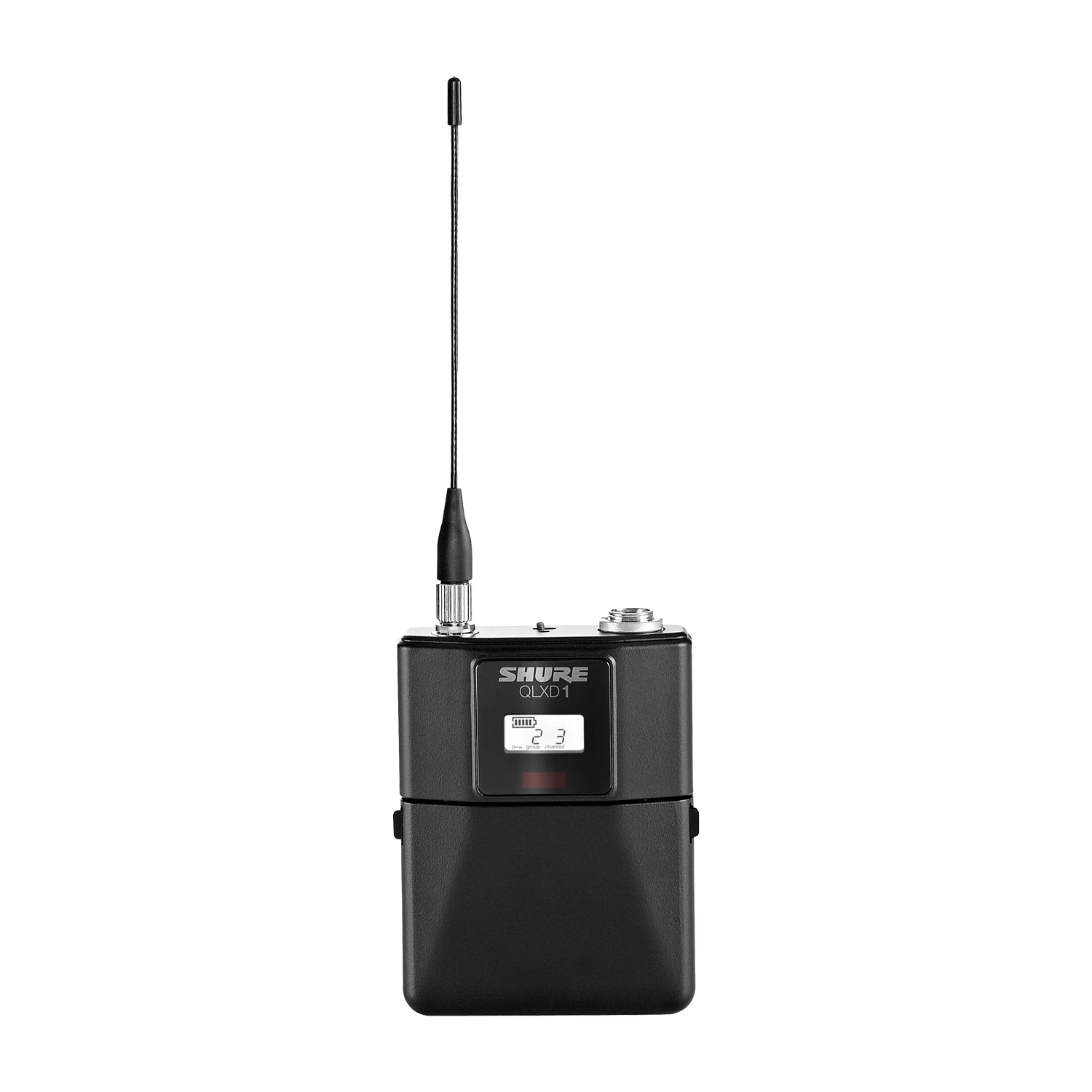

Shure QLXD1 Bodypack Transmitter

Product Overview

The Shure QLXD1 is a digital wireless bodypack transmitter for the QLX-D system, built for commercial AV installations, houses of worship, and broadcast environments. It delivers transparent 24-bit digital audio with AES-256 encryption and efficient RF spectrum usage, pairing with lavalier, headworn, and instrument microphones. As a transmitter-only component, it lets integrators expand channel count or replace a bodypack within an existing QLX-D deployment.

Product Description

The QLXD1 bodypack transmitter provides professional digital wireless performance for hands-free speech and instrument applications in conference rooms, auditoriums, training rooms, and worship spaces. It carries transparent 24-bit digital audio with AES-256 encryption, making it suitable for corporate and government spaces handling sensitive content. The rugged metal chassis houses a backlit LCD with an easy-to-navigate menu and a detachable quarter-wave antenna. The transmitter runs up to 9 hours on two AA batteries or up to 10 hours with the optional Shure SB900B lithium-ion rechargeable battery, which reports remaining runtime in hours and minutes. It maintains a clear signal over its full 100 m (330 ft) operating range and connects microphones via a 4-pin male mini (TA4M) connector. Available frequency bands include G50, H50, J50A, V50, and X52 for clean RF coordination.

Key Features

• 24-Bit Digital Audio — Transparent digital audio with efficient RF spectrum usage delivers professional wireless performance.
• AES-256 Encryption — Built-in encryption secures sensitive presentations and communications in corporate and government spaces.
• Flexible Power — Runs up to 9 hours on AA batteries or up to 10 hours with the optional SB900B lithium-ion rechargeable.
• Backlit LCD — The clear display and simple menu make setup and channel management straightforward in the field.
• Rugged Metal Construction — The durable chassis and detachable quarter-wave antenna withstand demanding installed and live use.
• TA4M Connector — The 4-pin male mini connector accepts compatible Shure lavalier, headworn, and instrument microphones.

Typical Applications

• House of worship
• Conference room
• Auditorium
• Training room
• Broadcast studio
• Government space

Technical Specifications

Frequently Asked Questions

Which system does the QLXD1 work with? The QLXD1 is part of the Shure QLX-D digital wireless platform and pairs with QLX-D receivers; match the frequency band to your receiver.

What microphones can I connect? The TA4M connector accepts compatible Shure lavalier, headworn, and instrument microphones for flexible hands-free applications.

Can I use rechargeable batteries? Yes, the optional Shure SB900B lithium-ion rechargeable battery provides up to 10 hours of runtime and reports remaining time in hours and minutes.

Is the audio encrypted? Yes, the QLXD1 supports AES-256 encryption, which is valuable for corporate boardrooms and government spaces.

Is this product covered by warranty? Yes, it is covered by the Shure manufacturer warranty. Contact Creation Networks for current warranty and support details.
