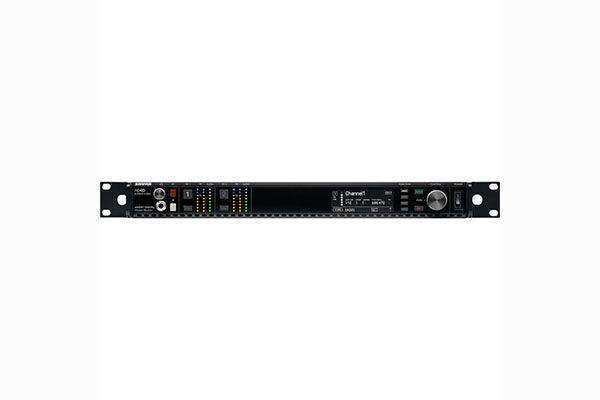

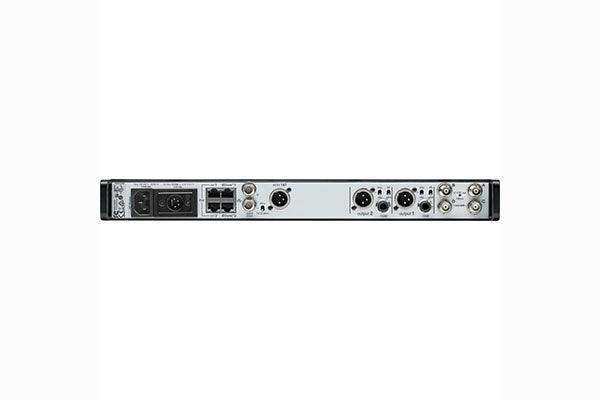

The Shure AD4D-DC is a 2-channel wireless receiver with a built-in DC power module, complete with cable and mounting accessories. The unit accepts DC power for use in broadcast production trucks, as well as AC for power redundancy.
Part of the Axient Digital system, the AD4D-DC delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution. Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.
The AD4D-DC operates in a single 166-MHz ultrawide bandwidth that encompasses the entire usable UHF range from 470 to 636 MHz. It offers low 2ms latency, XLR/AES3 + AES67/Dante outputs, and 256-bit encryption. The Dante Cue and Dante Browse features enable high-fidelity headphone monitoring from any connected Dante-enabled device.
In standard mode, Axient Digital supports over 120 simultaneous channels. For high channel counts, HD mode allows up to 47 active transmitters per 6 MHz TV channel. The receiver is compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.
- For Major Events, High-End Installations
- DC Power Module
- 2 x Digital Audio Channels, 1 Rackspace
- 166 MHz Ultrawide Tuning Range
- Expandable to 120+ Channels
- True Digital Diversity Reception
- 4 x Ethernet/Dante Ports
- XLR and AES3 Outputs
- RF Cascade Ports
- Secure AES-256 Encryption
|Wireless Technology||Digital UHF|
|Number of RF Channel Frequencies||6640|
|Diversity||True Digital Diversity|
|RF Frequency Band||A:
470 to 636 MHz
|RF Bandwidth||166 MHz|
|Frequency Step Size||25 kHz|
|Max Operating Range||328.1' / 100 m|
|Max Transmitters per Band||120|
|Latency||2 to 2.9 ms (Selectable)|
|Mounting Options||Rackmount (with Included Hardware)|
|Rackmount Size||1 RU (Full Rack)|
|Antenna||2 x 1/2 Wave External, BNC (Rear-Mount)|
|Antenna Bias Voltage||12 to 13 VDC, 150 mA (per Antenna)|
|Number of Audio Channels||2|
|Audio I/O||2 x XLR 3-Pin Male Balanced Output
1 x XLR (AES3) 3-Pin Male Output
2 x 1/4" TRS Female Balanced Output
1 x 1/4" TRS Female Headphone Output
|Gain Range||-18 to +42 dB (1 dB Steps)|
|Audio Output Level||XLR Outputs:
+18 dBV (Line Level)
-12 dBV (Mic Level)
|Frequency Response||20 Hz to 20 kHz ±1 dB (Dependent on Mic)|
|Network I/O||4 x RJ45 (1 Gb/s)|
|Network Protocols||DHCP, Dante, Manual IP|
|Word Clock I/O||1 x BNC Input
1 x BNC Through
100 Ohms (Balanced)
|Approximate RF Sensitivity||-98 dBm|
|Adjacent Channel Isolation||>70 dB|
|Spurious||Rejection: >80 dB|
|Power Requirements||AC Input, DC Input|
|AC Input Power||100 to 240 VAC, 50 / 60 Hz at 0.68 A|
|Display & Indicators||1 x Backlit LCD (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Sync)|
|Operating Temperature||0 to 122°F / -18 to 50°C|
|Storage Temperature||-20 to 149°F / -29 to 65°C|
|Dimensions||19 x 1.7 x 13.1" / 483 x 44 x 333 mm (without Mounting Hardware, Antennas)|
|Weight||10.1 lb / 4.6 kg (without Antenna)|
