Shure 565SD-LC Cardioid Dynamic, High or Low Z, On-Off Switch
Product Overview

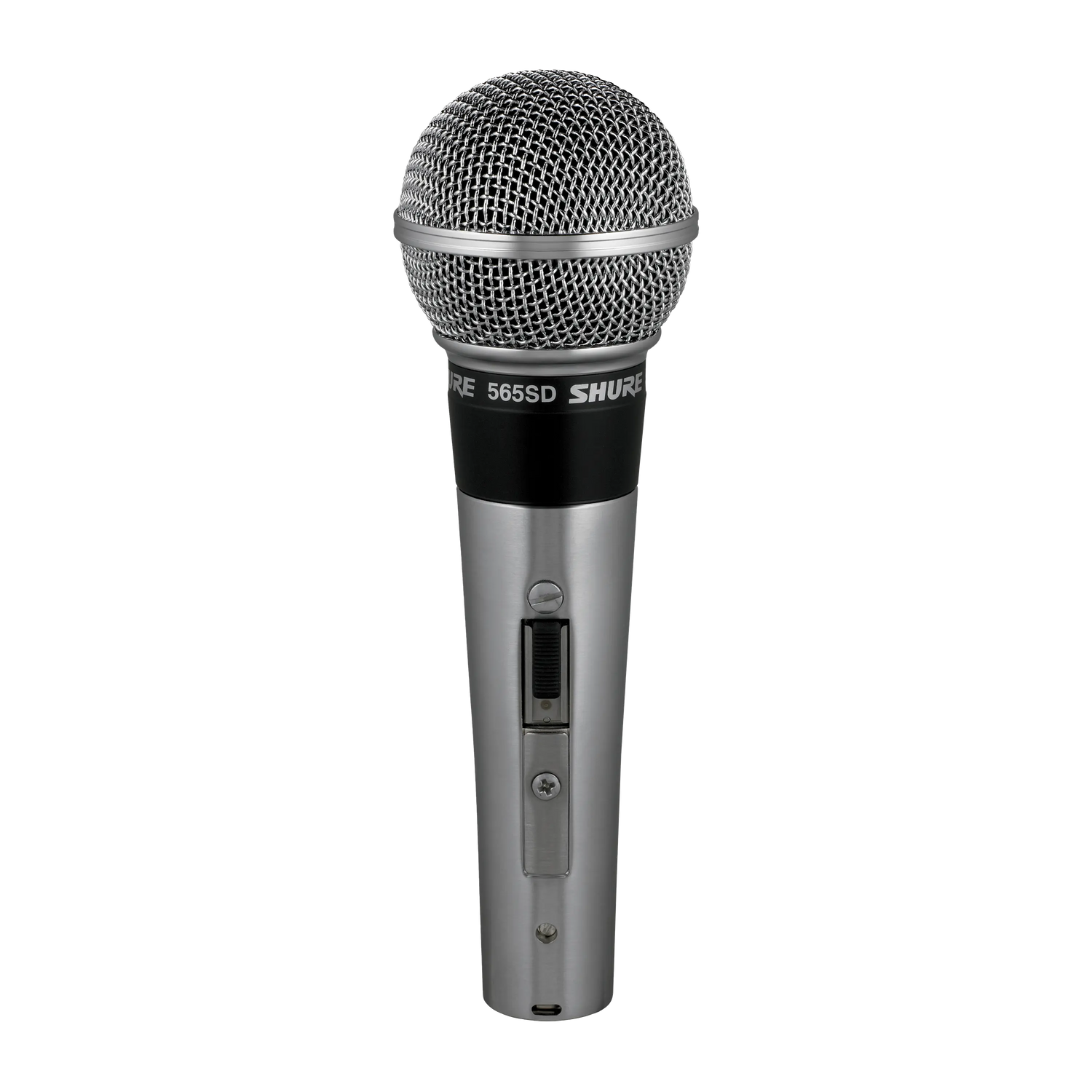

The Shure 565SD is a classic dual-impedance cardioid dynamic vocal microphone built for clear speech and vocal reproduction on stage and in installed sound systems. As the Classic Unisphere and predecessor to the SM58, it delivers proven Shure vocal performance with a wind and pop filter, a steel-mesh grille, and a silent lockable on/off switch. The 565SD is a dependable dynamic microphone for house of worship, auditorium, and presentation applications.
Product Description
The 565SD provides excellent vocal and speech reproduction in public auditoriums, churches, convention halls, and schools, making it a long-standing choice for installed and portable AV sound. A cardioid pickup pattern rejects off-axis sound to control feedback near loudspeakers, and a highly effective built-in wind and pop filter keeps vocals clean during close use. The microphone ships wired for low-impedance operation and offers selectable dual-impedance operation, so integrators can match it to long balanced cable runs or high-impedance inputs as needed. A silent, lockable on/off switch gives presenters and operators reliable local control without switching noise, and the chrome-plated die-cast housing with steel-mesh grille withstands constant use. The three-pin XLR connector integrates directly with mixers, conferencing systems, and AV signal chains. Comparable handheld dynamic vocal microphones in our catalog include the Shure SM58-LC and the Shure 55SH Series II.
Key Features
- Cardioid Dynamic Pickup — The cardioid pattern rejects off-axis sound to control feedback near loudspeakers in live and installed systems.
- Selectable Dual-Impedance Operation — Low and high impedance modes let integrators match the microphone to long cable runs or high-impedance inputs.

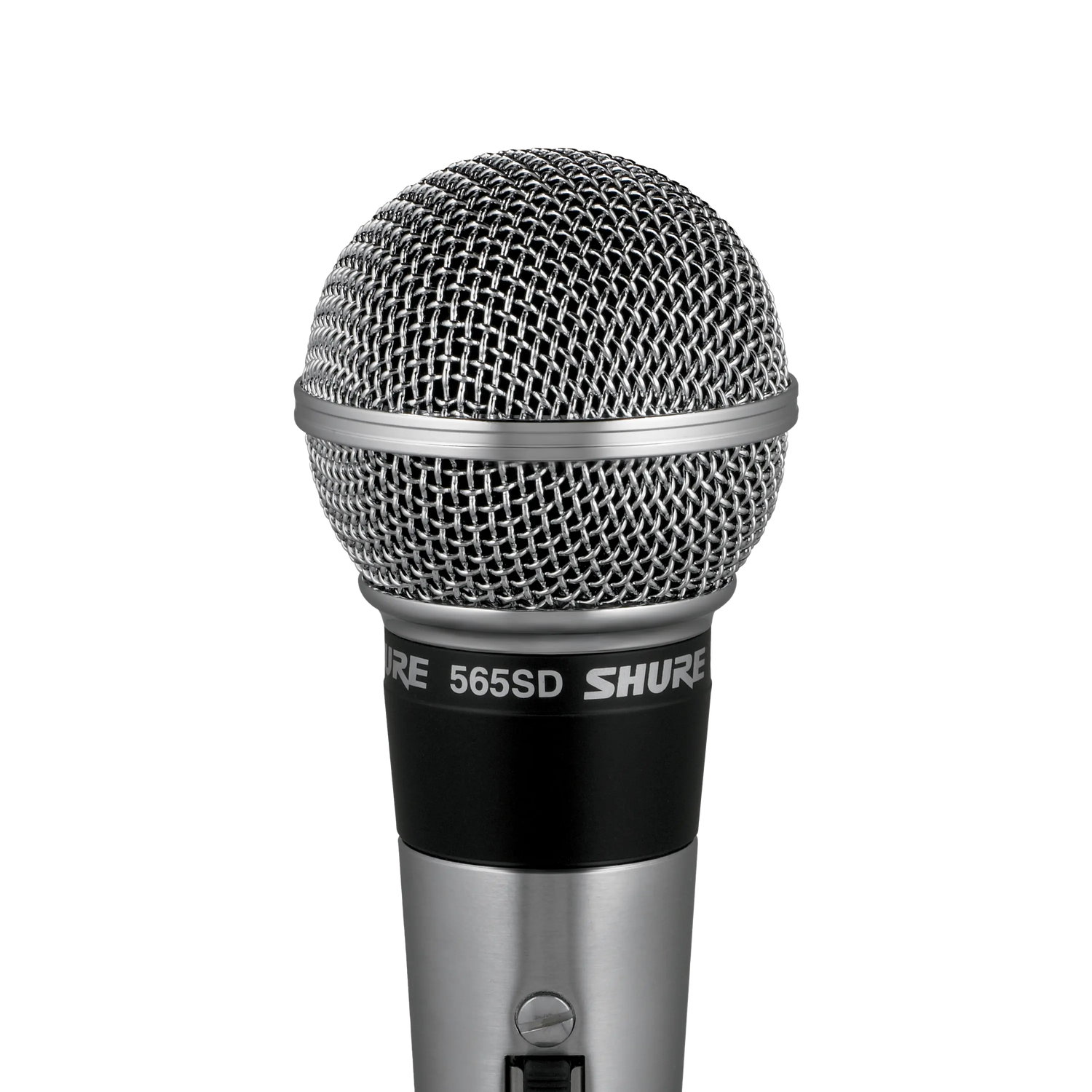

- Built-In Wind and Pop Filter — The integrated filter and steel-mesh grille reduce wind and breath noise for clean vocals.
- Silent Lockable On/Off Switch — The magnetic switch provides quiet, lockable local control for presenters and operators.
- Rugged Chrome Die-Cast Housing — The die-cast construction withstands the heavy handling of stage, worship, and rental use.
- Standard XLR Connector — The three-pin professional audio connector integrates with any mixer, DSP, or AV signal chain.
Technical Specifications
| Type | Dynamic (moving coil) |

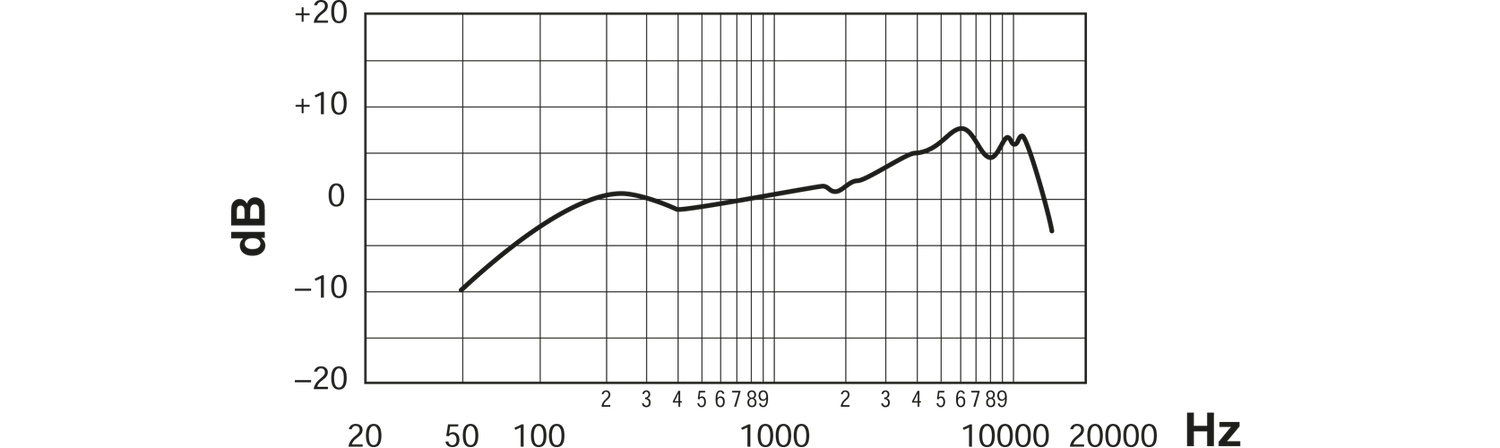

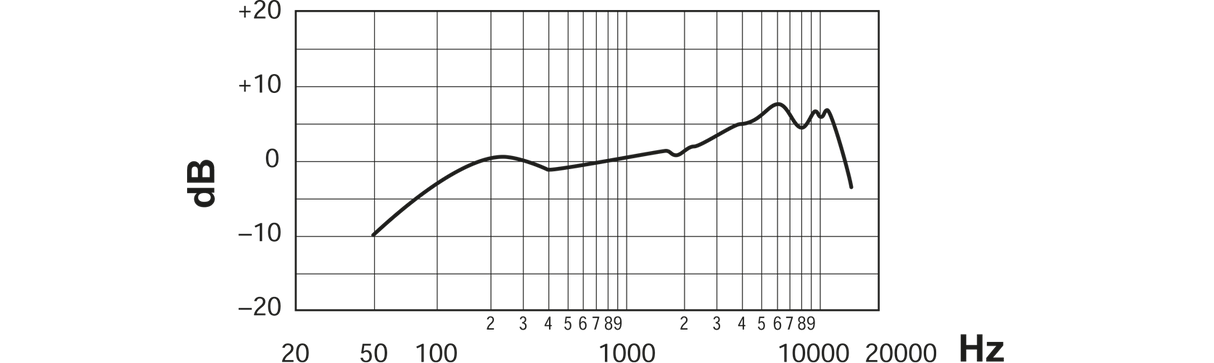

| Frequency Response | 50 to 15,000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | EIA rated 150 Ω (250 Ω actual) |
| Sensitivity (@ 1 kHz, open circuit) | Low: -56.0 dBV/Pa (1.6 mV); High: -34.0 dBV/Pa (20 mV) |
| Switch | Lockable On/Off |
| Connector | Three-pin professional audio (XLR) |
| Case | Chrome-plated die-cast with steel-mesh grille |
| Weight | 0.298 kg (0.656 lb) |
