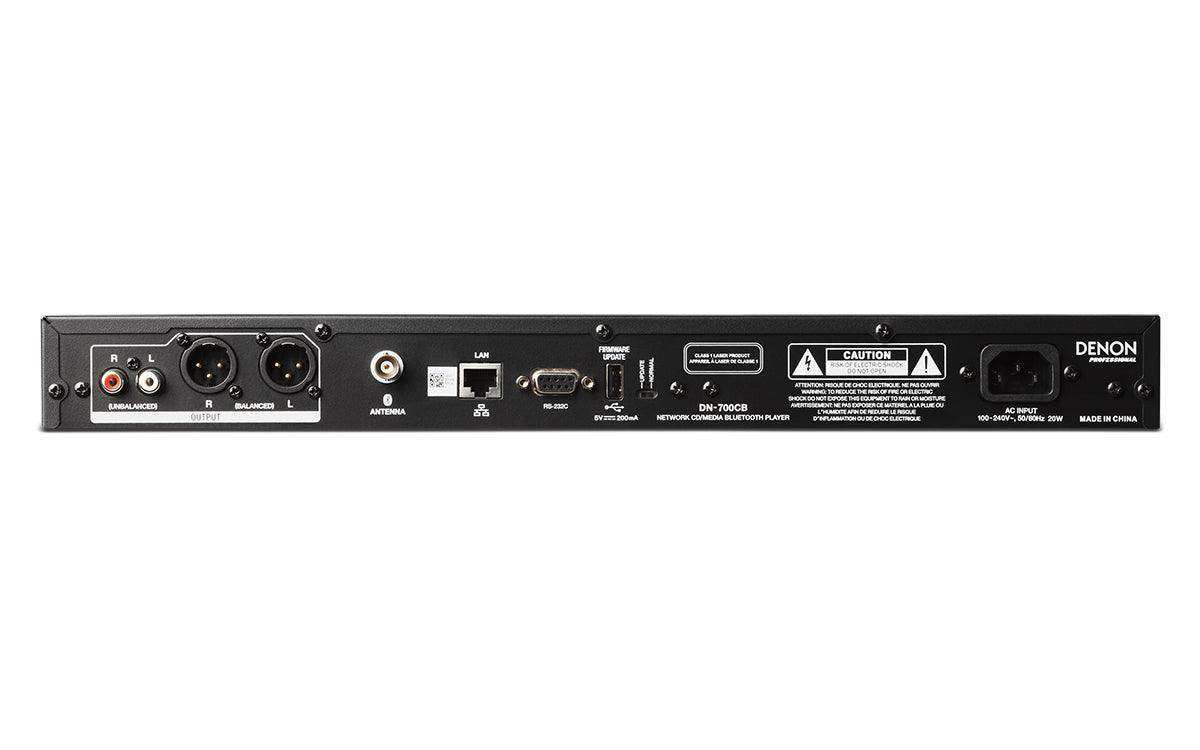

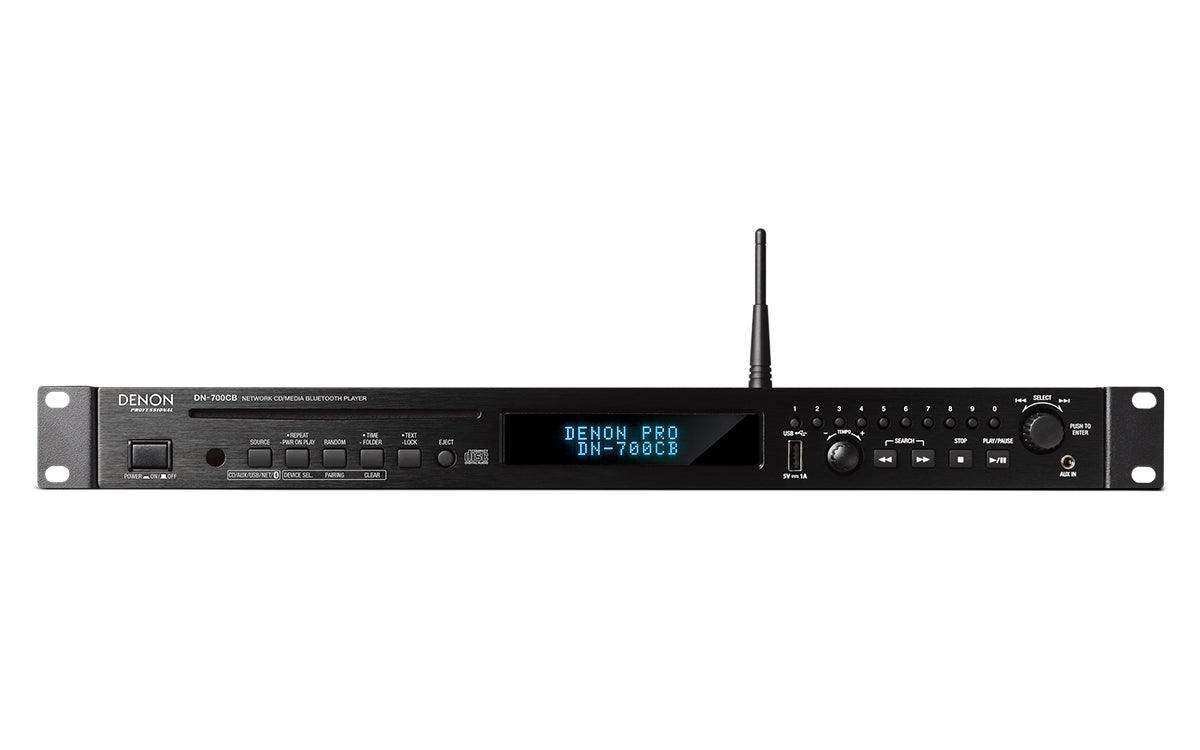

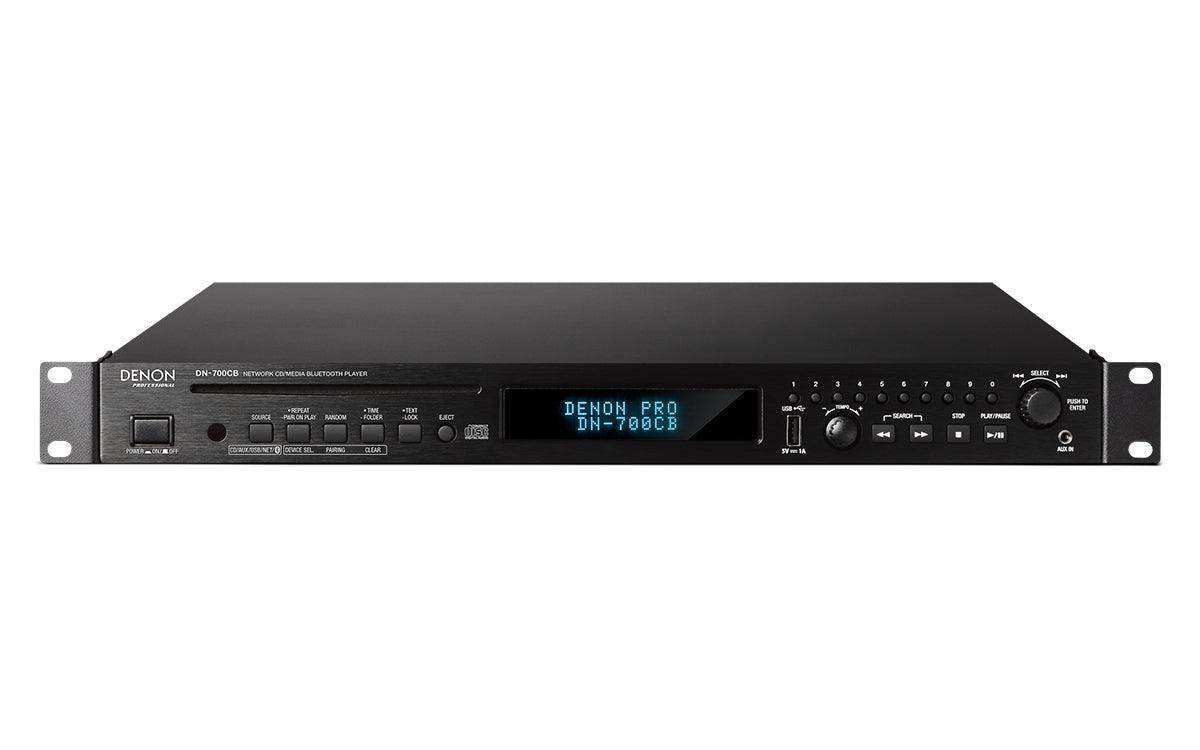

Denon Professional DN-700CB Network CD/Media Bluetooth Player with RS-232C control

The DN-700CB is a highly-versatile media player with the added functionality of RS-232C and full network control.  The DN-700CB plays files from CD, USB, Bluetooth-enabled devices and files on a local network - along with a 3.5mm AUX input for connecting external playback devices.  Perfect for retail, house-of-worship, education and hotel/conference applications, its intuitive web-based interface gives the user full control of the DN-700CB from setup menus and transport control to hot-start playback.

Features

• Media player with Network and RS-232C control
• Intuitive Web Browser and Infrared user interface
• File playback from CD, USB, Network Audio, Bluetooth and AUX
• Tempo control for CD and USB
• 10-track hot start buttons for CD, USB and NET playback
• Two Bluetooth antennas included

Specs

• System:

  • Media player

    • Compatible Media

      • CD

      • 3.5mm auxiliary device

      • Type A USB device (mass storage class)

      • Network-connected device (via Ethernet port)

      • Bluetooth audio

  • Supported Device Formats, File Systems

    • CD:

      • CD-DA, CD-ROM (ISO9660), CD-R

    • USB:

      • FAT16, FAT32

  • Supported File Formats (for CDs, USB devices and network-connected devices)

    • CD-DA:

      • Sample rate:

        • 44.1/48kHz

      • Bit rate:

        • 16/24 bit

      • File extension:

        • .cda

    • WAV:

      • Sample rate:

        • 44.1/48kHz

      • Bit rate:

        • 16/24 bit

      • Format:

        • stereo/mono

      • File extension:

        • .wav

    • MP3:

      • Sample rate:

        • 44.1kHz

      • Bit rate:

        • 32 kbps to 320 kbps, CBR and VBR

      • Format:

        • MPEG1 Audio Layer 3

      • File extension:

        • .mp3

  • Number of Channels:

    • 2 (stereo)

  • Audio Frequency Range:

    • 10 Hz - 20 kHz (± 1.0db)

  • Signal-to-Noise Ratio:

    • > 90dB (A-weighted)

  • Total Harmonic Distortion:

    • < 0.01%

  • Dynamic Range:

    • > 85dB

  • Channel Separation:

    • > 80dB

• Bluetooth

  • Bluetooth Version:

    • 4.0



  • Output Class:

    • Class 2



  • Supported Bluetooth Profiles:

    • A2DP, AVRCP (1.3/1.4)



  • Supported Bluetooth Codecs:

    • SBC, MP3



  • Bluetooth Range:

    • 82 ft. / 25 m





• Outputs

  • Analog Out L/R (unbalanced)

    • Type:

      • RCA terminal



    • Load impedance:

      • > 10 kΩ



    • Output level:

      • 2 Vrms @ 10 kΩ load





  • Analog Out L/R (balanced)

    • Type:

      • XLR



    • Load impedance:

      • > 10 kΩ



    • Output level:

      • +4 dBu







• Inputs

  • Aux in

    • Type:

      • 1/8" (3.5mm) TRS terminal



    • Input Impedance:

      • > 10 kΩ



    • Maximum input level:

      • 1 Vrms







• Remote Control

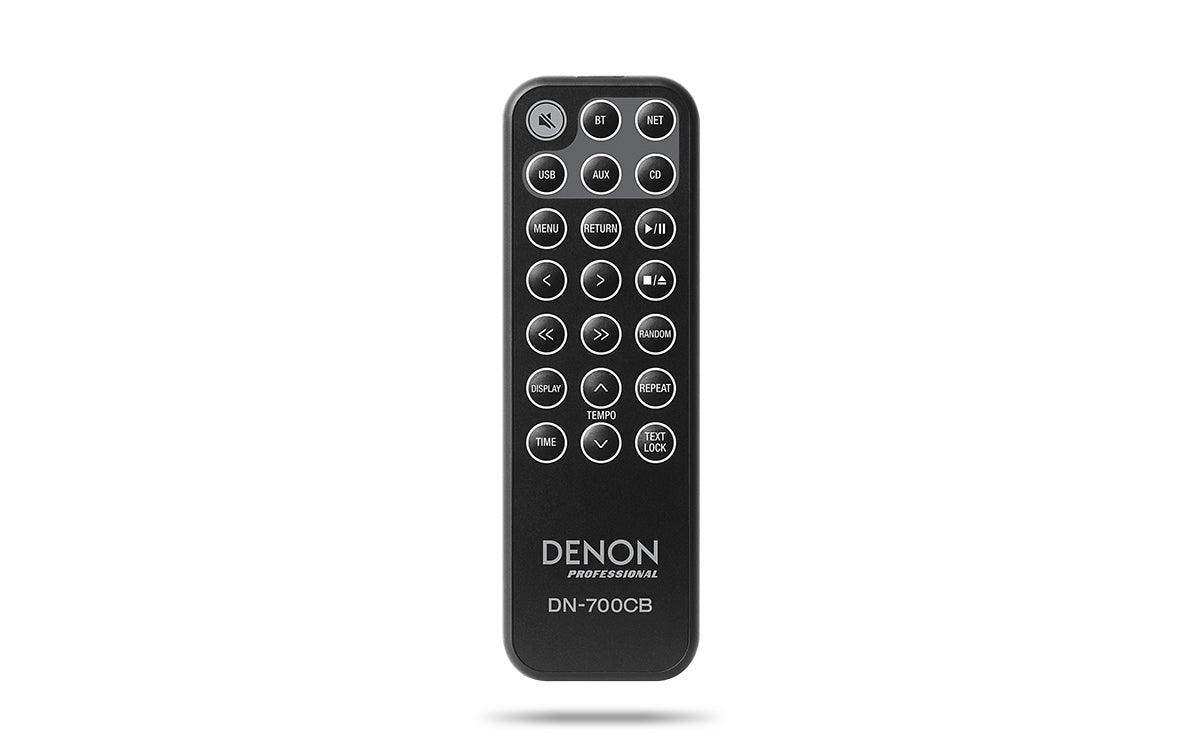

  • Included Remote

    • Infrared protocol:

      • NEC format



    • Transmit output level:

      • > 200mVp-p





  • Serial Remote (D-sub 9-pin Female; RS-232C), Not Included

    • Mode:

      • Full Duplex



    • Baud Rate:

      • 9600/38400/115200 b/s



    • Data:

      • 8 bits (Start Bit: 1 bit; Stop Bit: 1 bit)



    • Parity:

      • None; Flow Control: None





  • IP Control

    • Web API:

      • HTTP







• Other / General

  • File Folder Limits

    • Storage capacity:

      • up to 2TB



    • File size:

      • up to 2GB



    • File name length:

      • up to 255 characters



    • Number of files:

      • up to 999 (for 1 folder)



    • Number of folders:

      • up to 999 folders (including the root directory)



    • Number of folder levels:

      • up to 8 (including the root directory)



    • Folder name length:

      • up to 255 characters





  • Power:

    • 100-230 VAC, 50/60 Hz



  • Power consumption:

    • < 30W



  • Environmental Conditions

    • Operating temperature:

      • 41 - 95°F (5 -35°C)



    • Operating humidity:

      • 25 - 85%, no condensation





  • Dimensions (width x depth x height)

    • 18.98" x 1.69" x 7.87" (482 x 43 x 200mm) with rack ears
    • 16.93" x 1.69" x 7.87" (430 x 43 x 200mm) without rack ears



  • Weight:

    • 5.5 lb (2.5 kg)
