AdderLink ALAV201R-US - VGA Audio RS232 Receiver with DeSkew for Digital Signage up to 1000ft
AdderLink ALAV201R-US - VGA Audio RS232 Receiver with DeSkew for Digital Signage up to 1000ft is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
AdderLink ALAV201R-US - VGA Audio RS232 Receiver with DeSkew for Di...

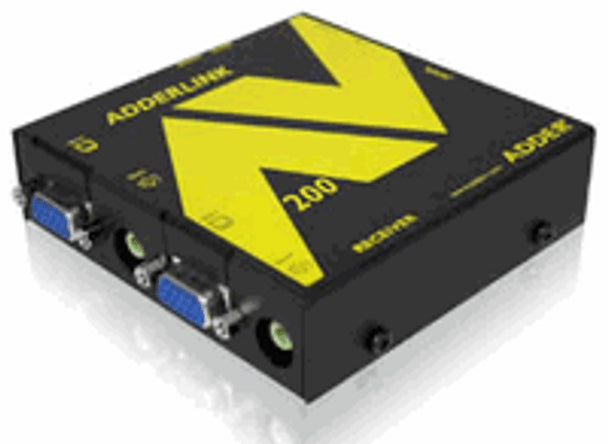

The AdderLink ALAV201R-US is a high-performance receiver unit in the AV200 series that extends crystal-clear VGA video up to 1600x1200@60Hz, CD-quality 44.1kHz digital stereo audio, and transparent RS232 serial over CATx cables up to 300m/1000ft point-to-point, enabling secure remote control and interrogation of video display panels without latency or artifacts. Key benefits include centralized media hardware placement to reduce noise and heat in controlled environments, full RS232 support for powering on/off displays and querying status via third-party systems, and integral DeSkew compensation up to 62ns for color-accurate high-res images over long runs—enhancing reliability in narrowcast digital signage by ensuring uninterrupted playback and simplified maintenance.
Constructed with a durable metal chassis (steel and stainless steel) for robust rack or desktop deployment, it measures 98mm x 95mm x 25mm and weighs 0.5kg, featuring fanless design for silent operation and optional 3U rack chassis supporting up to 16 units. Finely adjustable cable equalization dials optimize video sharpness and brightness independently, while phase-locked sampling clocks eliminate audio clicks during silent periods, powered by an efficient external 5.3V DC 2A adapter with IEC connection for global compatibility.

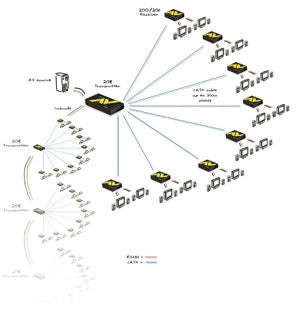

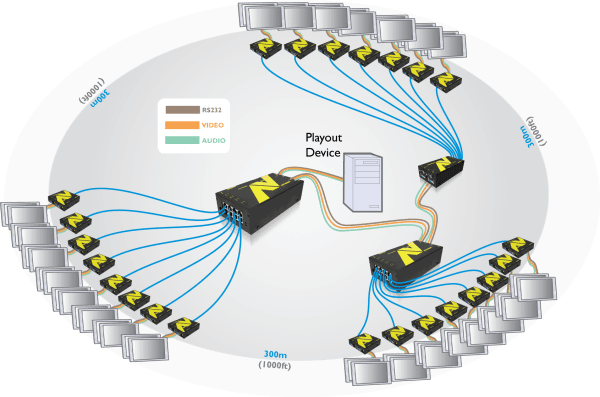

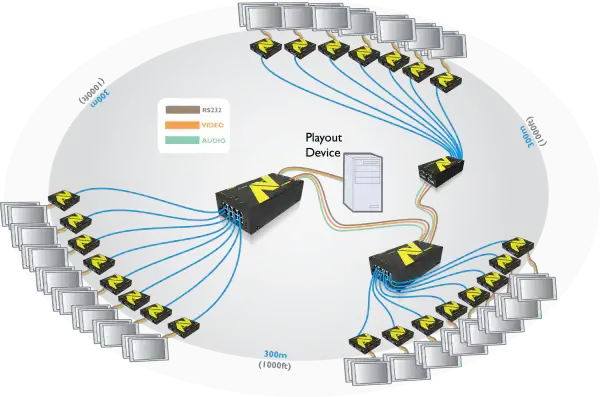

Ideal for digital signage networks, broadcast control rooms, corporate AV distributions, and retail video walls, it facilitates applications like remote VDU management, multi-display synchronization, and serial-integrated automation. Fully compatible with AdderLink AV200T transmitters, CAT5e/6/7 UTP/STP cabling, all VGA monitors (CRT/flat-panel), RS232 peripherals up to 115200 baud, and major operating systems without drivers.
Features Chart
| Feature | Benefit |
|---|---|
| Integral DeSkew Compensation | Corrects up to 62ns skew with 2ns resolution for color-accurate, artifact-free video at 1000ft |
| Transparent RS232 Serial | Enables remote control/interrogation of displays (power, volume, status) via open architecture |
| CD-Quality Digital Stereo Audio | Delivers 44.1kHz phase-locked sound without clicks or noise for immersive remote playback |

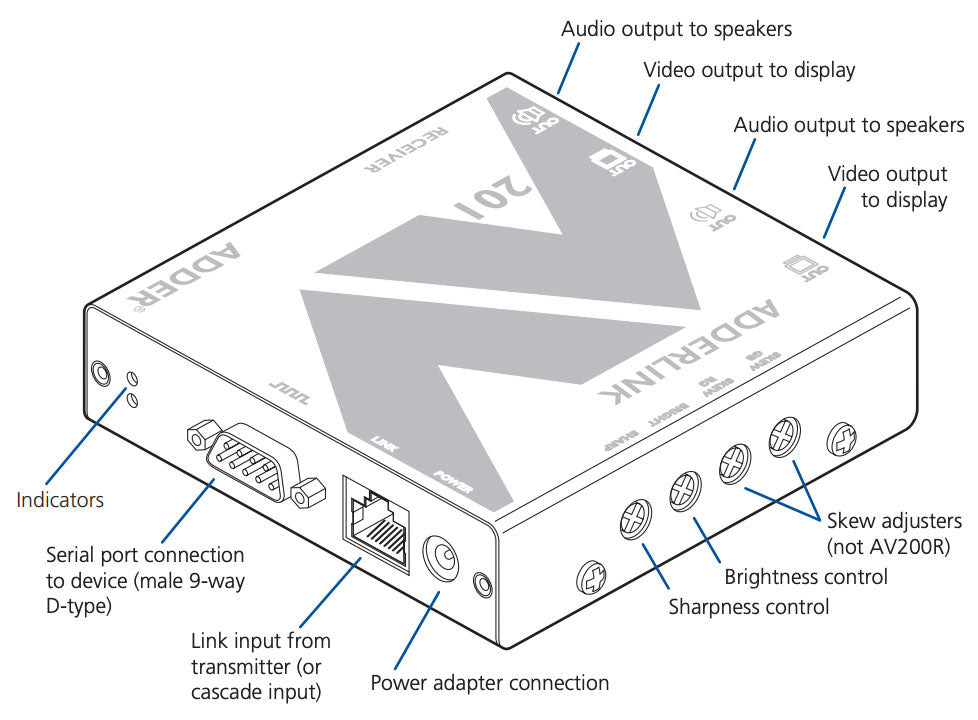

| Finely Adjustable Equalization | Independent sharpness/brightness dials ensure optimal video quality over varying cable lengths |
| Dual Video/Audio Outputs | Supports back-to-back monitors for flexible dual-display extensions in signage setups |
| Rack-Mountable Compact Design | Fits up to 16 units in 3U chassis for scalable, space-efficient large-scale installations |
| Spike Suppression & Low Noise | Protects signals in noisy environments for reliable, high-fidelity AV transmission |
| Plug-and-Play Operation | Zero configuration across all OS without software, enabling instant deployment |
Specifications Table
| Specification | Detail |
|---|---|
| Video Resolution (Max) | 1600 x 1200 @ 60Hz |
| Extension Distance (Max) | 300m / 1000ft over CAT5e/6/7 UTP/STP |
| Audio Format | 44.1kHz digital stereo, bidirectional |
| RS232 Support | Up to 115200 baud, full duplex |
| Video Outputs | 2 x HD-15 female (VGA) |
| Audio Outputs | 2 x 3.5mm stereo jacks |
| Serial Output | 1 x DB9 male (RS232); splitter for dual |
| Link Input | 1 x RJ45 |
| Power Supply | External 5.3V DC 2A (IEC, included) |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| Dimensions (W x H x D) | 98 x 25 x 95 mm / 3.9 x 1 x 3.7 in |
| Weight | 0.5 kg / 1.1 lb |
| Construction | Metal (steel/stainless steel), fanless |
| DeSkew Range | Up to 62ns with 2ns resolution |
| OS Compatibility | All major operating systems |
| Approvals | CE, FCC |
