Draper Profile+ 208" 21:9 Ultrawide Fixed Frame Screen – CineFlex White XT700V Rear Projection Surface

Product Overview

The Draper Profile+ 208 3/8-inch 21:9 Ultrawide fixed frame projection screen (part number 254294CD) pairs a panoramic ultrawide format with the CineFlex White XT700V rear projection surface. It serves boardrooms, broadcast studios, and government briefing environments that want a rear projection screen installation with smooth, even image brightness across a wide seating area. The lightweight Profile+ fixed frame installs at under 2 inches deep with a borderless or slim-bezel finish, making it a clean architectural element in commercial AV system designs.

Product Description

With a 208 3/8" diagonal in the 21:9 ultrawide projection format, this screen yields an image area of approximately 81" high by 192" wide, based on the screen's diagonal and format. That width gives AV system designers space for side-by-side content windows, wide data dashboards, and immersive scenic imagery that a single 16:9 frame cannot match. The CineFlex White XT700V is a rear projection viewing surface with a lower gain characteristic that promotes even brightness distribution and minimizes visible hotspotting from the projector lens, a common consideration in rear projection system design. Placing the projector behind the screen eliminates presenter shadows, keeps fan noise and heat out of the meeting space, and secures equipment away from occupants, which is why rear projection remains a preferred approach in studios and high-profile briefing rooms. The Profile+ platform keeps installation manageable: the screen ships unassembled for transport through elevators and corridors, assembles with Draper's sliding hook-and-loop attachment system, and can be ordered borderless or with a slim 5/8" (16 mm) bezel trim. Wall brackets are included, flown brackets are available on request, and the mullion-less frame supports zero-gap alignment in multi-screen arrays. The screen itself is passive, with no power or control wiring required. Explore other formats and surfaces in our Draper projection screen collection.

Key Features

• 208 3/8" 21:9 Ultrawide Format — Approximately 81" x 192" of image area for dual-content layouts and panoramic visuals.
• CineFlex White XT700V Rear Projection Surface — Rear projection material tuned for even brightness and reduced hotspotting across wide viewing angles.
• Shadow-Free Presentations — With the projector behind the screen, presenters never block the light path.
• Quiet Audience Space — Projector noise and heat stay in the projection cavity, not the meeting room.

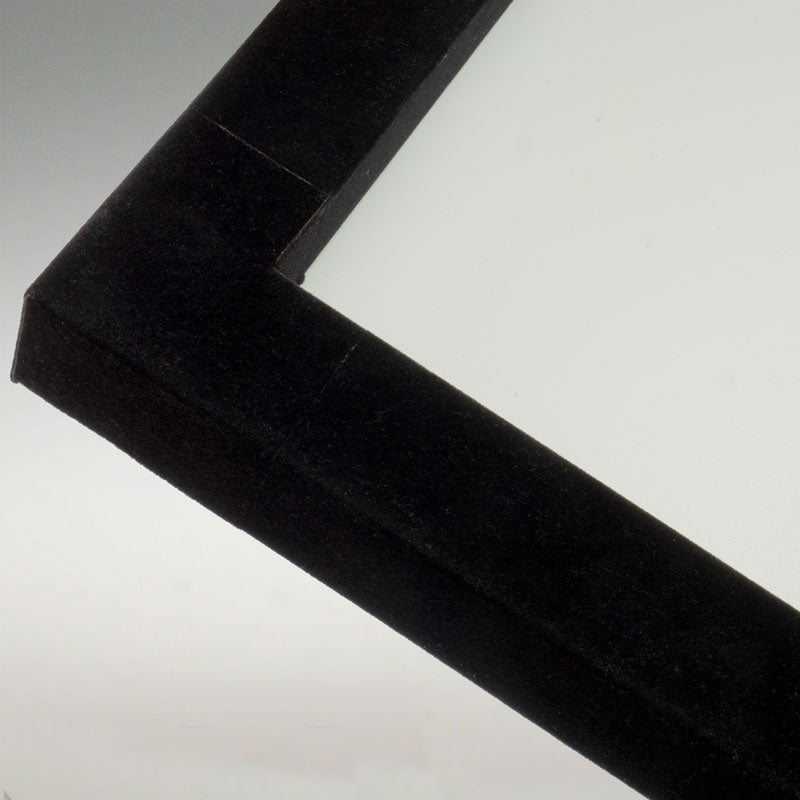

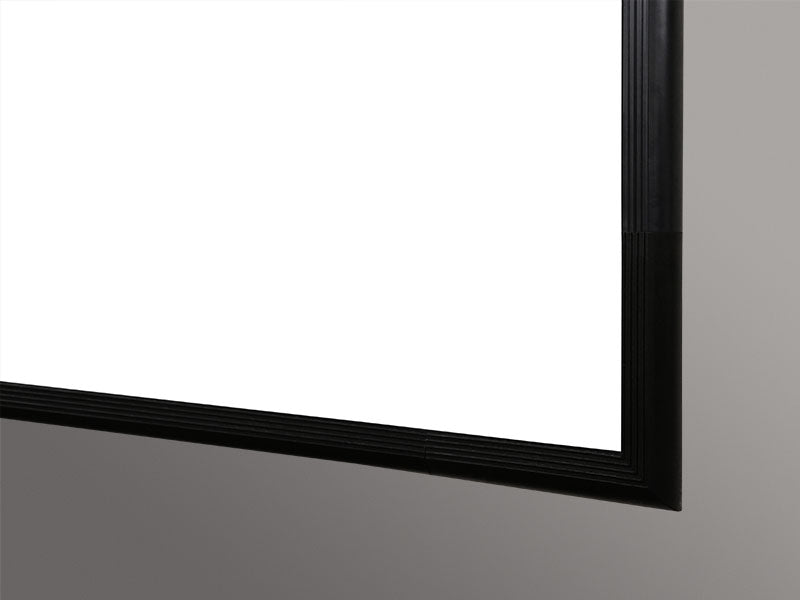

• Borderless or Slim Bezel — Specify an edge-to-edge borderless finish or a 5/8" (16 mm) bezel trim.
• Under 2" Installed Depth — Slim frame profile keeps the screen flush and architectural.
• Ships Unassembled — Eases transport to the install location; assembles on site with sliding hook-and-loop attachment.
• 5-Year Warranty — Backed by Draper's five-year warranty, valid in the United States and Canada.

Typical Applications

• Boardroom
• Broadcast studio
• Government space
• All-hands room
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

How does the XT700V differ from the CH1200V surface?
Both are CineFlex rear projection surfaces for the Profile+. The XT700V is the lower-gain option, favoring even brightness and wide viewing angles; the CH1200V (model 254294CB) trades some uniformity for higher gain. Creation Networks can recommend the right surface for your projector and room.

How much depth do I need behind the screen?
It depends on projector lens throw. Short-throw lenses or mirror-fold rigs can compress the rear projection cavity. Our team can help engineer the throw path.

Can presenters stand directly in front of this screen?
Yes. Because the projector is behind the surface, presenters cast no shadows and are never blinded by projector light.

Is this surface usable for front projection?
No. The CineFlex White XT700V is a rear projection material. For 21:9 front projection, see model 254294FB with the Grey XH600V surface.

What is involved in installation?
The screen ships unassembled, the frame assembles on site, and the surface attaches with Draper's sliding hook-and-loop system. Wall brackets are included; flown brackets are available by request. Mounting fasteners are not included.

Does the screen need power or control wiring?
No. The screen is passive; only the projector requires power, signal, and control system integration.

What warranty applies?
Draper provides a 5-year warranty valid in the United States and Canada, with pre- and post-sale support from Creation Networks.
