Draper Profile+ 260" CinemaScope 2.35:1 – Matt White XT1000V Fixed Frame Screen

Product Overview

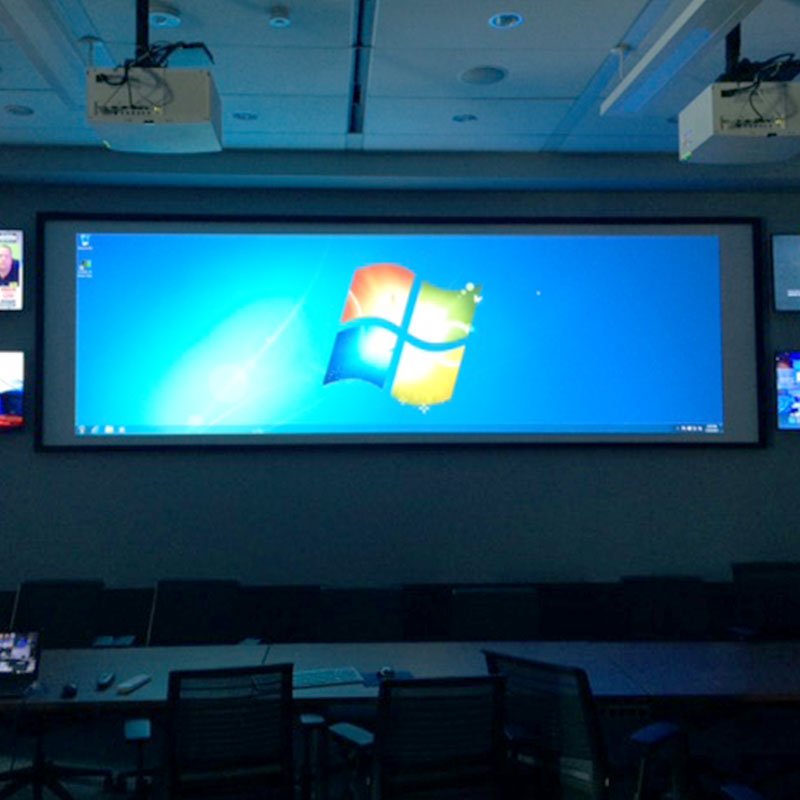

The Draper Profile+ 260" CinemaScope fixed frame projection screen delivers a 2.35:1 widescreen image measuring 101.75" x 239.25" for auditoriums, houses of worship, and large commercial venues. Built on Draper's lightweight Profile+ frame, this large venue projection screen installs at under 2" (51 mm) deep and can be specified borderless or with a slim 5/8" (16 mm) bezel trim. The Matt White XT1000V viewing surface provides a neutral, uniform image for presentations, worship media, and cinematic content. For AV integrators planning a large-format projection screen installation, the Profile+ ships unassembled for easy transport through elevators, stairways, and corridors.

Product Description

Draper part number 254278 pairs the Profile+ fixed frame with a 260" diagonal CinemaScope 2.35:1 image area, one of the largest standard sizes in the series. The frame is engineered to support large screen sizes without adding bulk, so a two-person crew can assemble and hang the screen without structural gymnastics. Sliding hook-and-loop attachments tension the viewing surface across the frame, producing the flat, taut surface that fixed frame projection screens are known for. Because there is no motor, no housing, and no control wiring, this commercial-grade screen simplifies AV system integration: there is nothing to program and nothing to power. The screen can be wall-mounted using the included wall brackets or flown from above with flown brackets available on request. Draper's mullion-less design also allows zero-gap alignment when multiple Profile+ frames are arrayed side by side for edge-blended projection. The Matt White XT1000V surface is a dependable choice for rooms with controlled lighting, rendering accurate color across a wide viewing area. At 2.35:1, the format suits cinematic worship content, immersive presentations, and wide edge-blended images in an auditorium projection screen role. Compare additional sizes and surfaces in our Draper projection screen collection.

Key Features

• 260" CinemaScope 2.35:1 Image — A 101.75" x 239.25" viewing area fills large venues with a true widescreen picture.
• Slim Sub-2" Profile — The installed depth of under 2" (51 mm) keeps the screen sleeker than most flat panel displays.

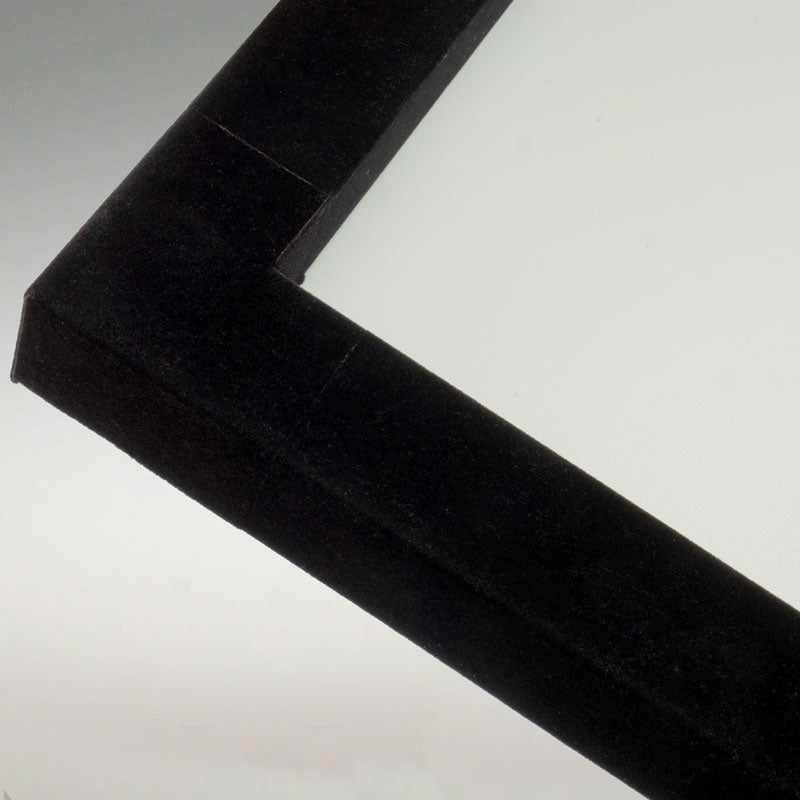

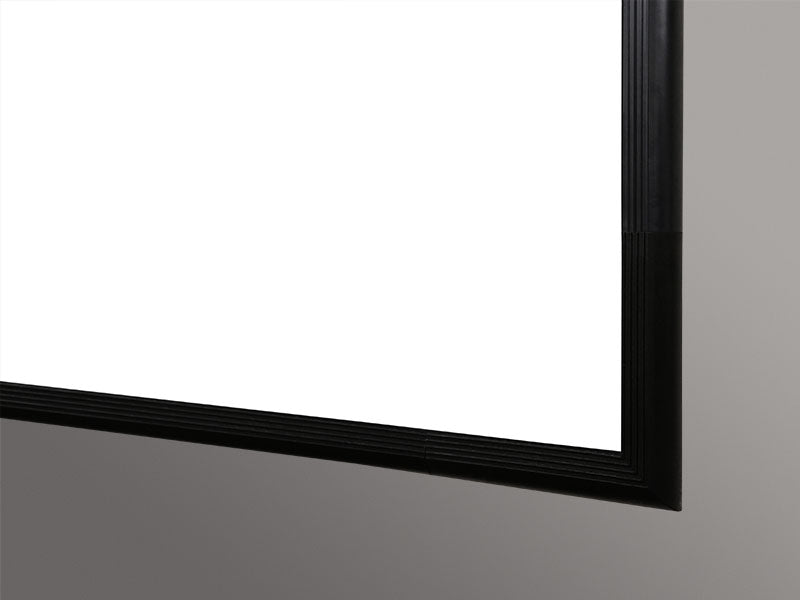

• Borderless or Bezel Trim — Choose a clean edge-to-edge look or a refined 5/8" (16 mm) bezel to frame the image.
• Matt White XT1000V Surface — A neutral matt white surface delivers uniform brightness and accurate color in light-controlled rooms.
• Lightweight Frame for Large Sizes — Draper engineered the Profile+ frame to support big images without heavy structural framing.
• Wall-Mount or Flown Installation — Wall brackets are included, and flown brackets are available on request for suspended rigging.
• Hook-and-Loop Surface Attachment — Sliding attachments make on-site surface installation and future surface replacement straightforward.
• Ships Unassembled — Compact packaging moves easily through elevators, stairways, and tight corridors to the installation point.
• Mullion-Less Array Alignment — Multiple frames can be aligned with zero gap for edge-blended multi-projector arrays.
• 5-Year Warranty — Draper backs the screen with a five-year warranty valid in the United States and Canada.

Typical Applications

• Auditorium
• House of worship
• All-hands room
• Multi-purpose room
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is this screen compatible with any projector?

Yes. As a front-projection fixed frame screen with a neutral Matt White XT1000V surface, it works with standard and high-brightness commercial projectors. Match projector lumen output and throw distance to the 260" image during system design.

Can the screen be wall-mounted and flown?

Both. Wall brackets ship with the screen, and the frame includes mounting flanges. For suspended installations, request flown brackets from Draper. Mounting fasteners are not included.

Does the screen require power or control wiring?

No. The Profile+ is a fixed frame screen with no motor, so there is no electrical or control system integration required — a practical advantage in retrofit and historic venues.

How difficult is installation?

The screen ships unassembled with a lightweight frame, and the viewing surface attaches with sliding hook-and-loop fasteners. Most integration teams can assemble and mount the screen with standard tools and a lift appropriate for the mounting height.

Can I order a different size or viewing surface?

Yes. The Profile+ series spans sizes up to 60' wide for wall mounting and offers Draper TecVision, grey, and acoustically transparent surfaces. Browse alternatives in our Draper collection or contact us for a quote on custom sizes.

What warranty and support are included?

Draper provides a 5-year warranty valid in the United States and Canada, and Creation Networks supports commercial AV buyers through product selection, ordering, and post-sale questions.
