Draper Profile+ 248" CinemaScope 2.35:1 – Matt White XT1000V Fixed Frame Screen

Product Overview

The Draper Profile+ 248" CinemaScope fixed frame projection screen presents a 2.35:1 widescreen image measuring 97" x 228" for auditoriums, houses of worship, and large commercial venues. The Matt White XT1000V viewing surface provides uniform brightness and accurate color in light-controlled rooms, making this large venue projection screen a dependable choice for cinematic and edge-blended content. Installed depth is under 2" (51 mm), finished borderless or with a slim 5/8" (16 mm) bezel trim. The lightweight frame and hook-and-loop attachment system keep this commercial projection screen installation straightforward for integration crews.

Product Description

Draper part number 254277 pairs the Profile+ fixed frame with a 248" diagonal CinemaScope 2.35:1 image area. The wide 2.35:1 format suits cinematic worship media, immersive presentations, and multi-projector edge-blended images that 16:9 screens crop or letterbox. Draper engineered the Profile+ frame to support large screen sizes without adding bulk, so the screen assembles and hangs without heavy structural framing. Sliding hook-and-loop attachments tension the Matt White XT1000V surface evenly across the frame, producing the flat image plane fixed frame projection screens are specified for. The screen wall-mounts with the included brackets or can be flown with brackets available on request, giving AV system designers flexibility over stages and platforms. With no motor or electronics, the screen adds no power, control wiring, or commissioning to the project scope. Draper's mullion-less design allows zero-gap alignment across multiple frames for blended projection arrays. The screen ships unassembled so components travel cleanly through elevators, stairways, and corridors. Browse comparable sizes and surfaces in our Draper projection screen collection.

Key Features

• 248" CinemaScope 2.35:1 Image — A 97" x 228" viewing area delivers true widescreen impact to large audiences.
• Matt White XT1000V Surface — Neutral matt white renders uniform brightness and accurate color in light-controlled rooms.
• Slim Sub-2" Profile — Under 2" (51 mm) installed depth for a clean architectural finish.

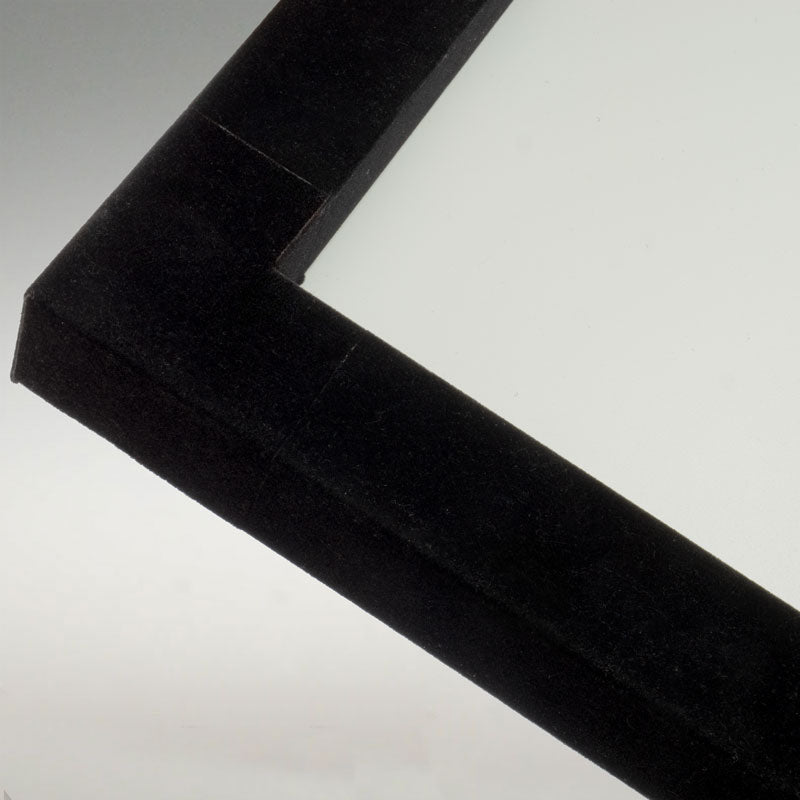

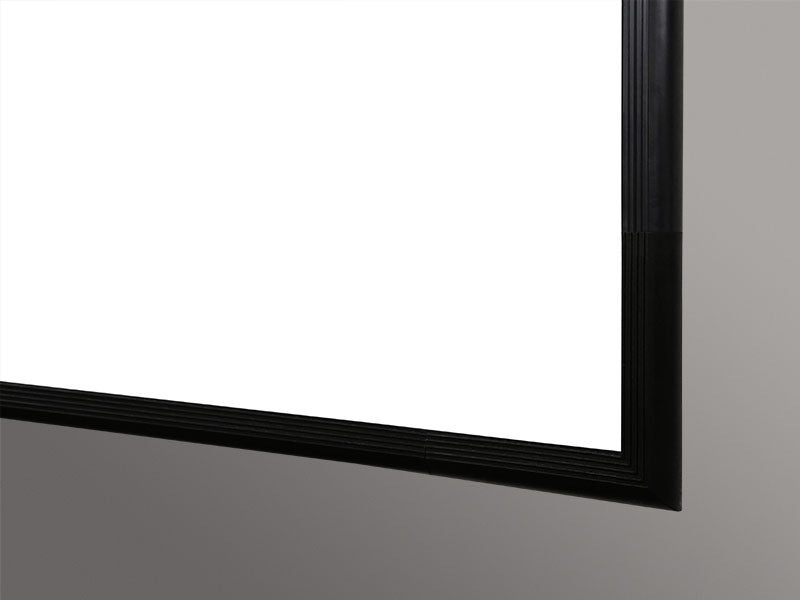

• Borderless or Bezel Trim — Choose edge-to-edge presentation or a refined 5/8" (16 mm) bezel.
• Lightweight Large-Format Frame — Supports big images while staying manageable for installation crews.
• Wall-Mount or Flown — Wall brackets included; flown brackets available on request.
• No Power or Control Required — Fixed frame design integrates without electrical or control scope.
• Hook-and-Loop Surface Attachment — Simplifies assembly and future surface replacement.
• Mullion-Less Array Alignment — Zero-gap alignment supports edge-blended multi-projector designs.
• 5-Year Warranty — Draper warranty valid in the United States and Canada.

Typical Applications

• Auditorium
• House of worship
• All-hands room
• Multi-purpose room
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What content formats fit a 2.35:1 screen?

CinemaScope 2.35:1 is built for cinematic media, environmental worship visuals, and wide edge-blended images. Standard 16:9 content can be displayed pillarboxed, or you can choose a 16:9 Profile+ variant from our Draper collection if HD video is your primary format.

Is the Matt White XT1000V surface right for my room?

Matt white is the standard choice for rooms with controlled lighting, providing uniform brightness and accurate color. For spaces with persistent ambient light, consider the Grey XH600V Profile+ variants.

Can the screen be installed flown over a stage?

Yes. Request flown brackets from Draper for suspended installations; wall brackets ship standard. Mounting fasteners are not included.

Does the screen require any wiring?

No. The Profile+ is a fixed frame screen with no motor — no power circuit, no low-voltage control, and nothing to program in the control system.

How is the screen shipped and assembled?

It ships unassembled in compact cartons. The lightweight frame assembles on site, and sliding hook-and-loop fasteners tension the surface evenly.

What warranty and support are included?

Draper provides a 5-year warranty valid in the U.S. and Canada, and Creation Networks supports commercial AV buyers from specification through post-sale service.
