Draper Profile+ 230" 2.35:1 ClearSound NanoPerf XT1000V – Acoustically Transparent Fixed Frame Screen

Product Overview

The Draper Profile+ 230" acoustically transparent projection screen (part number 254276SC) delivers a 90" x 211.5" CinemaScope 2.35:1 image on a ClearSound NanoPerf XT1000V surface, so loudspeakers can be concealed directly behind the picture. This fixed frame projection screen is built for houses of worship, auditoriums, and performance venues where the audio system and the image need to occupy the same real estate on the front wall. The lightweight Profile+ frame finishes at under 2 inches deep with a borderless or slim bezel option, keeping the installation clean even at this scale.

Product Description

The SC suffix on the 254276SC denotes Draper's ClearSound NanoPerf XT1000V viewing surface — a matt white, 1.0 gain surface with microscopic perforations that pass sound from loudspeakers placed behind the screen. Placing the left-center-right array behind an acoustically transparent projection screen anchors vocals and program audio to the image, a standard technique in worship AV design and screening rooms, and it frees the front wall of visible speaker cabinets. The NanoPerf perforation pattern is fine enough to stay invisible at normal viewing distances, so image quality holds across the full 230 inch diagonal. The ultrawide 2.35:1 format also gives AV system designers a panoramic canvas for environmental visuals, lyric and scripture display alongside IMAG, or multi-window presentation layouts. The Profile+ frame itself is engineered for large formats while staying lightweight: it installs at less than 2" (51 mm) deep, can be finished borderless or with a 5/8" (16 mm) bezel trim, and uses Draper's sliding hook-and-loop system to tension the surface evenly. The screen ships unassembled for easier transport through stairs, elevators, and corridors, with wall brackets included as standard and flown brackets available from Draper on request for suspended installations. Compare additional acoustically transparent and large venue options in the Draper collection at creationnetworks.net/collections/draper.

Key Features

• 230" Diagonal CinemaScope Image — Provides a 90" x 211.5" 2.35:1 viewing area for panoramic worship and presentation content.
• ClearSound NanoPerf XT1000V Surface — Acoustically transparent matt white surface allows behind-screen loudspeaker placement.
• 1.0 Gain Matt White Imaging — Neutral color reproduction with a wide viewing cone across distributed seating.
• Invisible Perforation Pattern — NanoPerf micro-perforations are not visible at typical commercial viewing distances.

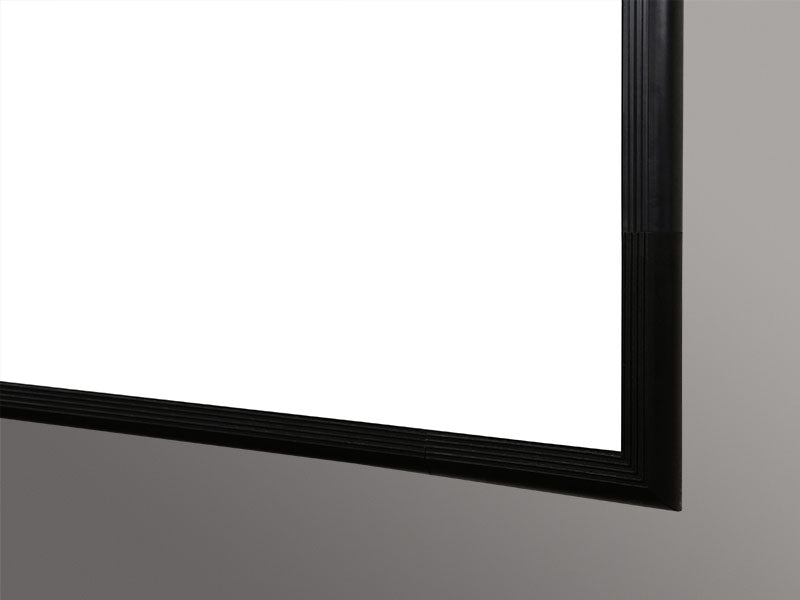

• Sub-2" Installed Depth — Lightweight Profile+ frame finishes at less than 2" (51 mm) deep on the wall.

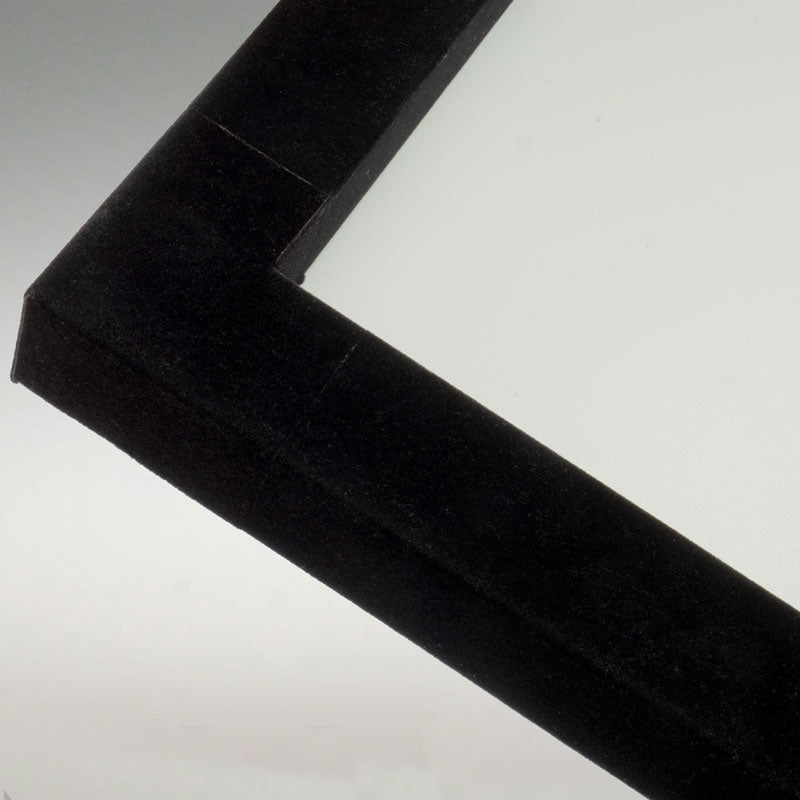

• Borderless or Bezel Finish — Order borderless or with a 5/8" (16 mm) bezel trim to match the venue design.
• Wall-Mount or Flown Installation — Wall brackets ship standard; flown brackets are available on request.
• Ships Unassembled — Cartoned components simplify delivery into finished buildings before on-site assembly.
• 5-Year Manufacturer Warranty — Backed by Draper's five-year warranty in the United States and Canada.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What is an acoustically transparent projection screen?
It is a screen whose surface passes sound, allowing loudspeakers to be mounted behind the image. The ClearSound NanoPerf XT1000V uses microscopic perforations to achieve this while presenting a continuous matt white picture to the audience.

Why would a church or auditorium choose this configuration?
Behind-screen speaker placement anchors vocals to the image, clears the front wall of visible cabinets, and lets the 2.35:1 panoramic format carry environmental visuals, lyrics, and IMAG on one surface.

Do the perforations affect image quality?
At normal commercial viewing distances the NanoPerf pattern is invisible and the surface performs as a 1.0 gain matt white screen with neutral color and a wide viewing cone.

Can the 254276SC be flown?
Yes. It supports wall-mount and flown installation; wall brackets are included and flown brackets must be requested from Draper. Mounting fasteners are not included.

What should integrators plan for behind the screen?
Allow depth for the loudspeaker array and a small air gap behind the surface, and plan minor high-frequency equalization per the loudspeaker manufacturer's guidance for perforated screens.

Is any control wiring required?
No. A fixed frame screen has no motors or electronics, so it integrates into any front-projection AV system without programming or low-voltage wiring.

What warranty and support apply?
Draper covers the screen with a 5-year warranty in the US and Canada, and Creation Networks supports commercial buyers through surface selection, sizing, and after-sale questions.
