Draper Profile+ 233" CinemaScope 2.39:1 Fixed Frame Screen – Matt White XT1000VB Widescreen Cinema Format

Product Overview

The Draper Profile+ 233-inch CinemaScope fixed frame projection screen (part number 254276) delivers a 2.39:1 widescreen image roughly 7.5 feet tall and 18 feet wide for screening rooms, auditoriums, and premium presentation spaces. As a large format CinemaScope projection screen, it presents native scope cinema content without letterbox bars, and its Matt White XT1000VB surface holds accurate color across a wide viewing cone. The lightweight Profile+ fixed frame installs at under 2 inches deep with a borderless or slim-bezel finish, giving commercial AV integrators a clean, architectural widescreen installation.

Product Description

Draper's Profile+ series pairs a lightweight fixed frame with larger-than-typical screen sizes, and the 254276 applies that platform to the CinemaScope 2.39:1 format with an approximately 90" x 215" viewable image. That makes it a strong specification for executive screening rooms, post-production review spaces, houses of worship, and auditorium projection systems standardizing on widescreen cinema content. The Matt White XT1000VB viewing surface is Draper's standard diffusing white material, delivering neutral color reproduction and consistent brightness for wide seating layouts. For installers, the screen ships unassembled to ease transport through elevators, stairways, and corridors, and the sliding hook-and-loop attachment system makes on-site surface assembly fast and repeatable. The frame can be finished borderless for an edge-to-edge look or with a slim 5/8" (16 mm) bezel trim, and the installed depth stays under 2 inches (51 mm) either way. Wall brackets are included for standard installation, and the screen can also be flown with optional flown brackets for suspended commercial deployments. With no motor, power, or control wiring, this fixed frame projection screen simplifies AV system integration and reduces install time on commercial projects. See related sizes and viewing surfaces in our Draper projection screen collection.

Key Features

• 233" CinemaScope 2.39:1 Image — Approximately 90" x 215" viewable area presents native widescreen cinema content at full frame.
• Matt White XT1000VB Surface — Draper's standard diffusing white surface delivers neutral color and a wide viewing cone for broad audiences.

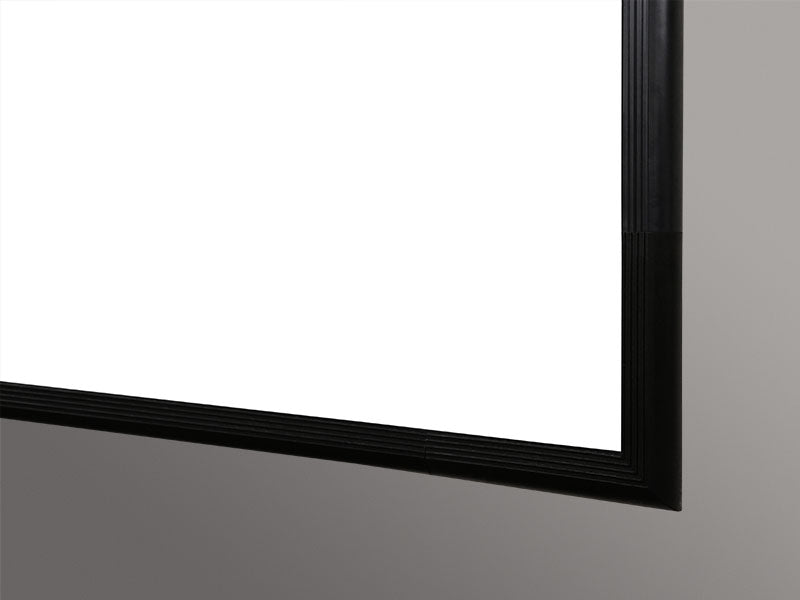

• Borderless or Slim Bezel — Specify a clean borderless edge or a 5/8" (16 mm) bezel trim to suit the room design.
• Under 2" Installed Depth — Slim wall profile keeps the installation flush and architectural.
• Ships Unassembled — Simplifies transport through elevators, stairways, and tight corridors on commercial job sites.
• Hook-and-Loop Surface Attachment — Sliding attachment system speeds on-site assembly and keeps the surface evenly tensioned.
• Wall-Mount or Flown — Wall brackets included; flown brackets available on request for suspended installations.
• 5-Year Warranty — Covered by Draper's five-year warranty, valid in the United States and Canada.

Typical Applications

• Auditorium
• House of worship
• Boardroom
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Why choose a 2.39:1 CinemaScope screen over 16:9?
If your primary content is scope-format cinema or you want an immersive widescreen presentation, a native 2.39:1 screen uses the full surface without letterbox bars. For mixed corporate content, a 16:9 Profile+ model may be a better fit.

What projector setup does a CinemaScope screen require?
Any projector that can output or be masked to a 2.39:1 image works, including zoom-method and anamorphic-lens configurations. Creation Networks can help match projector brightness and lens throw to this screen size.

Can the 254276 be flown instead of wall-mounted?
Yes. The Profile+ supports wall or flown installation. Wall brackets ship standard; request flown brackets at the time of order. Mounting fasteners are not included.

How difficult is assembly on site?
The screen ships unassembled for easier building access, and the frame plus sliding hook-and-loop surface attachment is designed for fast assembly by an AV installation crew.

Does this screen need power or control integration?
No. It is a passive fixed frame screen with no motor or wiring, so it adds no load to the control system or electrical plan.

What warranty applies?
Draper backs the Profile+ with a 5-year warranty valid in the United States and Canada, and Creation Networks supports the product before and after the sale.
